1:16 Fiber Optic Plc Splitter Box, Optical Fiber Splitter Module g657a2 Corning Fiber Cable
1:16 Fiber Optic Plc Splitter Box, Optical Fiber Splitter Module g657a2 Corning Fiber Cable
PLC splitter is made by lithography, corrosion, developing production technology,
use semiconductor process. Fiber array is on the surface of optical chip, split function
is integrated in the chip, that is to achieve 1:1 split on a chip; then coupling respectively
coupled input end and an output end multi channel fiber array of the chip and packaged.
Application
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Specification
1 x N splitter (for example)
|
Split ratio |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
1x128 |
|
|
Operating Wavelength(nm) |
1260-1620nm |
|||||||
|
Fiber Type |
G657A1 or customer specified |
|||||||
|
Insertion Loss (dB)P Grade |
3.8 |
7.1 |
10.2 |
13.5 |
16.5 |
20.5 |
23.8 |
|
|
Insertion Loss (dB) S Grade |
4 |
7.3 |
10.5 |
13.7 |
16.9 |
21 |
24.2 |
|
|
Loss Uniformity(dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2 |
2.5 |
|
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
|
|
Return Loss (dB) |
55 |
|||||||
|
Directivity (dB) |
55 |
|||||||
|
Wavelength Dependent |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Loss(dB) |
|
|
|
|
|
|
|
|
|
Temperature Stability (-40- +85℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Operating Temperature |
-40- +85℃ |
|||||||
|
Storage Temperature |
-40- +85℃ |
|||||||
Features
- Good channel-to-channel uniformity
- High Stability & Reliability
- Low Insertion loss&PDL
- Compact Design

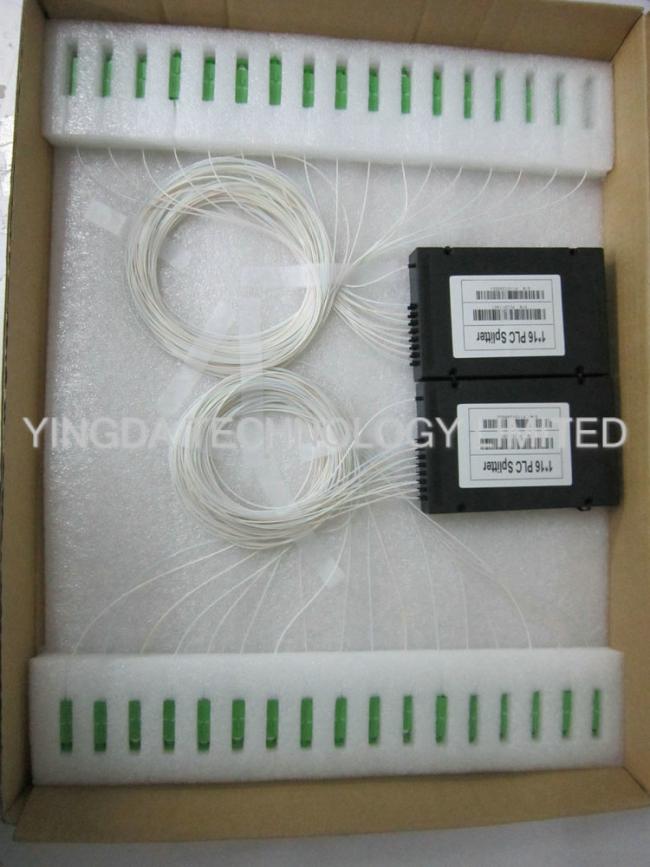

Pack information:

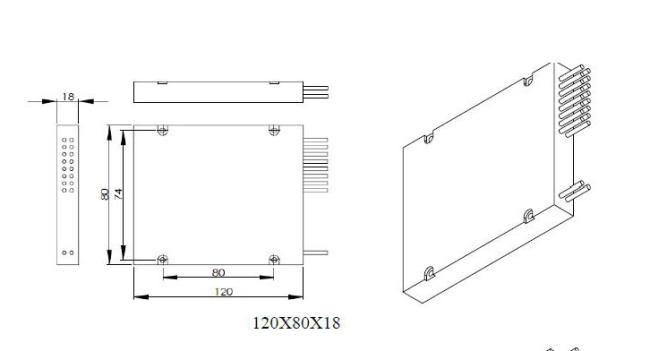

- ABS plastic box size:120*80*18 mm (middle size)
![]()
- 1PC / carton box
- 100% test report
