OM3 10G MTP MPO Cable 7.8mm Ferrule SC 900um , Multi Fiber Optic Pigtails
OM3 10G MTP MPO Cable 7.8mm Ferrule, 12 Multi-Fiber Fiber Optic Pigtails SC 900um
MPO (Multi-fiber Push On) generally is MT series connectors. MT series ferrule end face
connect precisely through the 2pcs 0.7mm guide pins and guide holes at both sides.MPO
can have 2-12 Core design,maximum 24 Cores.At present, most use 8Fibers and 12 Fibers
connectors. MPO connector is compact size,multi-fiber,small, widely applied to high density
integrated optical line environment in the routing process.
Application
- FTTH, FTTX
- 40/100G connected SFP, SFP+ transceiver inside the equipment.
- Telecommunication
- CATV, LAN network
- Fiber oiptic sensors
- Optical transmission system
- Test equipment
MPO MTP connector spare parts
YINGDA have many years experience in production management, can provide a variety of MPO truck cable, harness cable, fanout cable with break-out kits (round or square 2-24 Cores 0.9mm, 2.0mm fan-out ), ribbon cable, bunchy cable, etc. All products conforms to Telcordia-GR-326, IEC standards and ROHS requirements.

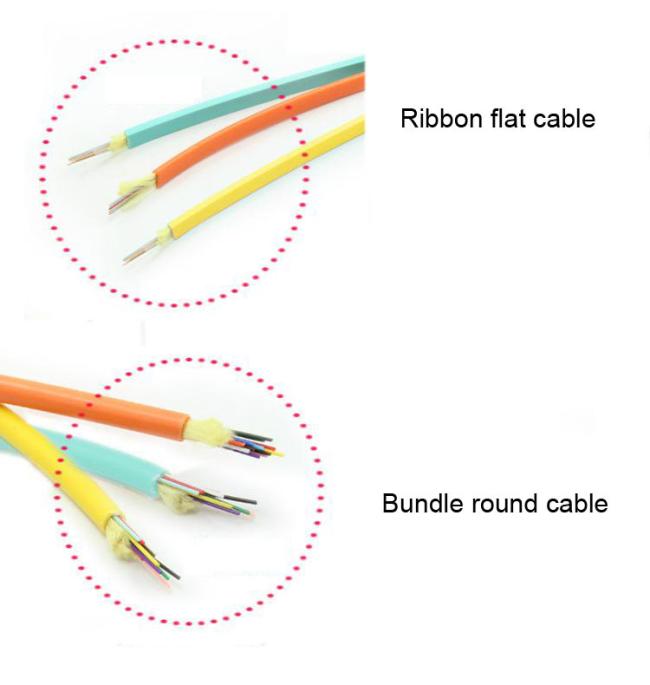

Fiber optic multi-fiber cable two types:
Order information
|
P/N |
Description |
|
MPOm-12SC-OM3 |
MPO Fan-out patch cord, OM3 (50/125um), MPO Male-12x SC UPC 1m Orange |
|
MPOm-62SC-OM3 |
MPO Fan-out patch cord, OM3 (50/125um), MPO Male-6xDuplex SC UPC 1m Orange |
|
MPOm-62SC-OM3-U |
MPO Fan-out patch cord, OM3 (50/125um), MPO Male-6xDuplex SC UPC 1m Orange uni-boot |
