4 Core Copper Aluminum Waterproof Fiber Optic Pigtails SC FC 9.8mm Military Ruggerized Cable PE
4 Core Copper Aluminum Waterproof Fiber Optic Pigtails SC FC APC 9.8mm Military Ruggerized Cable PE
Waterproof fiber pigtail/Patch cord can be used in harsh environment. It is mainly used in outdoor connection of the optical transmitter. Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.
Optical Connector Specification
| Parameter | Unit | Water-proof fiber pigtail /Patch cord | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| sInsertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥35 |
| Operating wavelength | nm | 1310, 1550 | |||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating temperature | ℃ | -40~75 | |||
| Storage temperature | ℃ | -45~85 | |||
| Inner Cord diameter | mm | φ3.0,φ2.0,φ0.9 | |||
| Fiber cores | Cores | 4, 6, 8, 12, 24, … fibers | |||
| Applicable connector | FC, SC, ST, MU, LC | ||||
| Waterproof connector material | Aluminum or copper optional. | ||||
| Geometric dimension of end face |
Radius of curvature: 10-25 (PC / UPC), 5-12 (APC) Vertex offset: 0-50um Optical fiber depression: - 100 ~ + 100nm |
||||
| Standards | NTT, TELCORDIA, IEC ITU, UL94-V0 | ||||

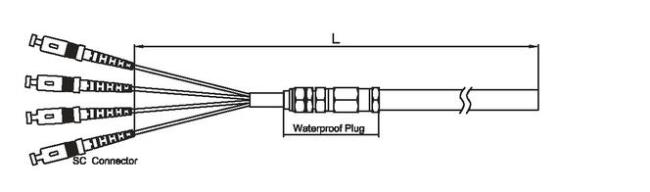

Cable structure
Waterproof cable use one or more single-core fiber optic cable around a central strength member to strand, the longitudinally wrap plastic composite tape,outside squeeze cable jacket.
Features
- Waterproof tape around the package, goog at water blocking, suitable for outdoor harsh environments
- High strength steel to enhance tensile strength, good ground performance

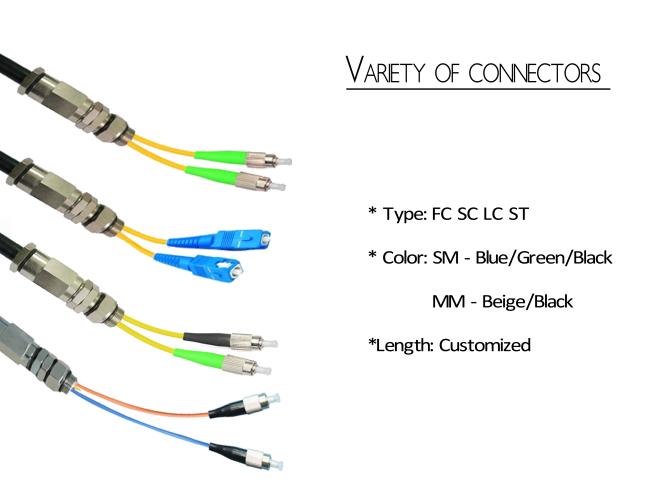

- Easy to install, simple and reliable, suitable for various connectors SC FC LC ST,etc
- Fiber core: 2, 4, 6, 8,12 optional
- Low insertion loss, high return loss, excellent exchange-ability, high stability
- The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction.
Application
- Optical fiber CATV network
- Optical fiber LANs
- Data and telecommunication system
- Main line cable and fiber optical receiver connection
Mechanical technical:
| Fiber Core | outer dia. (mm) | weight (kg/km) | max.tension (N) | Min. bend radius (mm) | ||
| short term | long term | installation | working | |||
| <6core | 9.8 | 80 | 1000 | 300 | 20D | 10D |
| 11.8 | 110 | 1000 | 300 | 20D | 10D | |
| Storage Temp.℃ | -40～+70 | |||||
| Operating Temp. ℃ | -20～+70 | |||||
Transmission Technical:
| Wavelength | 850/1300nm | 1310/1550nm | ||
| Fiber type | multimode fiber | G.652 | G.655 | |
| Core/coating dia. | 50/125um | 62.5/125um | / | / |
| Attenuation (dB/km) | ≤3.0/1.0 | ≤3.5/1.5 | ≤0.4/0.25 | ≤-/0.5 |
| Bandwidth (MHz·km) | ≥200/400 | ≥160/200 | / | / |
Order information
| YDPG | - | Connector type side A | Connector type side B | - | Cable diameter | Fiber count | - | Fiber type | Cable length |
|
YD=yingda PG=Pigtail PC=patch cord |
SCU=SC/UPC SCA=SC/APC FCU=FC/UPC FCA=FC/APC ... Xxx=null |
SCU=SC/UPC SCA=SC/APC FCU=FC/UPC FCA=FC/APC ... Xxx=null |
98=9.8mm 11=11.8mm |
02=2core 04=4core 06=6core |
2D=G652D A1=G657A1 A2=G657A2 M1=OM1 M2=OM2 M3=OM3 M4=OM4 |
001=1meter 002=2meter ... 015=15meter 120=120meter ... |
