ODF Bunchy Fiber Optic Pigtail 4 Cores LSZH 0.9MM Yellow , Single Mode Pigtail
ODF Bunchy Pigtail FC / APC 4 Cores LSZH 0.9MM yellow, FC Fiber Optic Pigtail
Description

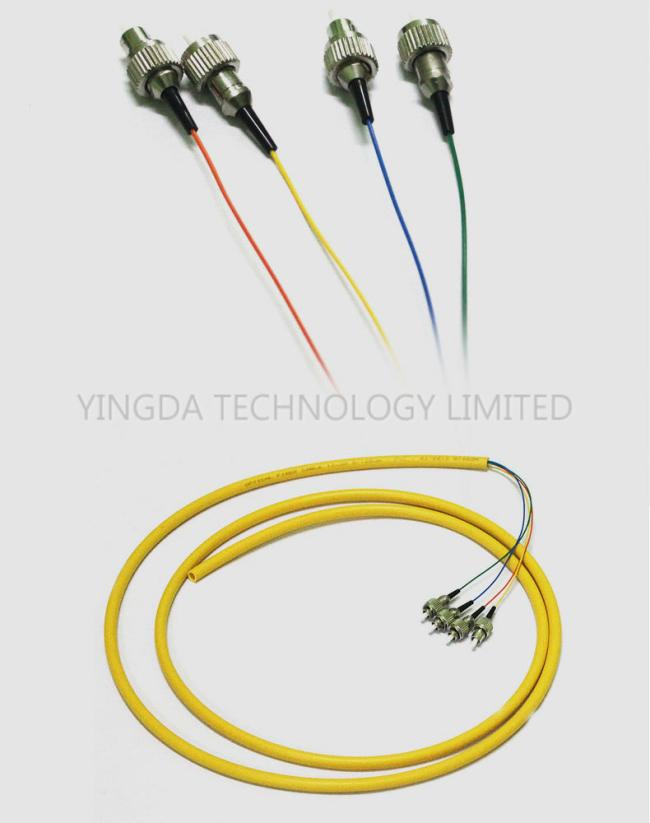

Bunchy pigtail, also called fiber optic bundle pigtail, only one end has connector, the other end
is a fiber cable which is cut off, it is connected with the other fiber core by fusion, often appear
in the optical fiber terminal box to connect the cable and terminal equipment.
It mainly have two types: single mode bunchy pigtails or multi-mode pigtails.
FC connector outer is metal strength,most use in ODF distribution frame of Telecom network,
it has a nut to fix on the adapter,can be stable and dust-proof, but installation time will be
a little longer.
Sell point:
- 100% test in factory before delivery
- Low insertion loss, high return loss
- Pre-terminated all kinds of connectors
- OEM or customer label acceptable

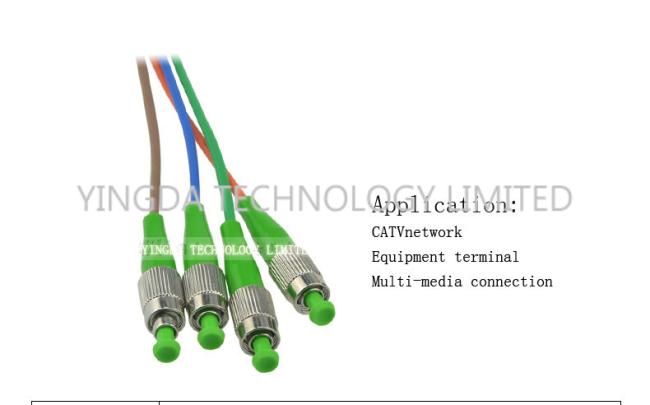

Application
- CATV network
- LAN network
- Fiber Access network
- Telecommunications
- Gigabit Data Network test
- Medical instruments
- Industry and Army use
Features
- Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
- Fiber transmission active connection
- Low insertion loss, high return loss
- Good changeability and repeatability
- Mostly used inside frame connection, simple, convenient and economical
- Easy to install, small size, large capacity.
- Jumper diameters: 2.0mm, 0.9mm.
- Optical Indicators:
- PC insertion Loss ≤ 0.2dB ; reflection attenuation ≥ 50dB;
- APC insertion loss ≤ 0.2dB ; Return Loss ≥ 60dB
- Fiber count: 4 core 6 core 8 core, 10 core, 12 core.
- Fan out fibers have a special tube protection from twisting off or injury,
- and good bending properties.
- Can use connectors like: FC / PC, FC / APC, SC / PC, SC / APC, ST / PC, etc
Optical Characteristics
|
Cable diameter |
φ0.9mm, φ2.0mm, φ3.0mm |
|
Insertion loss |
≤0.2dB |
|
Return loss |
PC≥40dB,UPC≥50dB,APC≥60dB |
|
Interchange ability test |
≤0.2dB |
|
Mating times |
>1000 times |
|
Repeat ability |
≤0.1dB |
|
Vibration test |
≤0.1dB(10-60Hz,1.5mm Full amplitude) |
|
Tensile strength: |
0~15Kg |
|
temperature cycling test |
≤0.2dB (-40℃~+85℃,after 5times recycle) |
|
Low temperature test |
≤0.2dB(-40℃,last 100 hours) |
|
High temperature test |
≤0.2dB (+85℃,last 100 hours) |
|
Tensile test |
≤0.1dB(0-15Hg tensile,φ0.9mm fiber exception) |
|
Temperature test |
≤0.2dB(+25℃~+65℃, relative humidity 93%, after 100hours) |
Order information
FC fiber optic connector
- Polish method: PC UPC APC
- Fiber count: 2core, 4core, 6core, 8core, 12 core, etc
- Fiber type: G652D, G657A, G657A2, G655
- Cable type: OS1 SM, MM OM1, OM2, OM3 10G, OM4,etc
- Cable length: 1meter, 2meter, 3meter,.... Etc

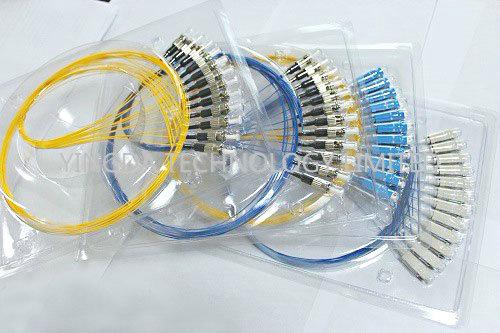

- Package: Blister box, plastic bag, paper bubble bag
