LC / PC Fiber Optic Patch Cord Pigtail 62.5 / 125um MM , Fiber Optical LC Pigtail

Price Negotiable

Price: 0.16USD-19.9USD

MOQ: 500 pcs

Delivery Time: 7days after payment

Brand: YINGDA

Product Description

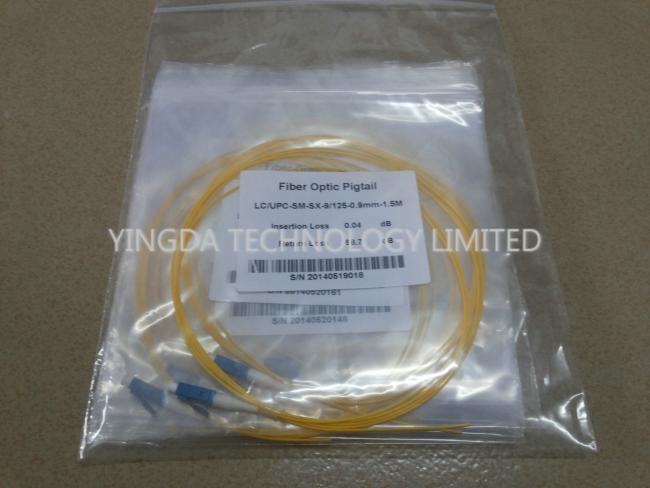

Fiber Optic Patch Cord Pigtail LC / PC, Fiber Optical LC Pigtail 62.5/125um MM

FC/ UPC Fiber Optic pigtail has connector at one end, the other end is fiber optic cable which

be cut off.Then it connect by splice with other cable core. It is widely used in fiber optic terminal

box, ODF rack , cabinet to connect with fiber optic media converter/transceivers( also use coupler,

patch cord too)

Single mode pigtail color is yellow, wavelength: 310nm and 1550nm, their transmission distance:

10km and 40km each.

Features

Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
Fiber transmission active connection
Low insertion loss, high return loss
Good changeability and repeatability
Mostly used inside frame connection, simple, convenient and economical
Easy to install, small size, large capacity.

Application

Medical instruments
Industry and Army use
CATV network
LAN network
Fiber Access network
Telecommunications
Gigabit Data Network test

1.Technical Data

NO.	Item	Unit	Single Mode			Multi-Mode
1	Insertion Loss	dB	≤0.2	≤0.3		≤0.3
2	Return Loss	dB	≥50/UPC	≥45/PC	≥65/APC	≥35/PC
3	Repeatability	dB	0.1
4	Working Times	Times	≥1000
5	Operating Temperature	°C	-40-85
6	Optical Cable Diameter	mm	Φ0.9	Φ2.0		Φ3.0

2. Polish Data

Item	PC Polishing		APC Polishing
Ferrule Diameter(mm)	2.5	1.25	2.5	1.25
Radius of Cury(mm)	10 ~25	7~25	5~15
Fiber Height(nm)	-100~50		±50
Apex Offset(um)	±50		±50

Ordering Information:

LC/ PC MM 62.5/125 SIMPLEX 0.9mm–2M PVC

① ② ③ ④ ⑤ ⑥ ⑦

① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH

LC Pigtails MM Duplex Cable ZIpcord with Clip:
