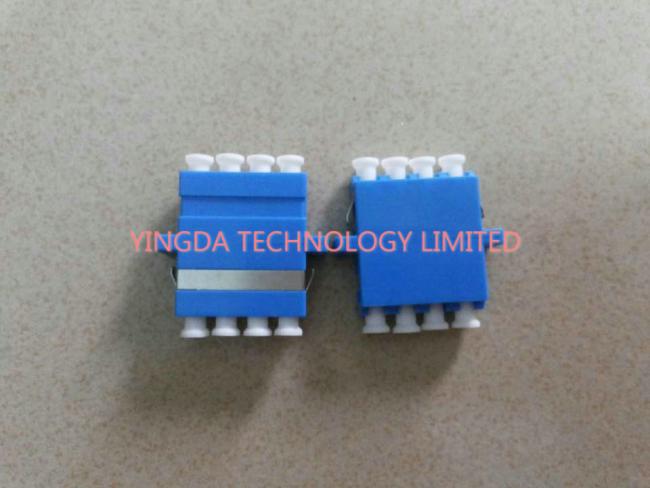

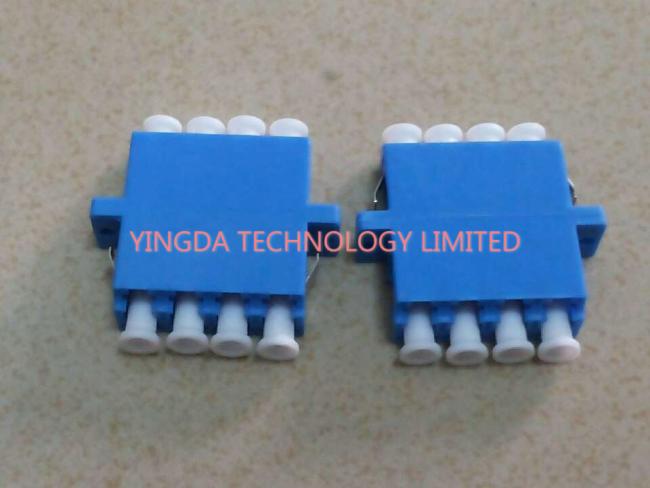

FTTH CATV LC/PC Fiber Optic Adapter 4 Way Blue , SM / MM LC Optical Adapter
Fiber Optic Adapter LC 4Way Blue, LC Optical Adapter, LC/PC Adpater SM / MM
Features
- Conforms to Telcordia GR-326-CORE standard
- Conforms to YD/T-1272.3 standard
- Good interchangeability,low insertion loss
- Easy to use,plug
- Application: FTTH,CATV,Telecommunications,etc
This coupler provides a solution for extending a current run of fiber optic cabling. This coupler
is constructed from highgrade plastic and has been designed and engineered for durability
and a long life.

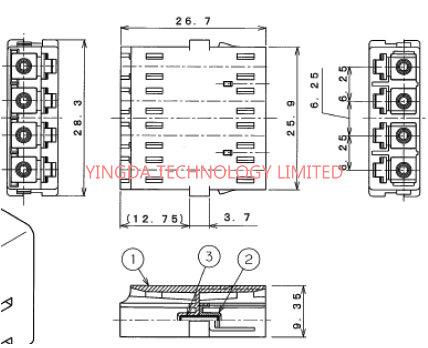

Adapter Drawing
Material List:
- Sleeve: Ceramic or PB
- Housing: PC , Flammability UL94 V-0
- Dust cap: PVC, Flammability UL94 V-0
- Clip:s tainless steel
Optical characteristic
|
Optical Performance
|
Premium Grade |
Standard Grade |
|
Insertion Loss |
≤0.1dB |
≤0.2dB |
|
Durability |
1000 times |
1000 times |
Environment and Mechanical Properties
|
Item |
Test condition |
Conformance |
Test result |
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
1000 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-6 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-12 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +75ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
|
Storage Temperature |
-40ºC to +85ºC |
|
≤0.2dB |

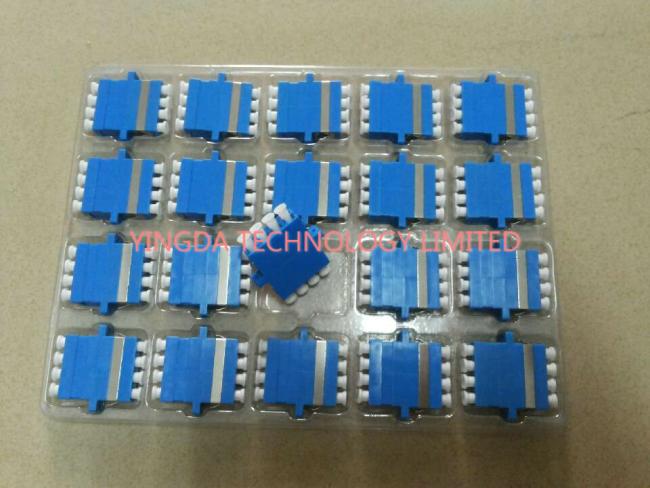

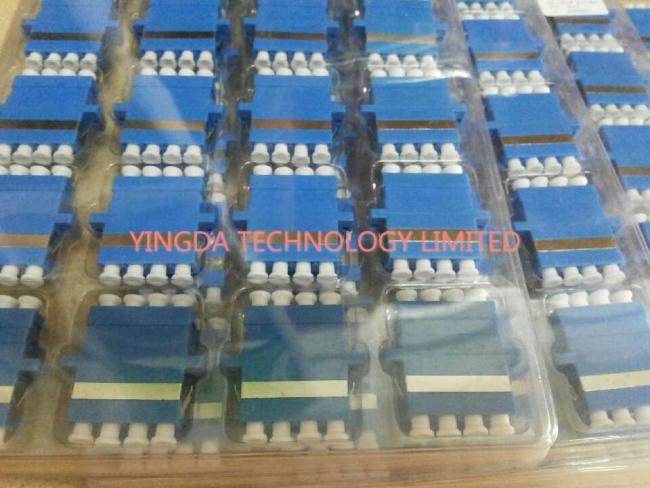

More product show:

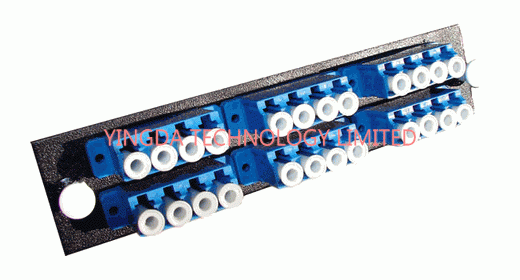

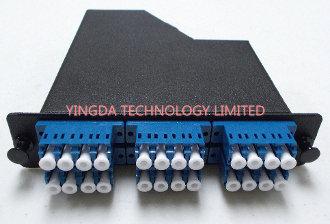

Product application occasions:
