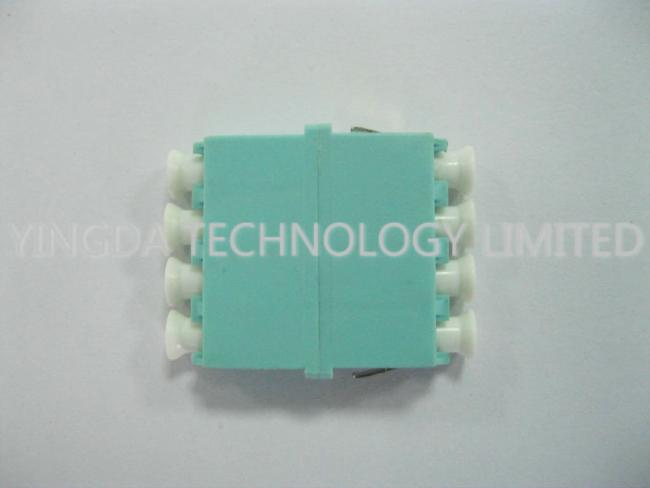

Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua
Fiber Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua Fiber Adapter
Description
Our simplex plastic SC couplers are designed for mounting in standard rectangular cut out style panels.
This series features either bronze or ceramic alignment sleeves to meet your specific design requirement.
Additionally, these couplers can be used with PC or UPC style fiber connectors.
Simplex, duplex and quad adapters are available in plastic, with or without flanges, and in horizontal and
vertical mount styles. All come with a choice of zirconia split sleeves (diagonal or straight split options
available), or with phosphor bronze straight split sleeves. Housing is available in a variety of colors.:
blue, beige, aqua, green,etc.
Features
- Insertion loss <0.2dB
- Durability >1000 times
- Used to connect either PC or UPC polished SC Fiber cables
- Plastic body provides a light weight yet durable solution
- Stainless steel mounting clips allow for easy snap in installation
- Ceramic alignment sleeve supports Single mode applications
- 100% test in factory
Specification
|
Item |
Test condition |
Conformance |
Test result |
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
1000 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-6 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-12 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +75ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
|
Storage Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
Order information
- LC Quad Singlemode Adapter w/o flange (blue)
- LC/APC Quad Singlemode Adapter w/o flange (green)
- LC Quad Multimode 10Gb OM3 Adapter w/o flange (aqua)
- LC Quad Multimode Adapter w/o flange (beige)
More product show

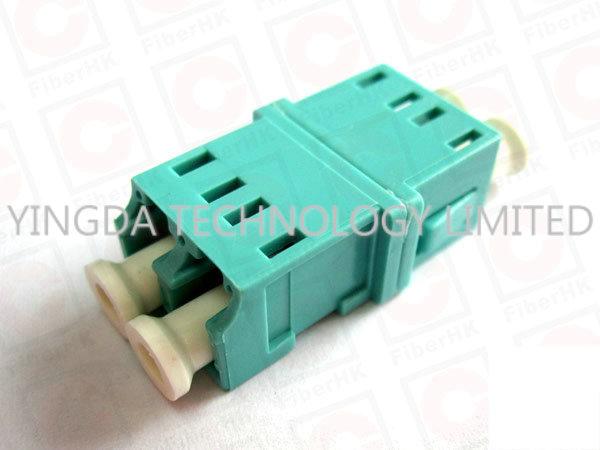

LC duplex short flange, no ear LC SM MM OM3 fiber optic adapter can be choosed too, check below:
