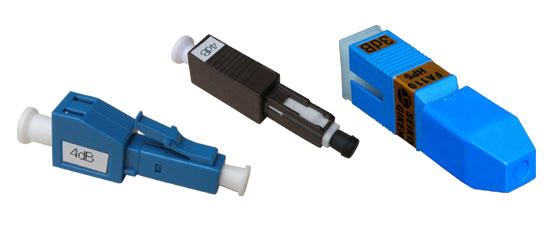

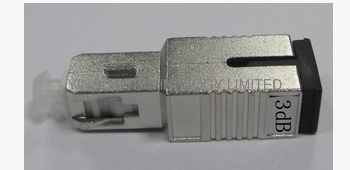

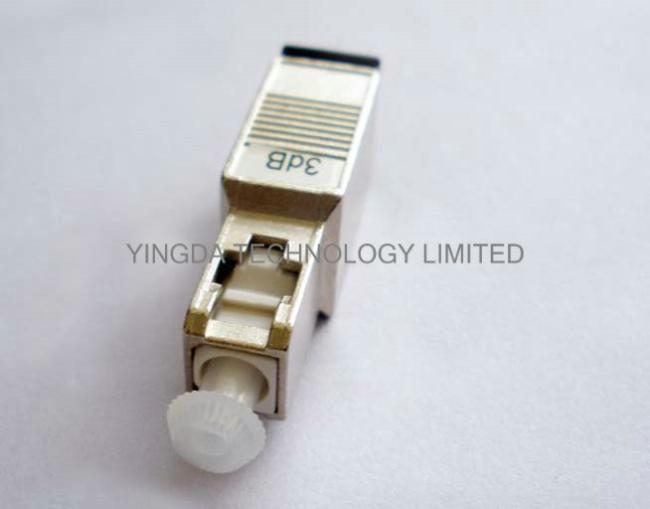

Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution
adjustable attenuator which one end is connector type, the other end is adapter female type.
According to the ferrule end face it can be divided into PC and APC,attenuation is very selective,
0 ~ 30dB optional, wavelength 1250 to 1650nm.
Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation
in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.
Now we can offer 1dB,2dB, 3dB, 4dB, 5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.
Features
- High precision attenuation value
- Low additional loss
- High durability
- High reliability and stability
- Connector type: FC, SC, LC, ST, FC/SC or other type
Application
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTP network
Technical Parameter
|
Return Loss |
≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC) |
|
Attenuation Tolerance(dB) |
1-5dB＜±0.5 dB |
|
5-10dB＜±10% |
|
|
11-25dB＜±5% |
|
|
Operating Wavelength(nm) |
1310±10nm |
|
1550±10nm |
|
|
1310 and 1550±10nm |
|
|
Operating Temperature(℃) |
-40℃～+75℃ |
Order information
|
Attenuator |
Item |
|
Adapter type |
|
|
FC/APC fixed attenuator 1/2/3/4/5/8/10/15dB |
|
|
SC/PC fixed attenuator 1/2/3/4/5/10/15dB |
|
|
SC/APC fixed attenuator 1/2/3/4/5/8/10/15dB |
|
|
Female to male type (F-M) |
FC/SM/UPC build out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
SC/SM/UPC buid out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
|
FC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
|
SC/SM/APCbuild out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
|
LC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
|
Variable(VOA) type |
FC/LC/ST/SC connector mechanical 1~30dB Variable attenuator (MVOA attenuator) |
Other types female to male attenuator
