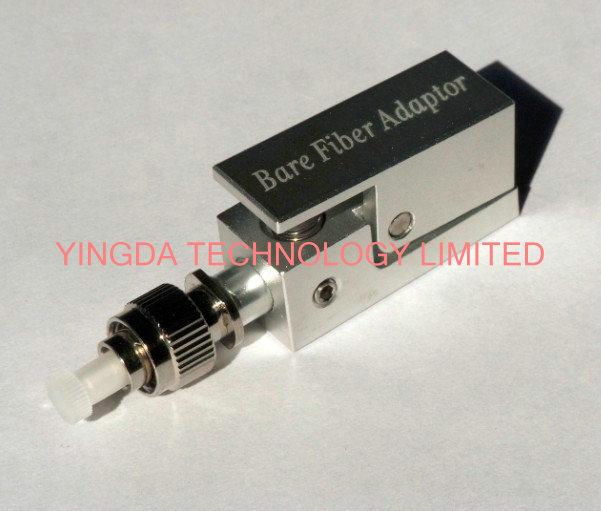

FC Square Fiber Optic Adatper Metal In Black Blue Grey For Network Cable
FC Square Bare Fiber Adapter, FC Bare Fiber Optic Adatper Metal Black Blue Grey
Description
Bare Fiber Adapter can link bared optic and light source ,testing equipment, light appearance etc,
and the products used for test appearance and temporary conjunction between fiber optics
extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one side,
the other side is a connector that can plug into the equipment.
Feature
- Simplex and quickly interconnect
- Low insertion loss
- Repeatability and exchangeability good
- Stabilize the credibility
- Interchangeable connector heads available
Application
- Testing fiber on the reel
- Optical fiber through connection test
- Two-way communication during optical-fiber cable installation and maintenance
- First-aid repair,temporary connection and testing on optical fiber project.
Specification
|
Shape |
Square / Round |
|
Connector |
FC/PC, SC/PC, ST/PC, LC/PC |
|
Applicable fiber |
SM & MM |
|
Ferrule diameter |
123-127 um |
|
Ferrule outder diameter |
2.499mm 1.249mm |
|
Cable diameter |
250um & 900um |
|
Insertion Loss |
≤0.20dB |
|
Repeat ability |
＜0.2dB |
|
Tensile strength |
100g |
|
Plug time |
>1000 times |
|
Operating Temperature |
-40 ~+85℃ |
|
Size |
Length:40mm, diameter:30mm |
