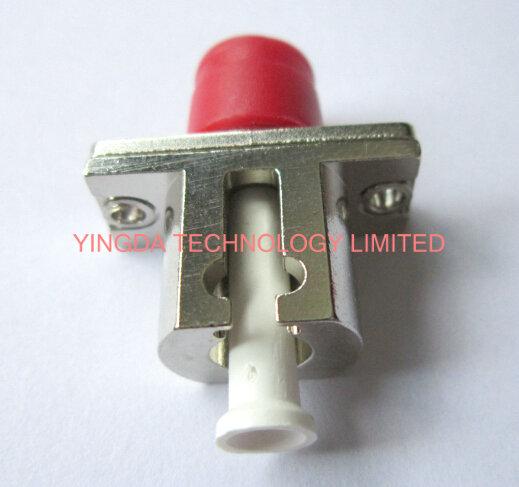

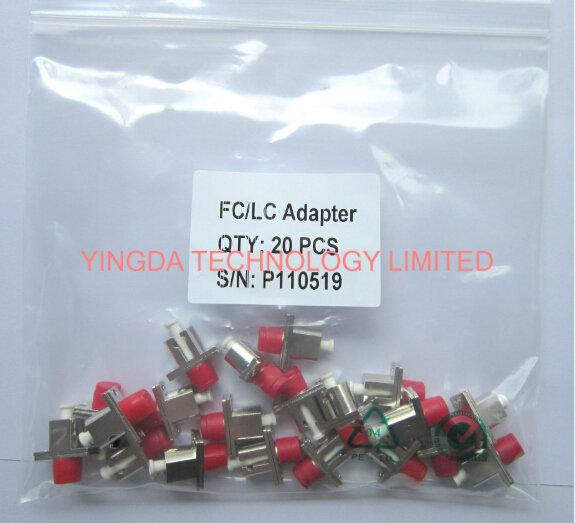

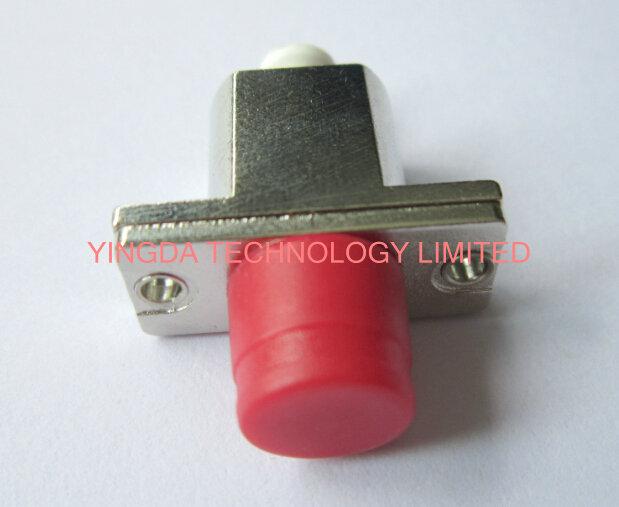

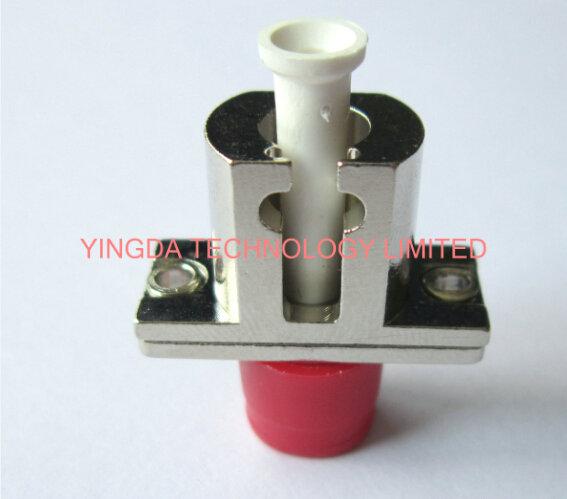

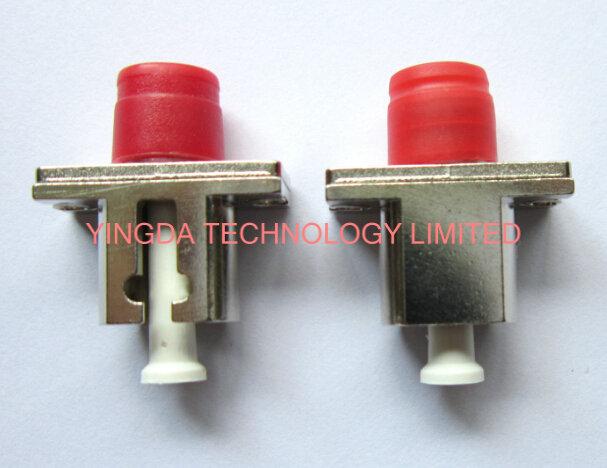

Hybrid Fiber Optic Adapter FC / LC For Interconnecting Two Fiber Connector
FC to LC Hybrid Adapter, FC / LC Hybrid Fiber Optic Adapter, FC - LC Coupler
Description:
Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.
Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber
connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.
Hybrid adapter can connect different types of connectors on both ends,and provides APC end
face connection. Duplex or multiple adapter can improve the density of installation, save a space.
Application
- CATV
- Telecom networks
- Optical test equipments
- Local area networks
- Wide area networks
- Data processing networks
Features
- Low insertion loss value
- Choice of housing and sleeve materials
- Stable capability and high reliability
- Excellent mechanical
- Choice of housing and sleeve materials
- Stable capability and high reliability
- Excellent mechanical capability
- Variety of colors
Specification
|
Item |
Value |
|
Insertion loss |
≤0.2dB |
|
Insert-pull test |
1000 times |
|
Repeat ability |
≤0.1 |
|
Tensile strength |
≥10kg |
|
Operating temperature |
-40°C~85°C |
|
Sleeve materials |
Ceramic |
