SC / APC - SC / APC Indoor Fiber Optic Patch Cord GJXFH G657A2 LSZH
SC / APC - SC / APC Indoor Fiber Optic Patch Cord GJXFH G657A2 LSZH
The optical fiber unit is positioned in the center ,two parallel fiber reinforced plastics FRP
are placed at the two sides ,then the cable is completed with a black or color LSZH Sheath.
Application
Used as access building cable
Used in indoor cabling especially used for FTTH
Implementation standards
YD/T1997-2009 access network butterfly optical drop cable
Specification
|
Item |
SC FC ST LC drop cable PATCH CORD |
||
|
IL(dB) |
≤0.2 |
Max IL(dB) |
≤0.3 |
|
Working temperature(°C) |
-40~+80 |
Temperature cycle(°C) |
-40~+75 |
|
Storage temperature(°C) |
-40~+85 |
Interchangeability (dB) |
≤0.2 |
|
Plug times |
1000 times |
Repeat ability(dB) |
≤0.1 |
|
RL (dB) |
≥45 ≥50 ≥60 |
Immersion |
Temperature 43°C, PH5.5 for 7days |
Delivery Length:
1-300METERS / PACK
Order information
FHPC-XXX-XX-XXX-XXX
1 - 2 - 3 4 - 5 6
|
FHPC |
Connector type
|
Fiber count |
Cable type |
Strength member |
Fiber type |
Cable color |
|
FH=ftth |
1 |
2 |
3 |
4 |
5 |
6 |
|
Pc=patch cord |
SCU=SC/UPC SCA=SC/APC LCU=LC/UPC .... |
01=1core 02=2core 04=4core .... |
F8=Figure 8 SF=self-supporting |
F=FRP S=steel |
5D=G.652D A1=G.657A1 A2=G.657A2
|
W=white B=Black Y=yellow |
FTTH Patch Cord can connect with all kinds of fiber optic connectors, like SC FC ST LC...

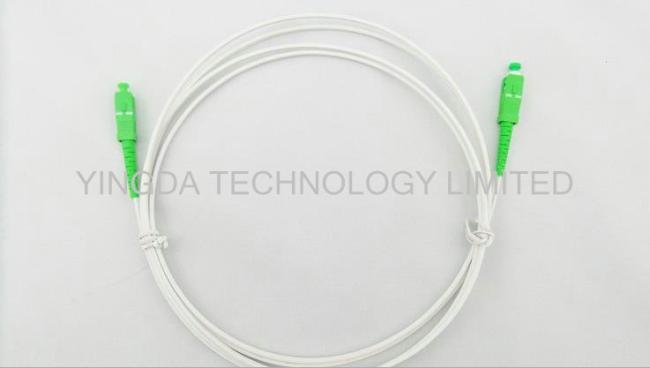

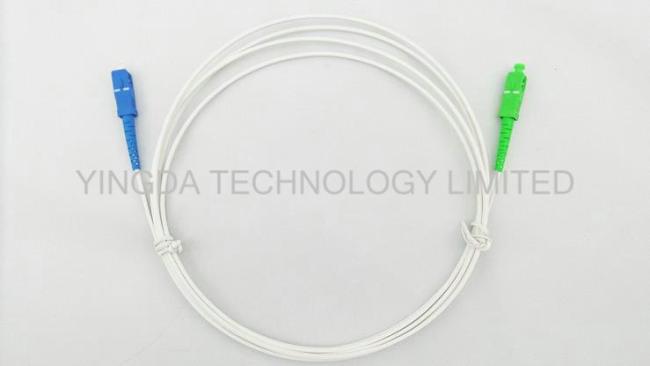

below some photo for reference:

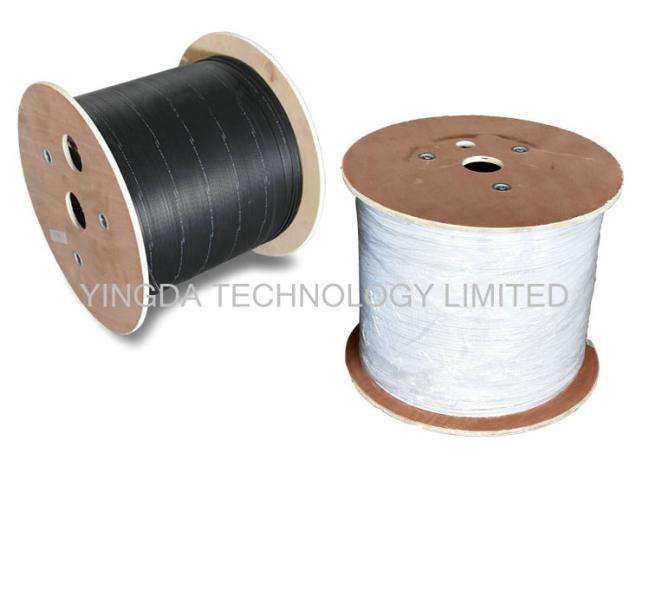

FTTH drop cable can do in two colors: BLACK / White.
If no special advice, will do BLACK COLOR.
