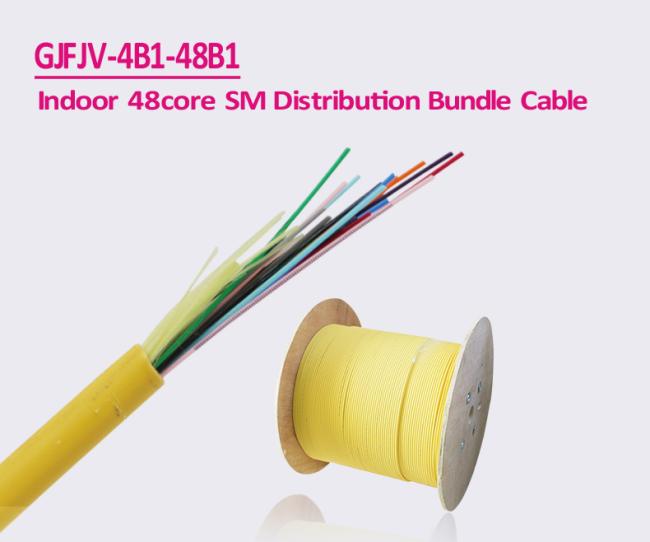

48 Cores GJFJV Fiber Optic Pre-Terminated Assembly 2.0mm Bundle Patch Cord LC APC LSZH Corning Yellow
48 Cores GJFJV Fiber Optic Pre-Terminated Assembly 2.0mm Bundle Patch Cord LC APC LSZH Corning Yellow
Pre-terminated Patch cable is called Bunch/Distribution patch cable or Mini breakout patch cable. It’s suitable for laying in buildings, primarily in cable conduits and cable trays for direct connector assembly with no need for splice connectors.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Connector’s Standard:
TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
Optical Specification
| Connector | LC | Jacket OD(mm) | 10.5mm |
| Fiber mode | 9/125um | Jacket color | yellow |
| Polish method | APC | Wavelength | 1310/1550nm |
| Cable type | Multi-fibers breakout 2.0mm unit cable | Jacket material | LSZH/PVC |
| Insertion loss | ≤0.3dB (IEC grade C) | Insertion loss | ≤0.12dB (IEC grade B) |
| Return loss | SM APC≥65dB(min) | Interchangeability &vibration | ≤0.2dB |
| Operating temperature | -40~+75°C | Storage temperature | -40~+85°C |
End-face quality (SM)
| Zone | Range (um) | Scratches | Defects | Reference |
| A:core | 0-25 | none | none | IEC61300-3-35:2015 |
| B:cladding | 25-115 | none | none | |
| C: adhesive | 115-135 | none | none | |
| D:contact | 135-250 | none | none | |
| E: rest of ferrule | none | none |
Features

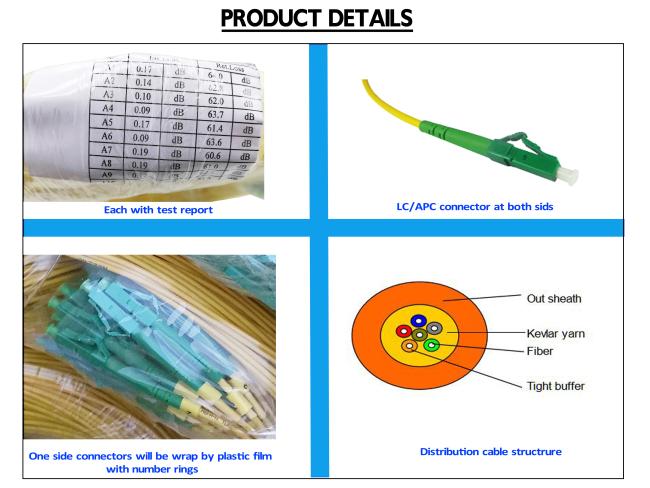

- 100% pre-terminated and tested in factory to ensure transfer performance.
- Rapid configuration and networking, reduce installation time.
- Supports 40G and 100G network applications.
- Low insertion loss and added loss.
- High back loss, small volume, light weight.
- LSZH, OFNP, OFNR cable jacket.
- RoHS and REACH materials compliant.
- End-face geometry and quality superior than IEC and Telcordia standards.

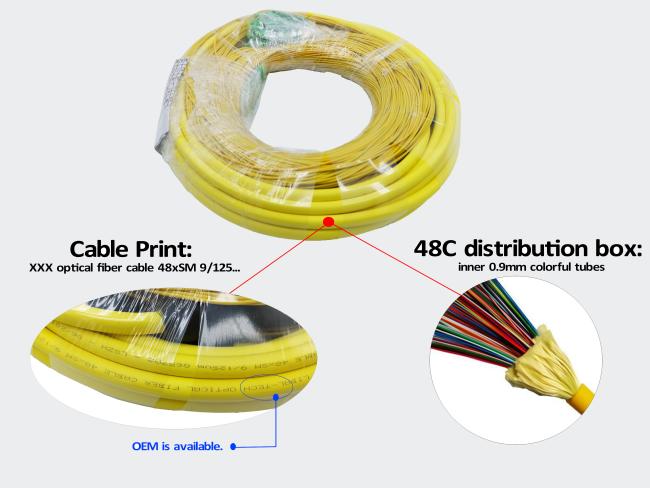

- Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
| Fiber count | Cable OD. (mm) | Weight (kg/km) | Allowable tensile strength(N) | Allow squash Force(N/100mm) | Min. Bend radius(mm) | Operating temperature (°C) | |||
| Long term | Short term | Long term | Short term | Long term | Short term | -20°C~+60°C | |||
| 4 | 5.0 | ≈30 | 200 | 600 | 200 | 600 | 10D | 20D | |
| 8 | 6.0 | ≈40 | 400 | 800 | 200 | 800 | 10D | 20D | |
| 12 | 6.5 | ≈45 | 500 | 1000 | 200 | 1000 | 10D | 20D | |
| 24 | 8.5 | ≈65 | 600 | 1100 | 200 | 1100 | 10D | 20D | |
| 48 | 10.0 | ≈110 | 700 | 1300 | 200 | 1300 | 10D | 20D | |
| 72 | 12.5 | ≈320 | 900 | 1500 | 600 | 1500 | 10D | 20D | |
| 96 | 14.5 | ≈400 | 1000 | 1500 | 600 | 1500 | 10D | 20D | |
Application: CATV, FTTH, FTTB, Security Monitor, Intelligent broadband, etc.
Any more questions pls contact us at +86 18688982406
key word: LC APC patch cord, fiber patch cord, Corning patch cord
