24 Cores Outdoor Mid Span Access Fiber Optic Splitter Distribution Box FTTH GPON CTO IP65

This box is used as a temrination point for the 24cores feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building. It maximum can make 24subscribers ftth application network.

Specifications

Wiring diagram

Terminal Box Completed Like below

+24PCS SC/UPC adapters

+ 24pcs SC/UPC fast connectors 55mm

+ 24pcs SC/UPC Pigtails 1Mts 0.9mm yellow G65A71 LSZH

+24pcs ftth flat drop cable 2x3.0mm black 1core G657A1 LSZH steel wrie,etc.

Overview:

• Made of high quality high strength engineering PC+ABS material, anti-UV, anti-aging, flame retardantd material is optional;
• Protects and manages cable effectively, all box mix fusion, distribution, splitting, storage in one set, multi-functional;
• Standard size, moderate weight, easy to operate, green hand can do fiber optic installation without manual.

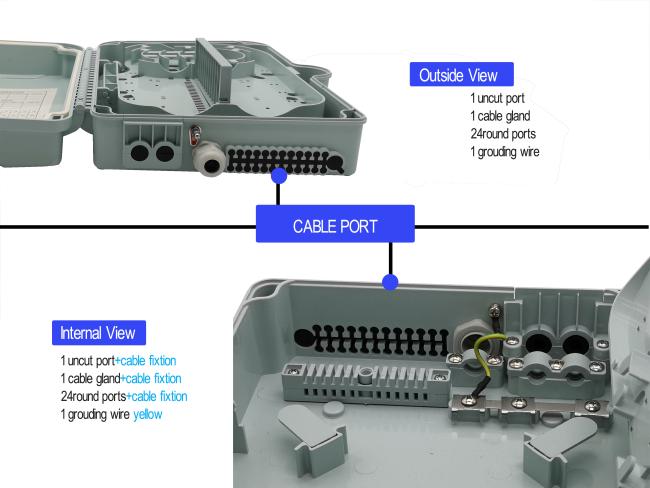

Cable entry &exit:

• This distribution box can use mid span port or 1 cable gland optional, can maximum exit 24pcs ftth figure-8 bow-type drop cable;
• All entry and exit cable have cable fixtion or clamps, which makes it stable after long time use, and all the metal parts are stainless steel;
• Especially for drop cable exit, there are 2ways of 12pcs slots fo fix the cable, with screws to fix the parts on the box.
• There is 1 piece yellow grouding wire to make sure outdoor safe installation.

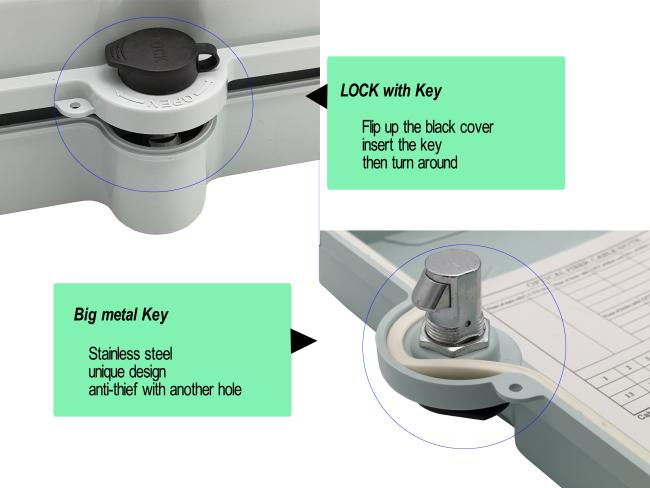

Lock system:

• Total enclosed structure, secured with anti-theft locking mechanism:with 2 clips (buckles) + 1xmaster key, anti-thief, dust proof.
• The whole box is with waterproof seal circle, ensure IP65 protection level.
• Suitable for both outdoor and indoor use

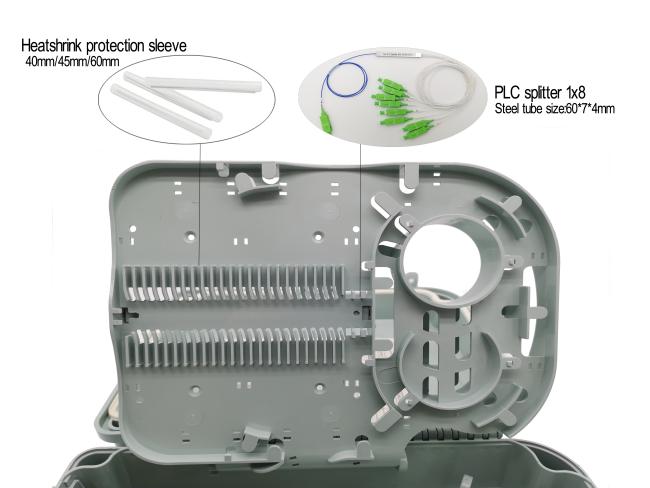

Fusion splice plate:

it can maximum hold 24pcs sleeve 60*1.0mm length, also large area for fiber routing, distribution, 2 slots to fix plc splitter steel tube 60*7*4mm size.

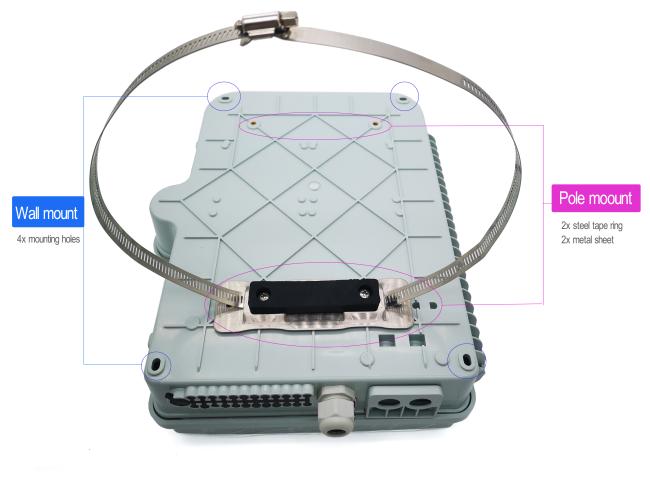

Mounting methods:

Pole mounted or wall mounted, if customer not specify, deliver wall mount type, pole mount need charge additionally.

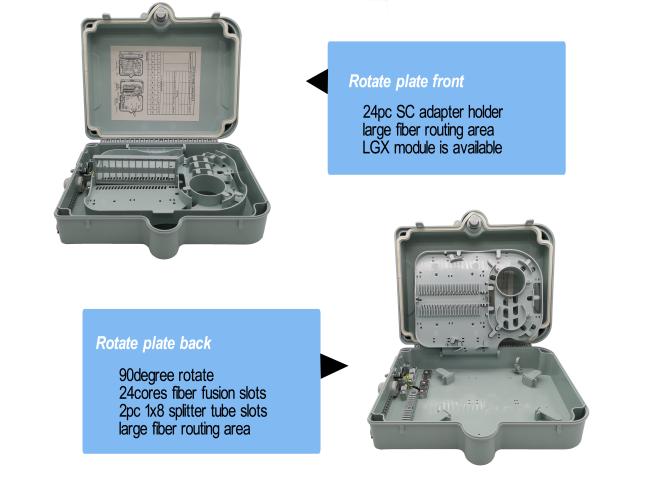

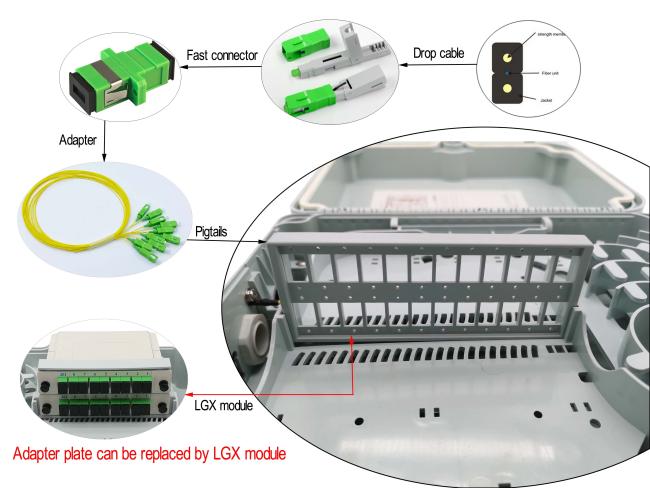

Apdater plate (Related products):

• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc all in one
• Suitable for SC and LC duplex adaptor, pigtails, fast connector, ftth drop cable, etc.
• The adapter plate can change into LGX module by change the holder instead, if need, pls talk to sales@yingdapc.com
• or TEL:+86 18688982406

Technical Paremeters

Application

• Telecommunication subscriber loop
• Fiber to the home (FTTH)
• LAN/WAN
