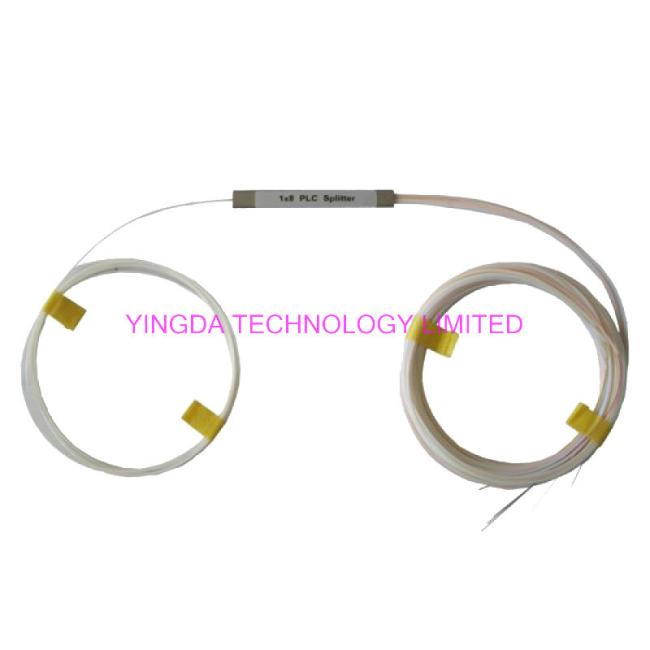

1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter

Fiber optical splitter is used to split the fiber optic light into several parts at a certain ratio. The fiber optic splitter is an important passive component used in PON FTTX networks. There are mainly two kinds of passive FTTH optical splitters: one is the traditional fused type splitter as known as FBT coupler or FBT WDM optical splitter, which features competitive price; the other is the PLC splitter based on the PLC (Planar Lightwave Circuit) technology, which has a compact size and suits for density applications.

Features

· Good uniformity and low insertion loss

· Low Polarization Dependent Loss

· Excellent Mechanical

· Stability Telecordia GR-1221 and GR-1209

· Components through TLC-Certified,Conform to YD1117-2001

· Operating environment: -40°C to +85°C

· High Polarization Extinction Ratio & Excellent Uniformity

Application

· Fiber to the point (FTTX)

· Fiber to the home (FTTH)

· Passive optical networks(PON, GEPON)

· Local area networks (LAN)

· Cable television (CATV)

· Telecommunication Networks

· Testing Equipment

Specifications

Note:

Above is the parameters for Blockless Fiber PLC Splitter with connectors.

Without connectors, the insertion loss will be 0.2dB lower.

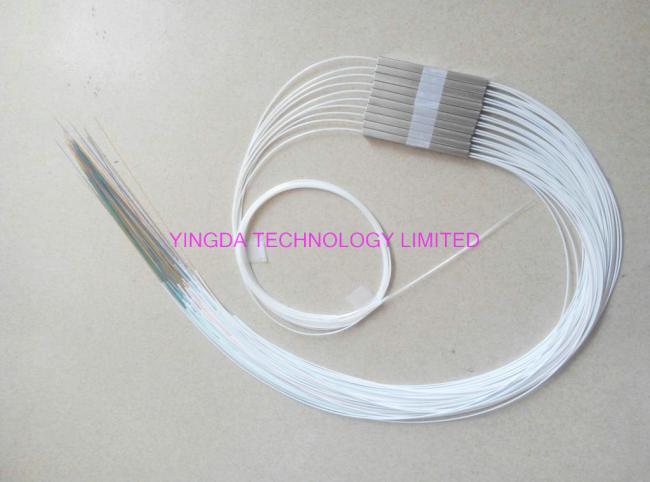

More pictures

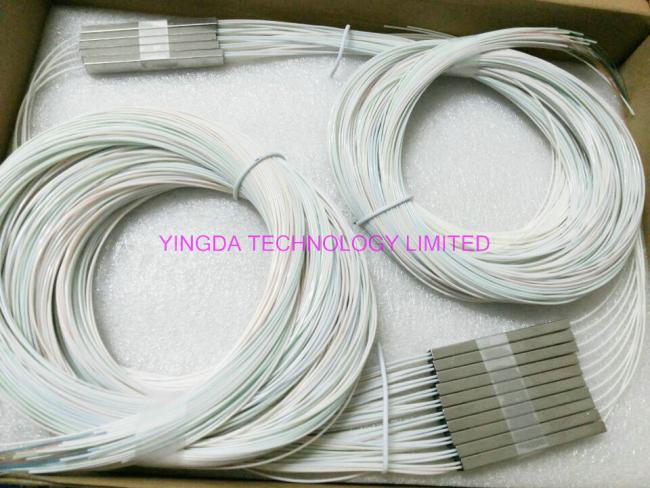

PLC splitter coulpler 1x8  without connectors pack in a box with foam, good performance, and protection to fibers, save shipping cost and volume.

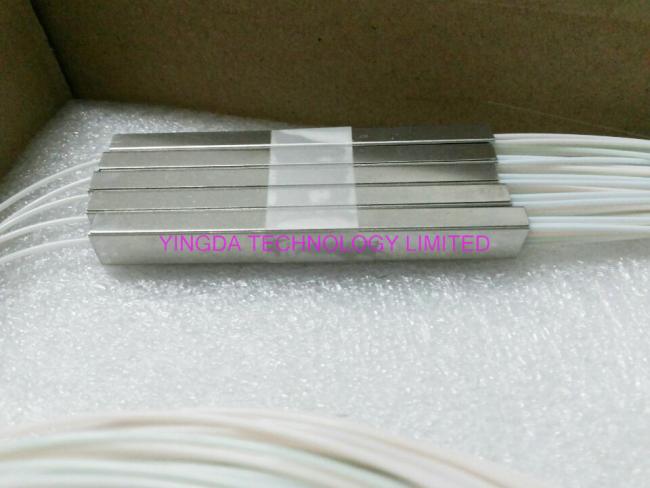

each steel tube:60*7*4mm, 2row / 4fibers outputs, with figure ring on each fiber, "input" on input pigtails. and there can stick a label: logo, serial number and product name on customer request.

Ordering Information
