Plastic Telecom 12 Ports Fiber Optic Termination Box, Pole Mount Optical Splitter Distribution Box With SC Couplers FTTH Patchcord

MODEL: FDB0212C

This fiber optical termination box is a termination point for the feeder cable with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features:

1. Water-proof d,IP65 Protection level

2. Integrated with splice cassette and cable management system

3. Manage fibers in a reasonable fiber radius condition

4. Easy to maintain and extend the capacity

5. Fiber bend radius >40mm

6. Suitable for the fusion splice or mechanical splice

7. 12 ports cable entrance for FTTH drop cable

8. Max hold 12pcs SC adapters

9. Wall mount or pole mount

Configuration:

Package information

More pictures

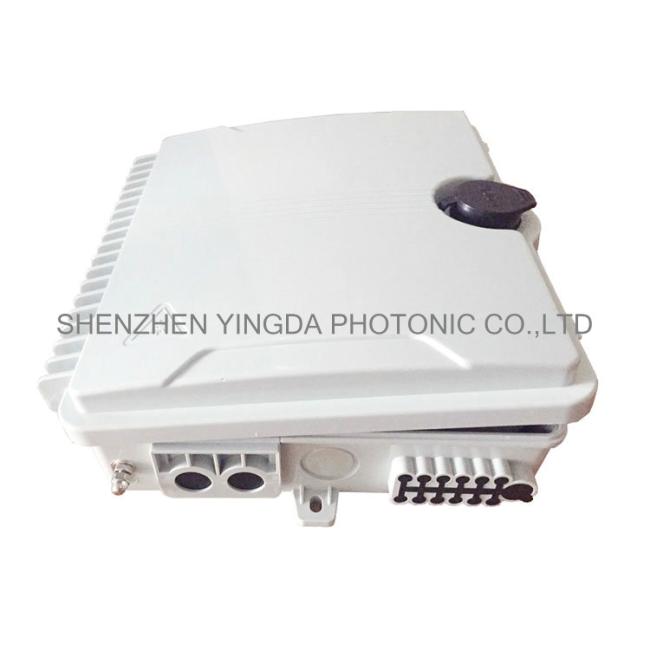

• Tdistribution box cable ports:2in 16out
• with waterproof key lock
• high strength engineer plastic

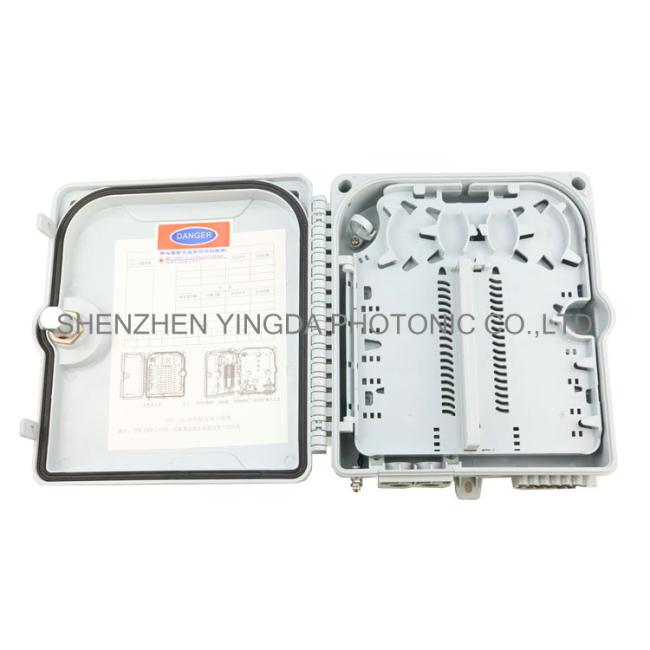

• with cable routing diagram inside for guiding

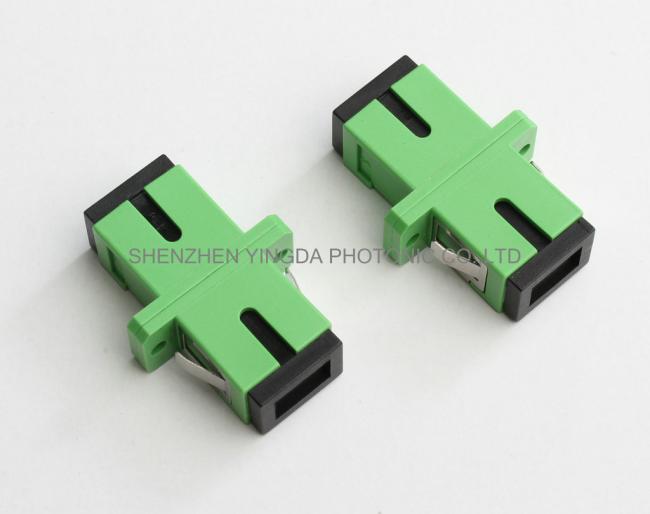

• SC adapter panel must install 12pcs SC simplex adaptor adapter coupler

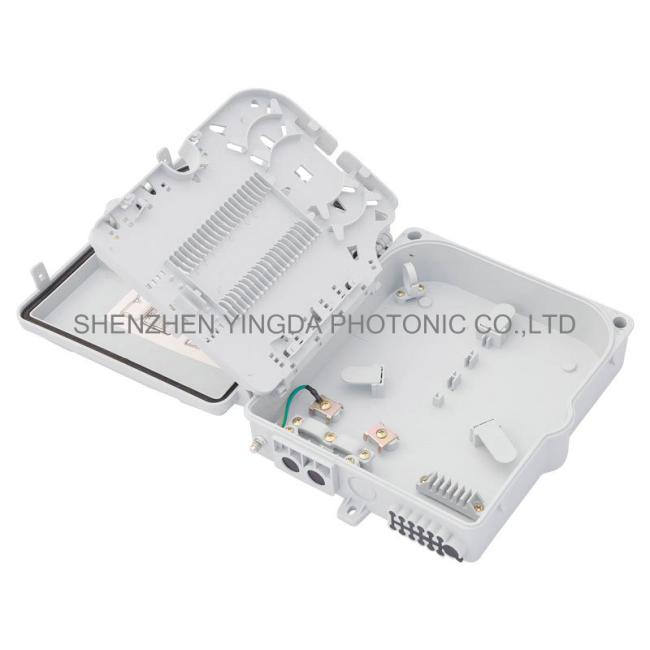

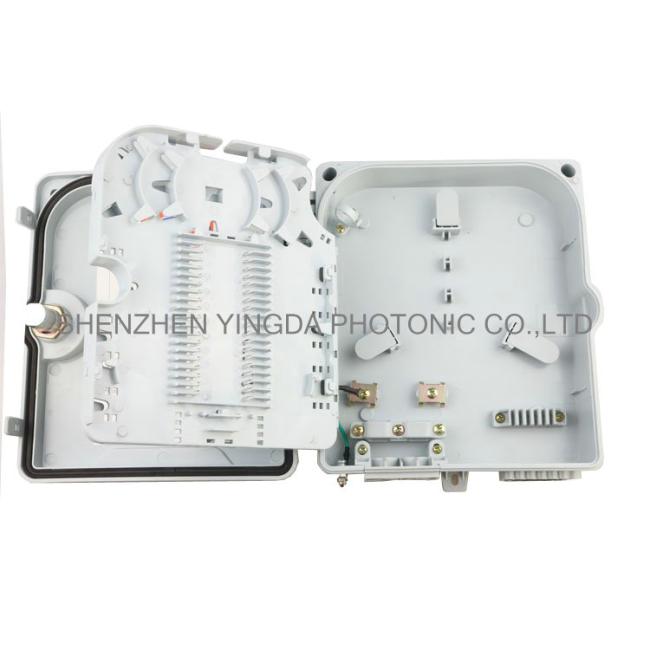

• dual layer splice tray with hinge, upper for distribution and storage, down layer for fusion and protection

• with underground wire,and drop cable fixtures with stainless steel matreial

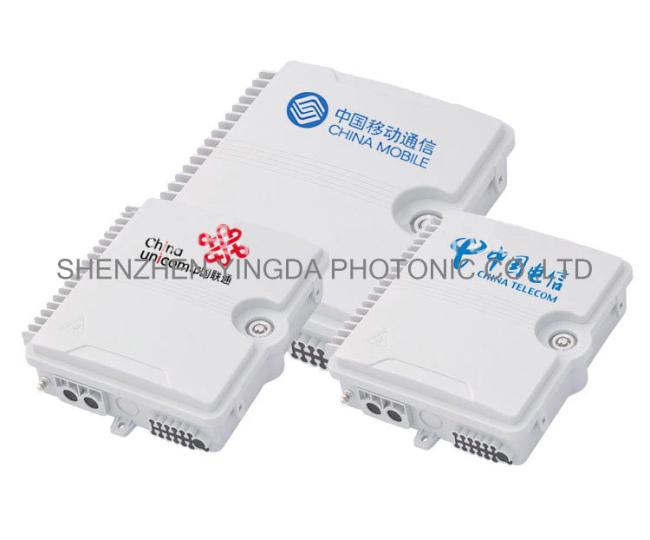

• can print customer LOGO / OEM

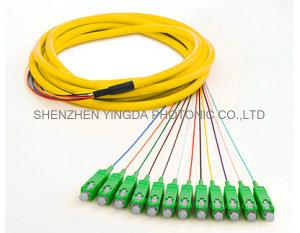

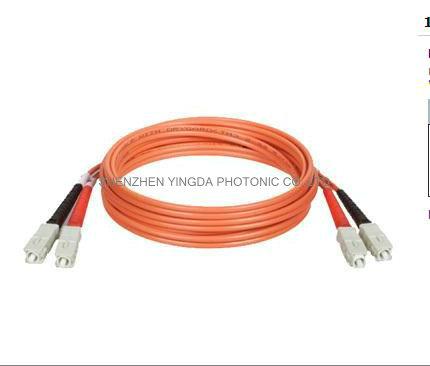

Optional accesories can be pre-terminated inside of the box:

Specification:

How to install

1.Wall-mounted installation

Drill 3 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.

2.Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole

Accessories:

1. Users' Manual*1

2. Key*1

3. Accessories Bag * 1

4. Easy pole ring*2 (Option)
