144 Cores PP Aerial Fiber Optic Splice Enclosure Dome Heat Shrink Seal 1oval 8 Round Ports
144 Cores PP Aerial Fiber Optic Splice Enclosure Dome Heat Shrink Seal 1oval 8 Round Ports

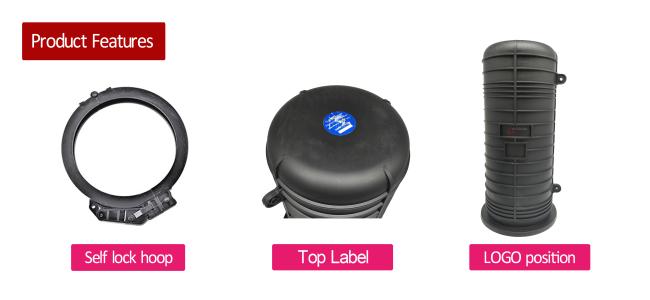

Fiber Splice Enclosure Features
- For aerial,buried,wall and pipe wall people use wells
- Ring using a special material that can be repeatedly opened,re-use
- Splice tray easy to use page design
- Quick way to make use of open sealed maintenance easier
- Valve and grounding devices can be installed
- Advanced internal structure design
- Easy to re-enter, it never requires re-entry tool it
Fibra Optica Splicing Closure Specification
| Outside dimension (Height x Diameter) | 455mm×235mm |
| Weight (excluding outside box) | 2350 g— 3500g |
| Number of inlet/out ports | 9 pieces in general |
| Diameter of fiber cable | Φ8mm～Φ25 mm |
| Capacity of FOSC | Bunchy: 24-144 (cores), Ribbon: up to432(cores) |
------------------------------------------------------------------------------------------------------------------------------------------------
GJS-D021 Fiber Closure dome is made of high quality PP materials, long life span and good performance;

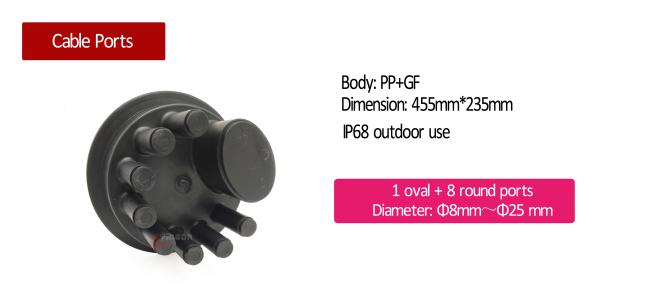

Cable ports are 1 oval and 8 round ports, with heat shrinkable seal for feeder cable enter and exit.
------------------------------------------------------------------------------------------------------------------------------------------------

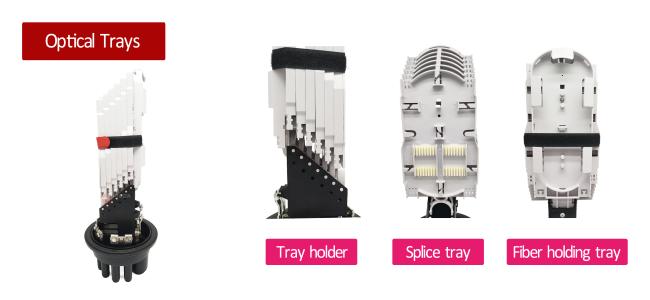

- Splice closure max. hold 6pcs fusion splice trays, and 1piece fiber holding tray at back for fiber management.
- All the trays are fix on bottom plastic holder, then can tighten by velcro tape.
- Each tray is made of ABS material, large fiber routing area and reasonable bend radius;
- There are 12pieces splicing slots for heat shrinkable protective tubes, dual fiber 24cores per tray.
------------------------------------------------------------------------------------------------------------------------------------------------

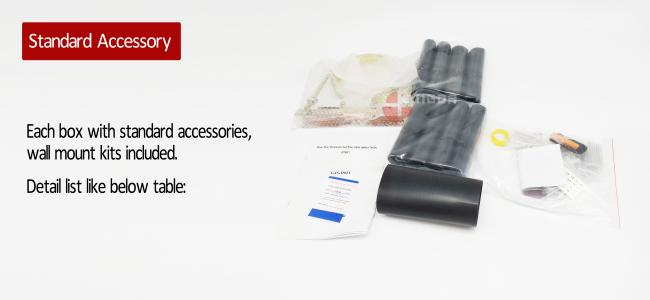

Outdoor Fiber Splice Enclosure Main Kits Content
| No. | Name of components | Quantity | Usage | Remarks |
| 1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole |
Height x Diameter 360mm x 177mm |
| 2 | Fiber optic splice tray (FOST) |
Max. 6 trays (bunchy) Max. 6 trays (ribbon) |
Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces) |
| 3 | Fiber holding tray | 1 pcs | Holding fibers with protective coat | |
| 4 | Base | 1set | Fixing internal and external structure | |
| 5 | Plastic hoop | 1 set | Fixing between FOSC cover and base | |
| 6 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
| 7 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| 8 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |
Optical Fiber Splice Enclosure Application
- Aerial,underground,pipeline,handhole.
- The ambient temperature ranges from -40 to 65℃.
Fiber Optic Joint Closure Splicing and testing instruments (to be provided by operator)
| Name of instruments | Usage and specification |
| Fusion Splicing Machine | Fiber splicing |
| OTDR | Splicing testing |
| Provisional splicing tools | Provisional testing |
| Fire sprayer | Sealing heat shrinkable fixing sleeve |
