Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White

Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White

FTB86N is used in the end termination of residential buildings and villas, to fix and splice with pigtails.

It can be installed on wall, may adapt variety of optical connection styles, optical fiber can be

managed effectively.

Features

• Small size, light weight, pleasant appearance
• Cable entry and exit in front not at back, easy to operate and managment
• Set strengthen device and fiber optic cable mounting seat
• May adapt SC/ LC duplex connectors
• Optical fiber can be managed effectively
• 2pcs FTTH drop cable outports
• Maximum fusion 2 fibers
• Indoor wall mount

Specification

Product distribution and stucture as below:

The box cover and bottom is seperated, and with clips at both sides for box close.

 ABS+PC material, high strength and anti-dust, it is more stable and solid, longer life time

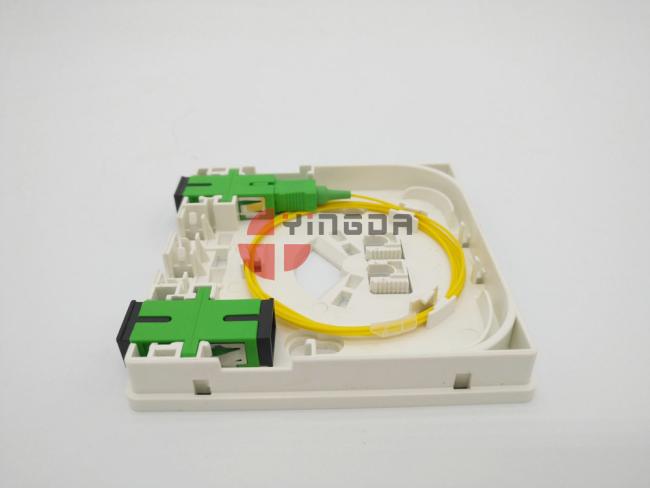

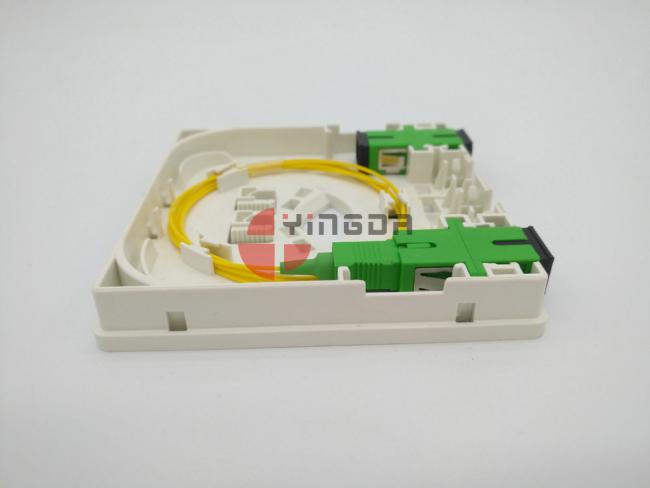

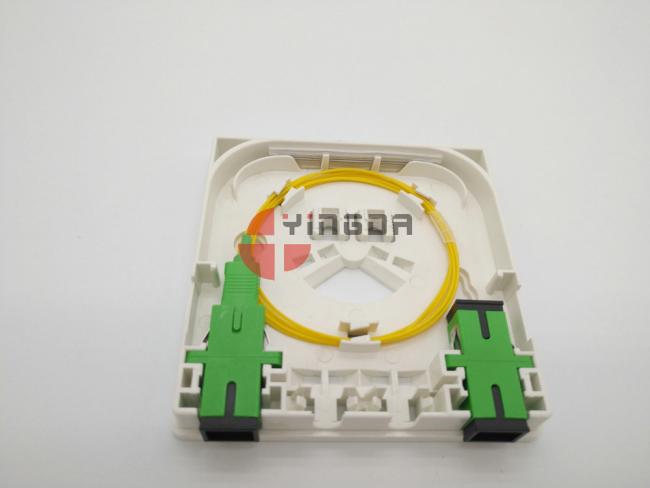

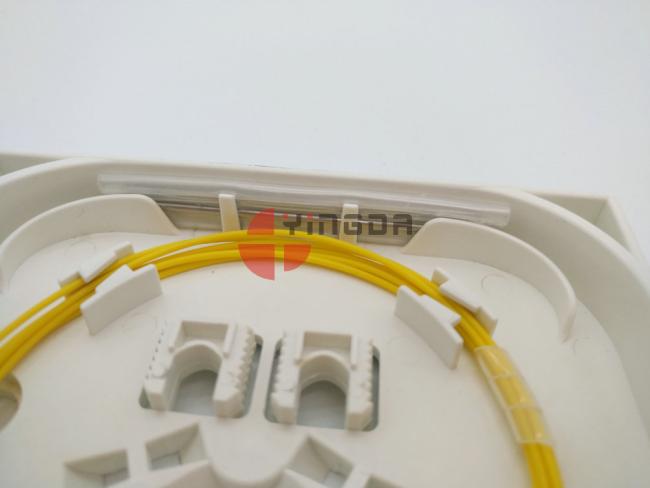

The box can hold 2 pieces SC adapter with flange and 2 pieces pigtials for fusion splice inside. it has 2 piece white cable clamp on the bottom, when u need, pls take it off and use it. it has places for heatshrink protection tube, max. can use 40mm length.

the whole box is enclosed before delivery, and the cable entry port is in front of the box, you can manage fusion, cut cable and entry in front, more easy and quick to make construction on site.

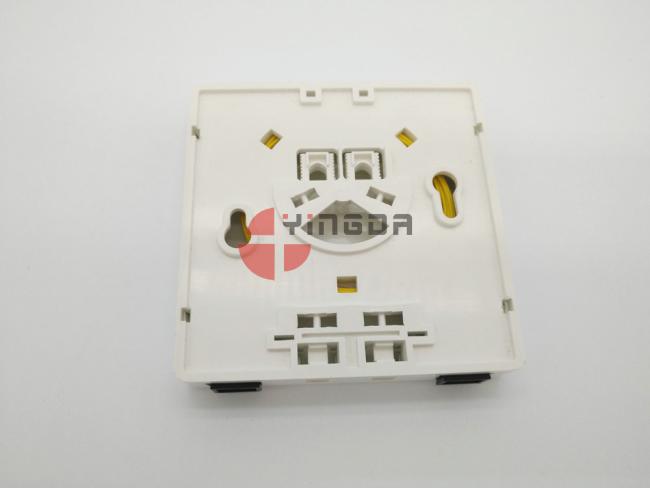

2pcs wall mount holes on the back of the bottom. with holes for air in and out.

Standard accessories

sleeve - 2pcs

wall mount screws - 2sets

Pack information:

1 piece / plastic bag,  50 pieces / small cardborad box, 200 pieces / shipping cardboard box.

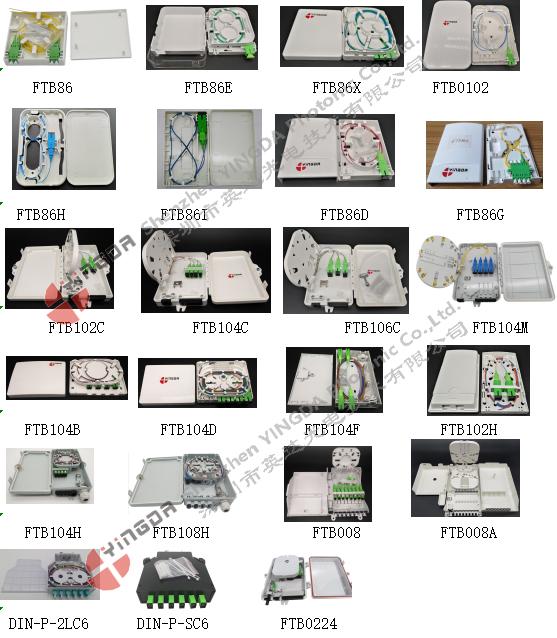

We make a lot of fiber optic socket for wall  mount instalation. pls see below:
