FDB0224F is designed to seal without screws and buckles. The compact size and flip-over cover bring easy operation as well as complete function. The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. You can take each tray out, after splice, then fix it in closure. It is designed to prevent from operation damage.
Specification
| Dimension(mm) | 380*245*155 | Max. capacity(Single fiber) | 72/144cores |
| Weight(kg) | 4.5~5 | Sealing type | Mechanical |
| Cable ports | 1 input cable port for un-cut cable from diameter from 10~17.5mm. 2 output cable ports for cable diameter from 8~17.5mm. 24 output cable ports for cable diameter less than 4mm. | Single splice tray capacity (Single fiber) | 12/24 |
| Splice tray quantity | 6pcs | Material | PP |
3.Structure

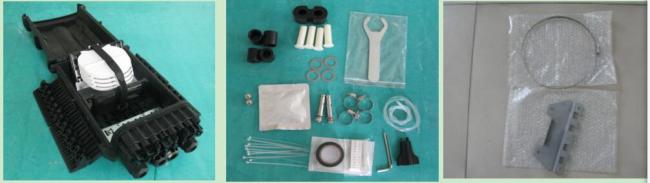

3.1 Closure and accessories(Picture 1)
Picture 1
Parts list
Main kits
| S/N | Description | Quantity | Note |
| 1 | Lid | 1 | 337(L)×242(W)×63(H)mm. |
| 2 | Base | 1 | |
| 3 | Sealing ring | 1 | Box sealing |
| 4 | 8202 sealing parts | 16 | Sealing cable ports |
| 5 | Splice tray | 4 | For cable splicing and storage |
| 6 | Splice tray cover | 1 | |
| 7 | Splice tray bandage | 1 | Fixing several splice trays |
| 8 | Fastener bolt | 2 | Fixing lid and cover of closure |
| 9 | Buckle | 4 | Fixing lid and cover of closure |
| 10 | Tight nuts | 16 | Sealing soft cable ports |
| 11 | Tight tool | 1 | Special for tight the nuts |
| 12 | Cable fixing panel | 1 | Fixing un-cut cable |
| 13 | Adaptor installation panel | 4 | An adaptor panel for 6 SC simplex adaptors |
| 14 | Splice tray bracket | 1 | Install 6 splice trays |
| 15 | Top cover stopper | 1 | Limit top cover |
| 16 | Plastic nuts | 2 | Fixing cable |
Features

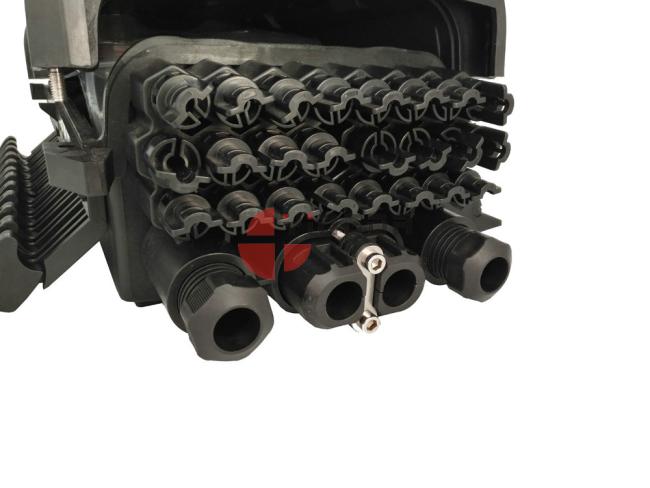

1 uncut ports,2 round ports, 24pcs drop cable ports, perfect for fiber to the work cable distribution and splitting and termiantion.

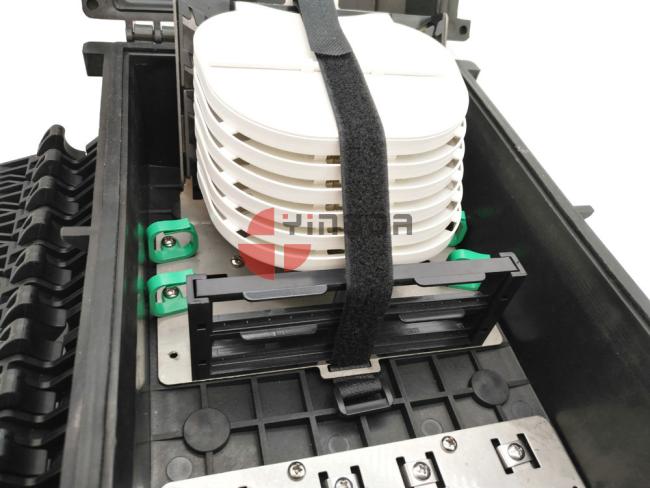

each box with 6pcs removable tray, and 24pcs SC adapter panel, and metal sheet for cable fix and routing.

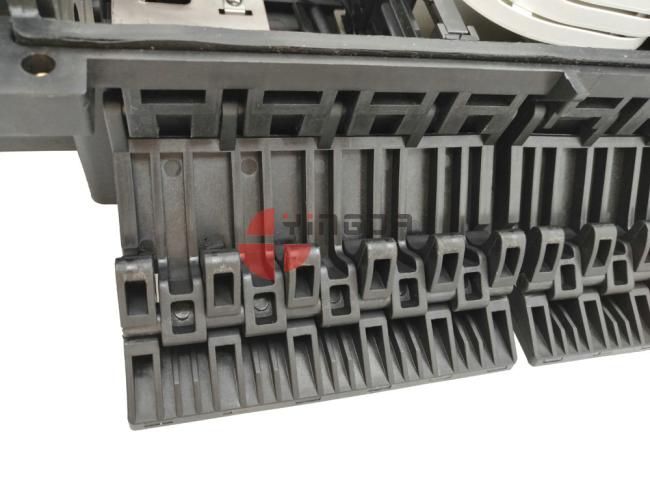

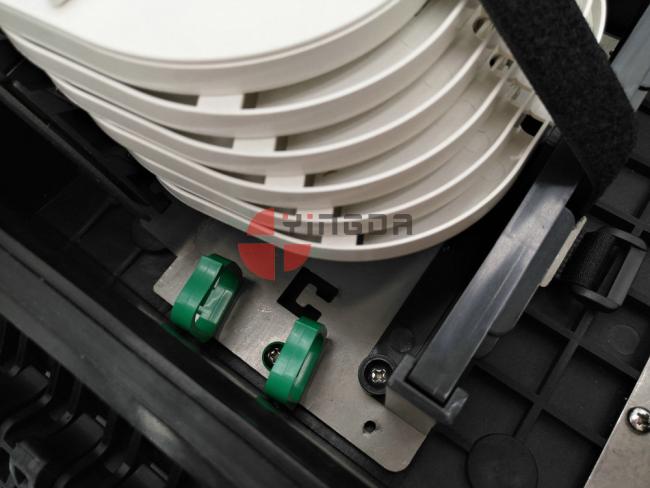

The box is strong, the buckle is unique design, high strength engineer plastic , the inside also have cable clamps.

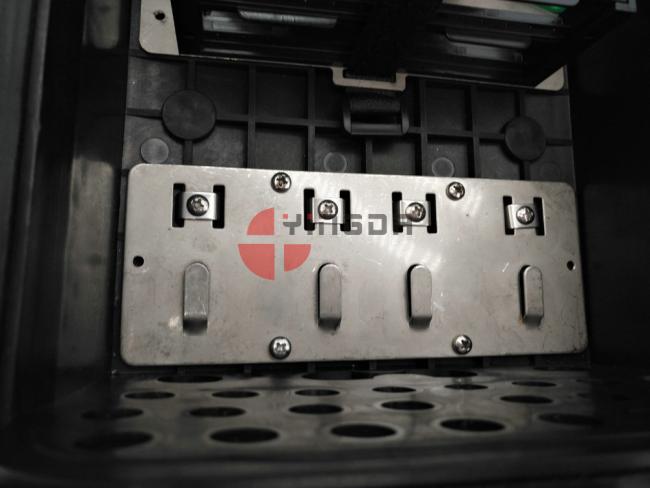

all the metal parts is stainless steel, suitable for outdoor application, if you need small sheet, can do also.

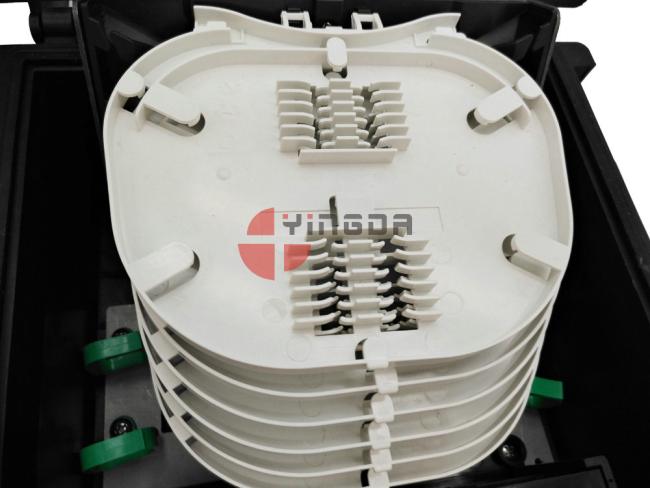

the splice tray can fusion max. 12cores,double 24cores fiber; it can also put max. 1x, 1x4, 1x8 fiber optic plc splitter tube on the groove. it is the exact same size as the steel tube.
Standard parts
| S/N | Description | Quantity | Note |
| 17 | Wall mounting kit | 1 | For wall mounting |
| 18 | Expansion anchor bolt | 2 | Parts of the wall mounting kit |
| 19 | Hexagon bolt | 2 | Parts of the wall mounting kit |
| 20 | Nylon tie(3*120mm) | 12 | Fixing cable |
| 21 | Fusion sleeve(Φ1.0*60mm) | According to the fiber cores. | Cable splicing |
| 22 | 0.2m coil tube | 1 | Protect the fiber |
| 23 | Insulation tape | 1 | Accessorial fixation |
| 24 | 0.5m EVA tube | 1 | Protect fiber |
| 25 | Drier | 1 | |
| 26 | M6 internal hexagonal wrench | 1 | Tool to open the box |
| 27 | 14# grommet | 2 | For cable dia. From 12-17.5mm |
| 28 | 41# grommet | 2 | For cable dia. From 8-12mm |
| 29 | Plastic plug | 4 | Seal the cable port |
| 30 | Iron spanner | 1 | Tool |
Optional parts
| S/N | Description | Quantity | Note |
| 25 | Pole mounting kit | 1 | For pole mounting |
| 26 | Valve | 1 | Testing sealing performance |
