White Plastic Optical Termination Box Outdoor Wall Mount 24 Fibers With Bracket and Keys FAT-24

YINGDA fiber access termination box is able to hold up to 24 subscribers. It is used as a termination

point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing,

splitting, distribution, storage and cable connection in one solid protection box.

Features

Waterproof design and with IP-66 protection level

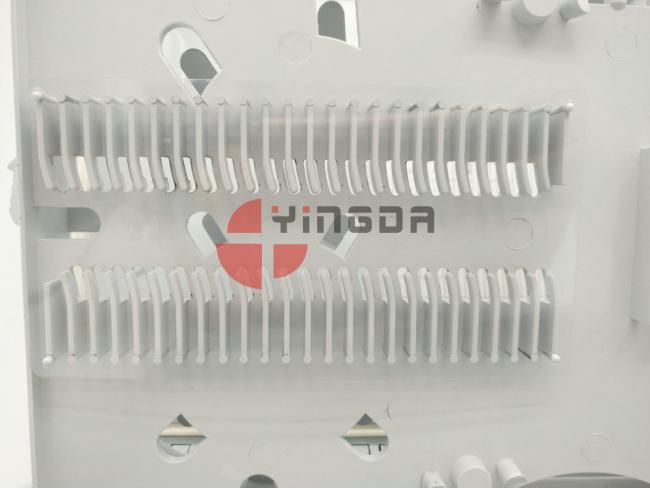

Integrated with splice cassette and cable management rods.

Manage fibers in a reasonable fiber radius condition

Easy to maintain and extend the capacity

Fiber bend radiuscontrol more than 40mm

Suitable for the fusion splice or mechanical splice

1*16 splitter can be installed as an option

Efficient cable management

24 ports cable entrance for drop cable

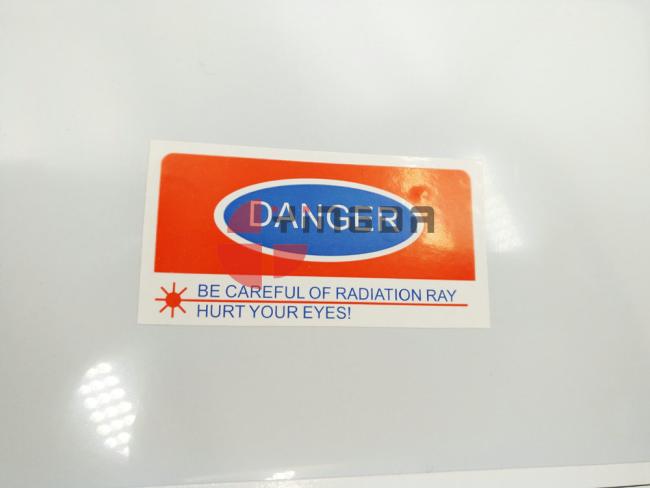

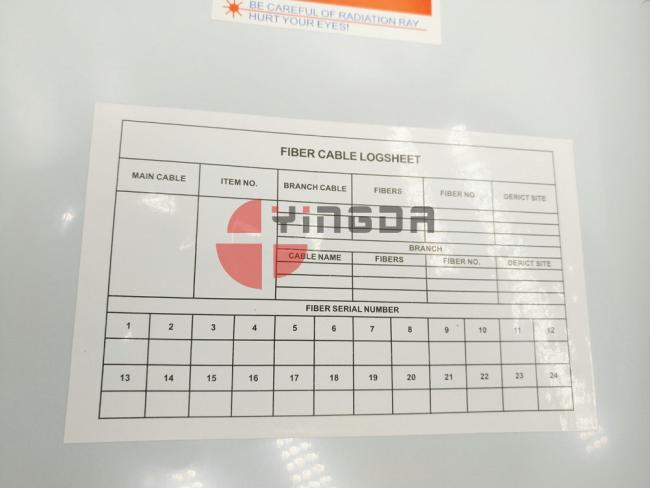

                        laser mark                                                                    labeling of cable

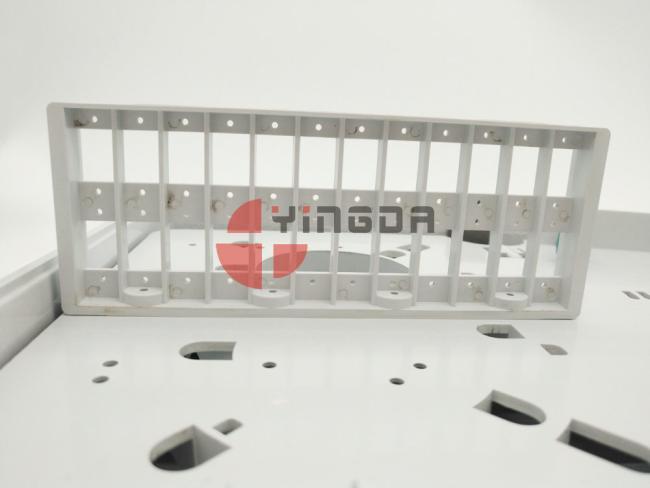

                        SC adapter panel                                                fusion splice holder

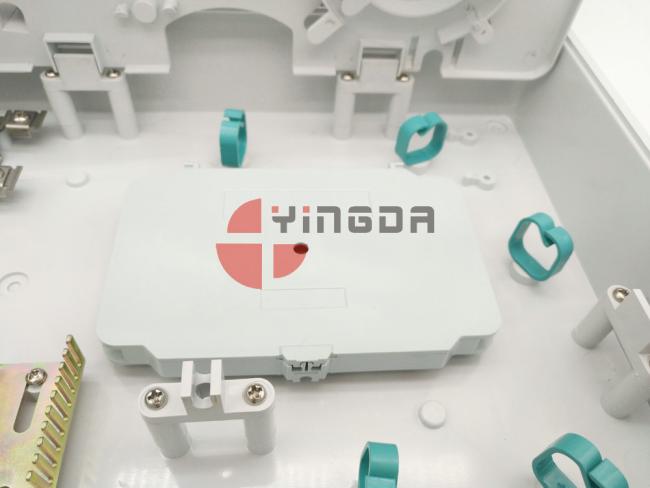

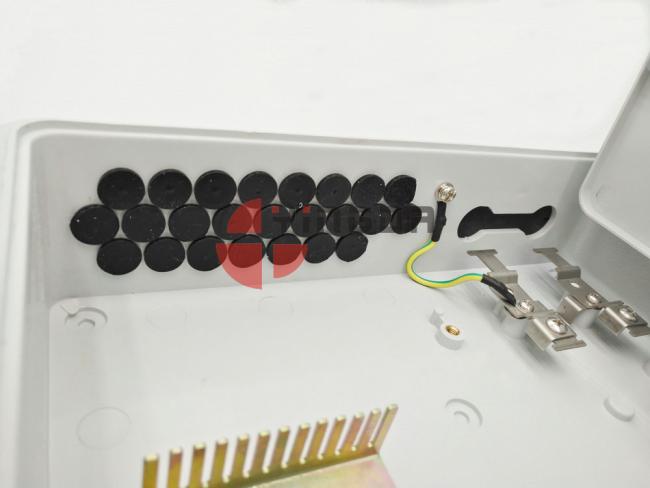

                     24fibers splice tray                                                    cable port with rubber sealing

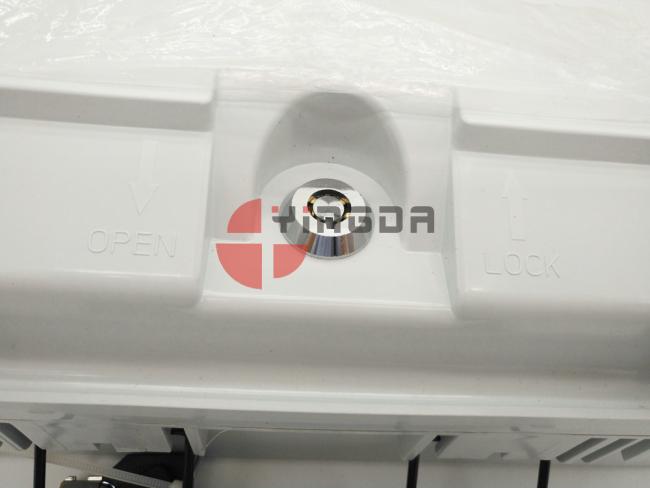

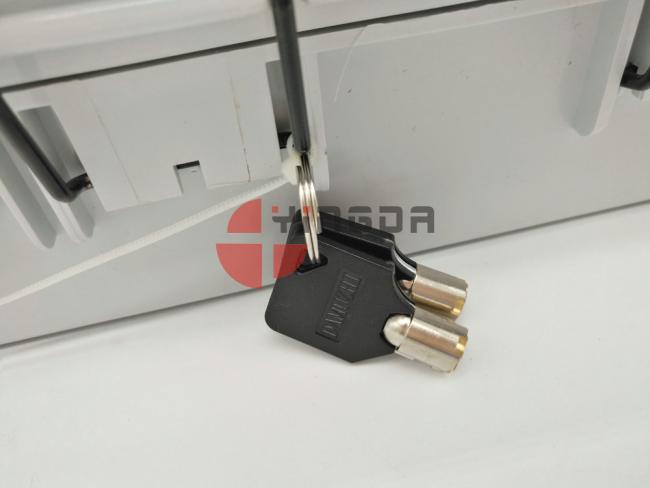

                                            2pcs key for open except the bracket, anti-thief

Configuration

Standard accessories

Splice cassette, cable management tool, installation nuts and bolts, protection sleeve, hose clamp,rubber seal for cable entrance

Optional accessories

Pole ring, extra lock and key
