3 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port
3 In 24 Out Fiber Optic Splitter Box For Drop Cable, Outdoor 96 Cores With Uncut Port
This type optical distribution box is designed to seal with screws and buckles. The compact size and flip-over cover bring easy operation as well as complete function. The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. You can take each tray out, after splice, then fix it in closure. It is designed to prevent from operation damage.
Feature
- Water-proof design with IP-65 Protection Level.
- Integrated with flap-up splice cassette and adaptor holder
- All stainless metal plate and anti-rusting bolts, nuts
- Fiber bend radius control more than 40mm
- Suitable for the fusion splicer or mechanical splice
- 3 Pcs of 1*8 or 1pcs 1*16 Splitter can be installed as an option
- Mechanical sealing structure and mid-span cable entry.
- 24 ports cable entrance for drop cable
- 24 adapter for drop cable patching
Specifications
| Model | FDB0224M |
| Material | PC+ABS |
| Dimension | 345*220*95mm |
| Cable Port | 1 uncut port, 2 reserved cable entrance |
| Cable Dimension | uncut port: 10-16.5mm; 2 reserved port: 8-16.5mm |
| Cable Outport | 24 outputs for drop cable |
| Max. Capacity | 96 Fibers (4 trays, 24F/tray) |
| Sealing structure | Mechanical sealing(buckle and screw) |
| PLC Splitter | Max. micro 1x16 Splitter, 3 pcs 1*8 PLC Splitter |
| Color | Gray |
| IP Grade | IP65 |
| Application | Wall mount, pole mount |
| Weight | 1.7KGS |
Applications
- Wall mounting and pole mounting installation
- FTTH pre-installation and filed installation
- 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable
Product Details
The appearance of the box

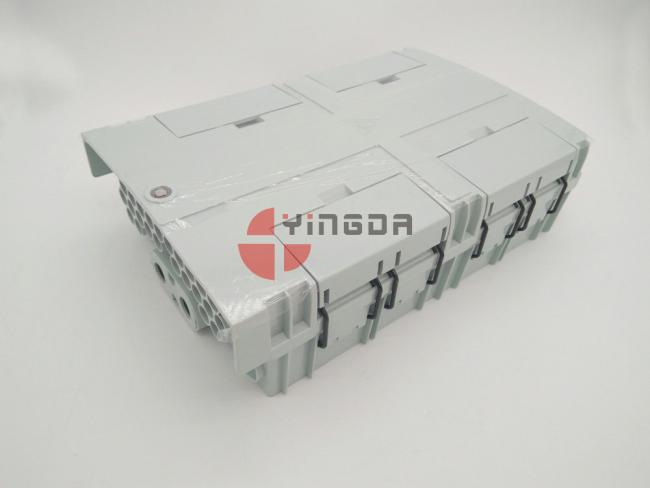

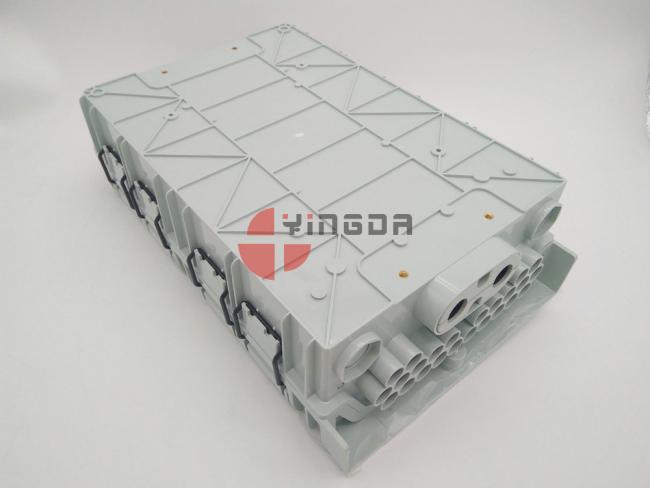

This distribution box is sealed with key and buckles(as the 1st picture).
The back of box can be wall mounted and pole mounted according to clients' requirement.

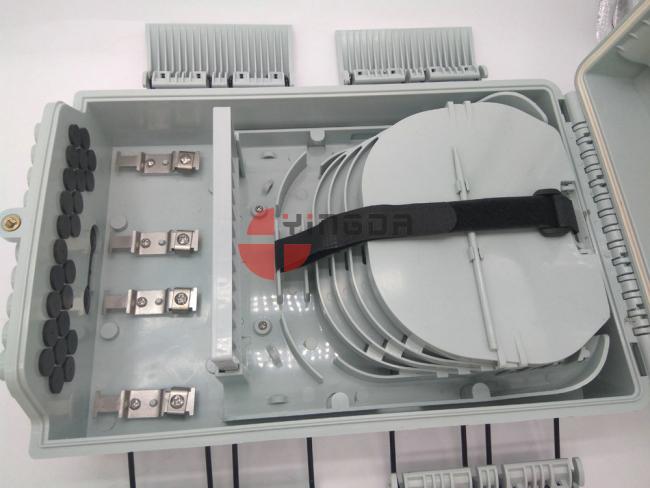

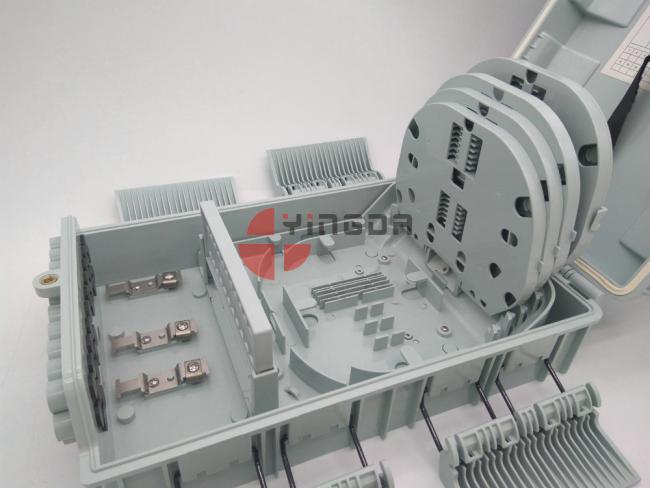

The interior showing, this box integrates fiber splicing, splitting, distribution, storage and cable connection.

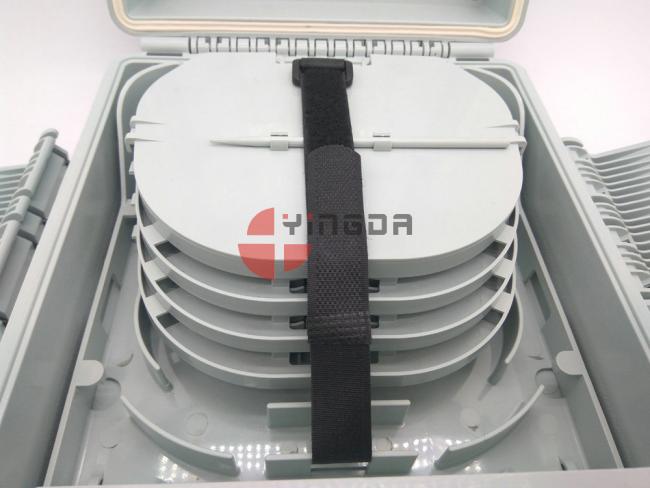

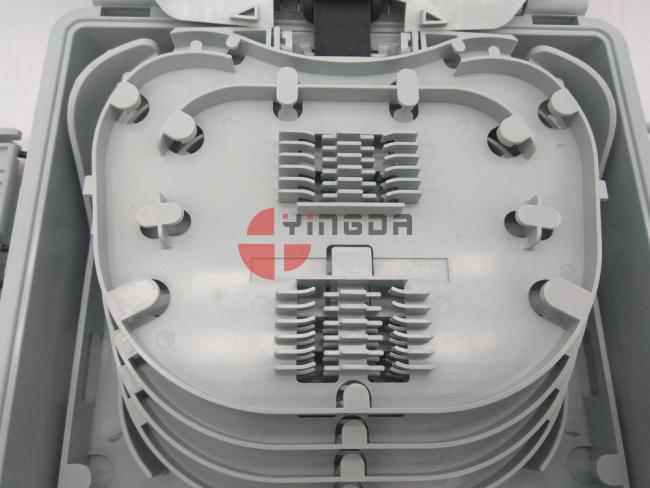

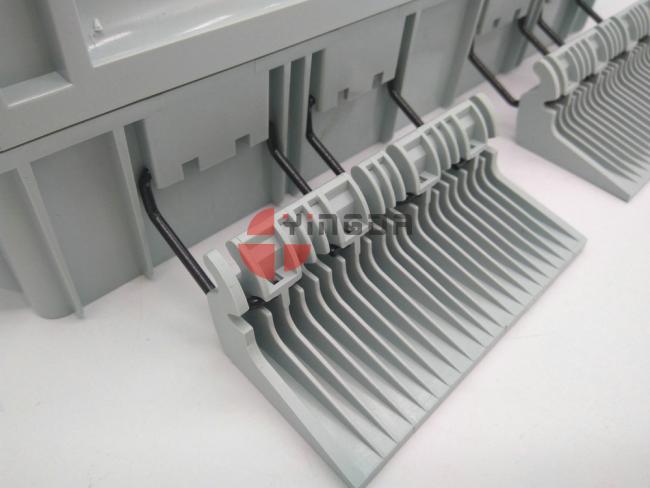

Show the details of splice trays. A total of 4pcs splice trays which can be flipped-up.

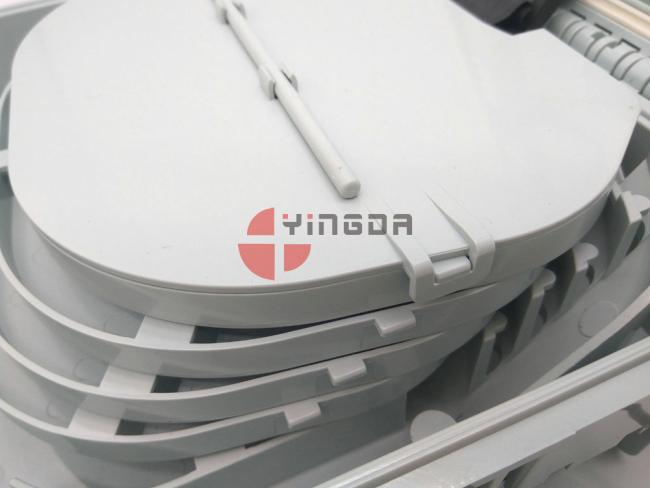

Each tray is for splicing 24 fibers max. There is a groove on the tray to put the steel tube of mini PLC splitter.

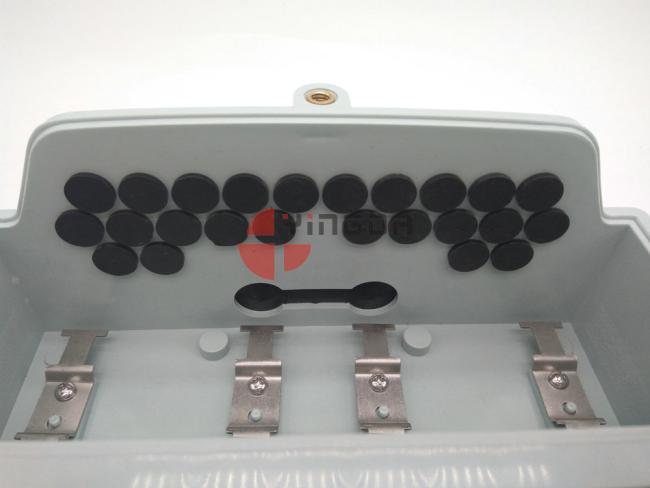

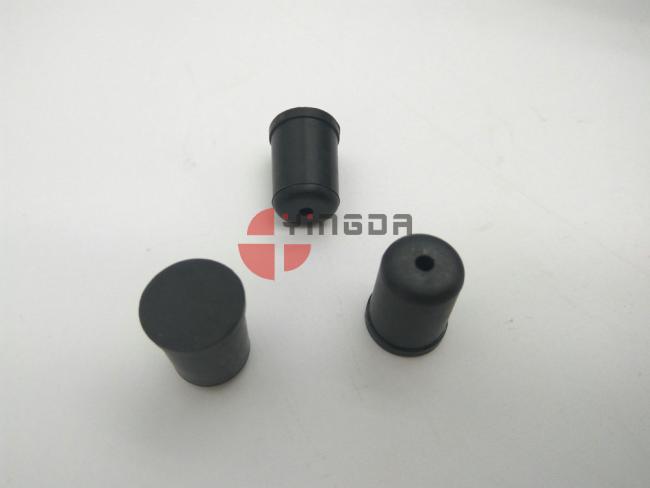

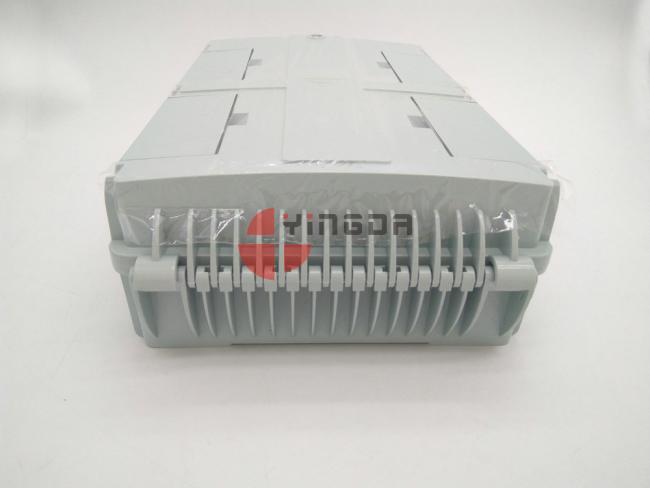

24 outports for drop cable, the plug in the outport can be taken out.
All ports showing.

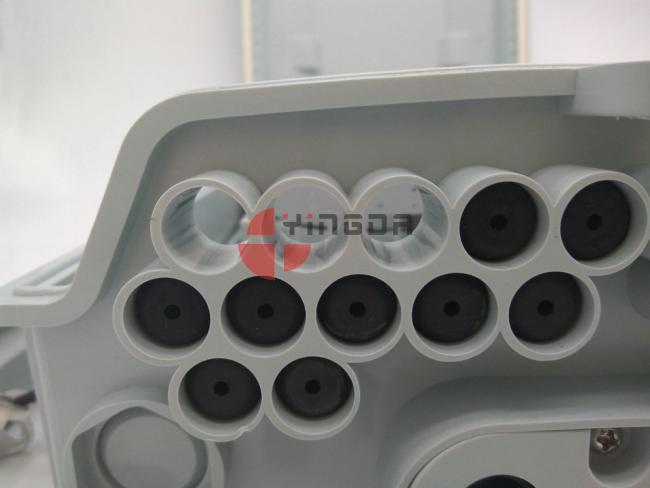

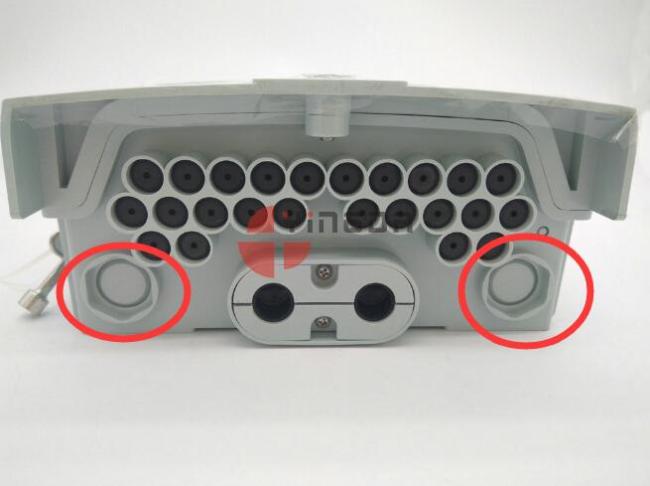

2 round reserved ports(as the red marked in the picture) can be installed cable gland if clients require.
Standard Accessories

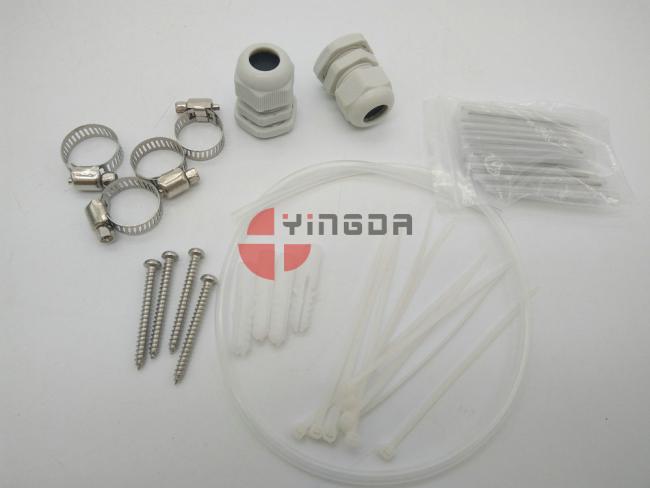

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves hose clamp, cable tube, wrench, cover, holder, rubber seal for cable entrance

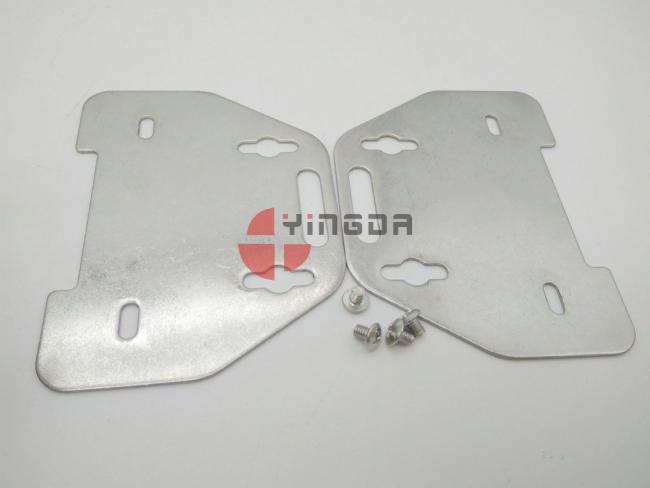

Optional Accessories---Pole ring

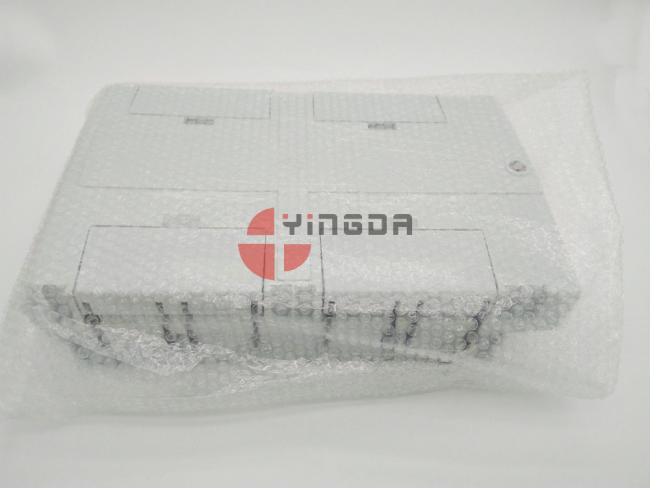

Packing box.
If any interest, please feel free to contact with us.
