DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails
Price:
0.18USD-4.29USD
MOQ:
100pcs
Delivery Time:
5-8 working days
Brand:
YINGDA
Product Description
DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails
Fiber optic Din terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.
Features:
- Standard size, light weight and reasonable structure
- Material: PC+ABS, adapter plate: cold rolled steel, it can be replace
- Flame Rating: UL94-V0
- Cable tray can be overturn, easy to manage.
- Optional adapter and adapter plate.

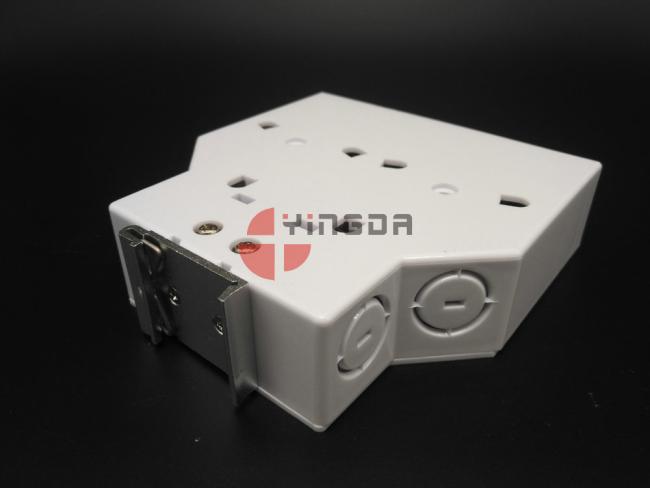

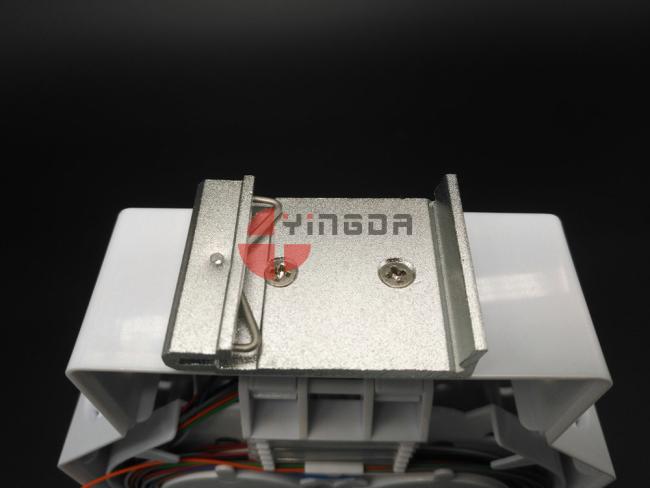

- Din guide rail, easy to install on rack panel in cabinet.
Specification
| Model | Adapter | Adapter Quantity | Max. Capacity |
| DIN-P12-SCS | SC simplex | 12 | 12 |
| DIN-P6-SCS | SC simplex/LC duplex | 6/12 | 6 |
| DIN-P6-SCD | SC duplex | 6 | 12 |
| DIN-P6-STS | ST simplex | 6 | 6 |
Size
Product Pictures

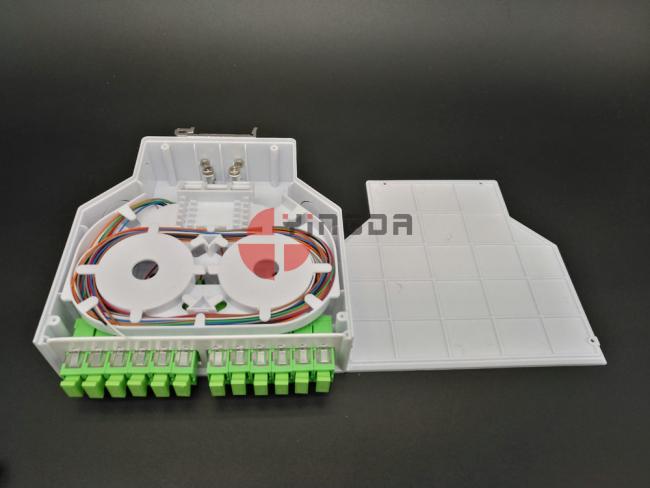

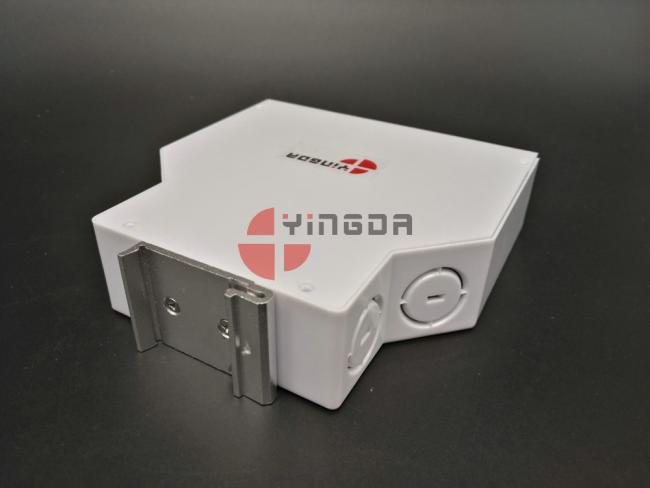

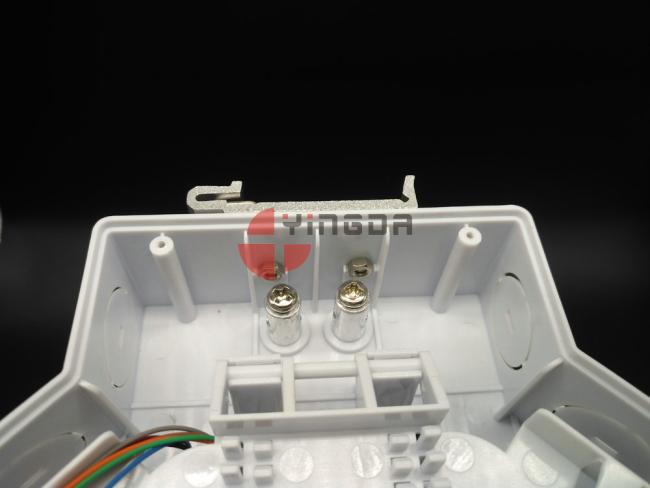

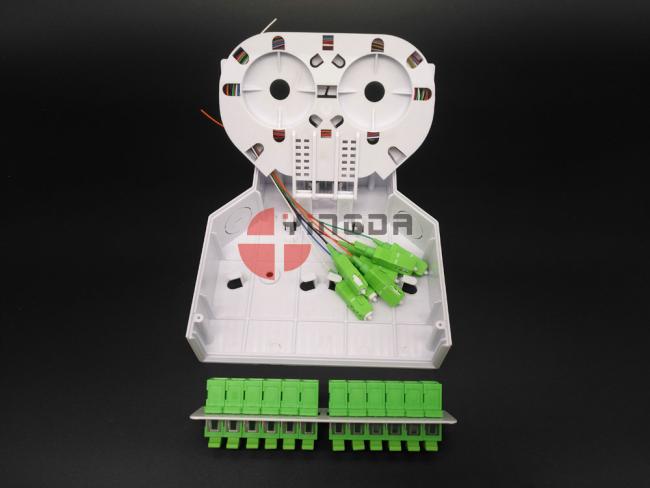

- The box consists of cover, 1pc of splice tray, box body, 1 pc of adapter plate.

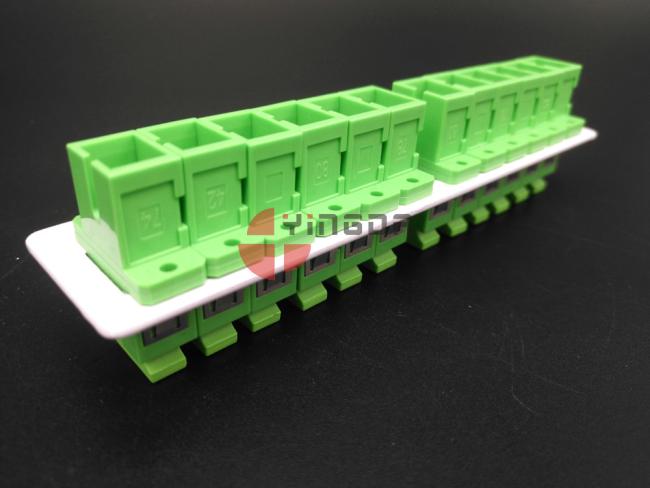

- Adapter plate is made of cold rolled steel, which can accomodate max. 12pcs SC simplex adapters.

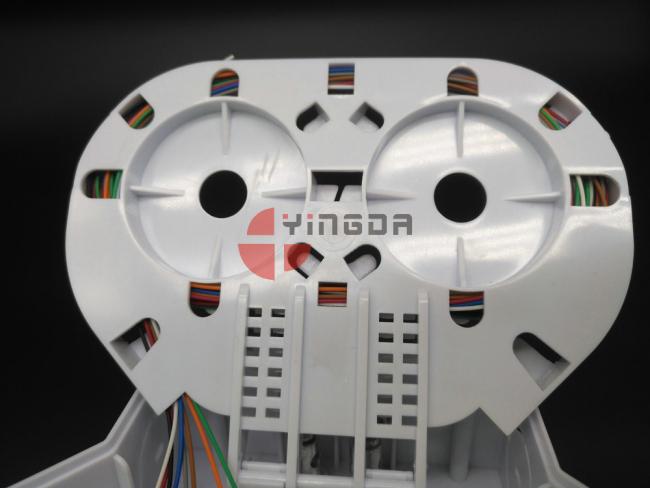

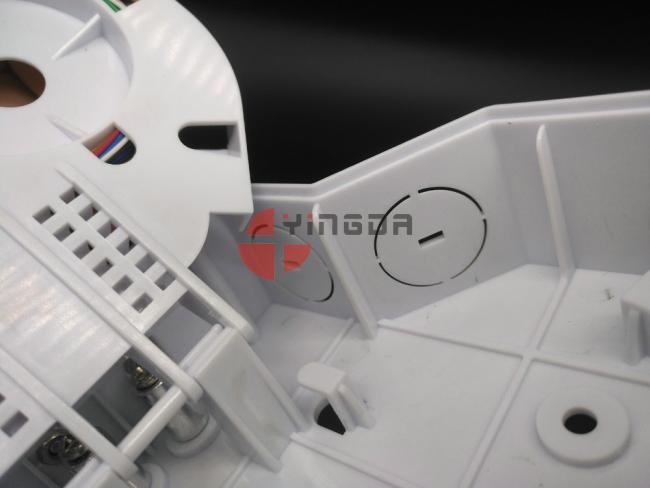

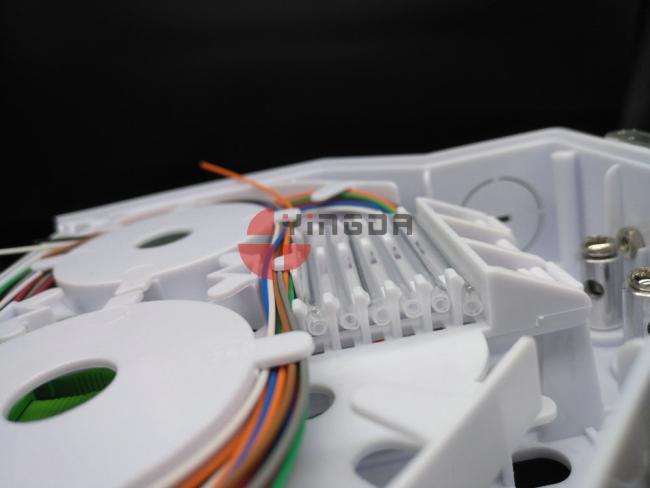

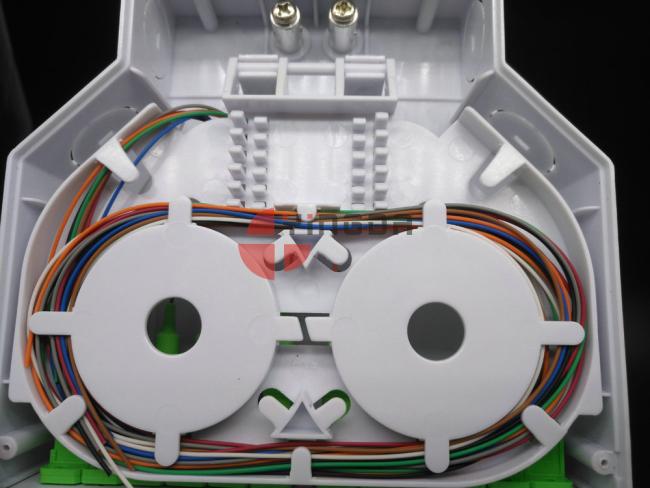

- The splice tray can coil and splicing fibers.

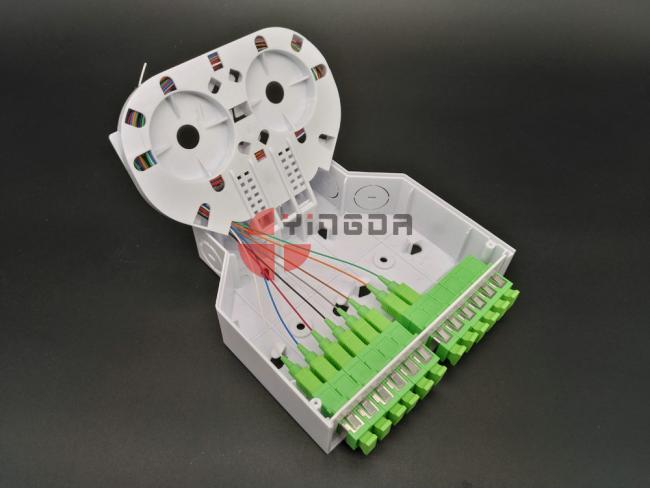

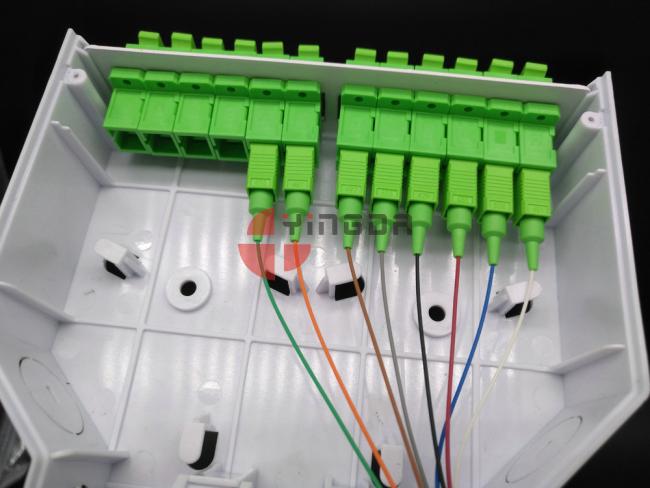

- Insert the connector of pigtails into adapters, then splicing the pigtails and other cables on the splice tray.
- The cold steel rolled adapter panel can be taken out.

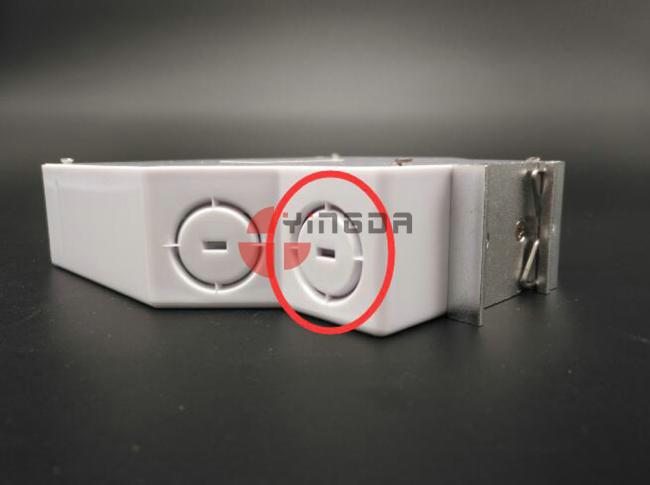

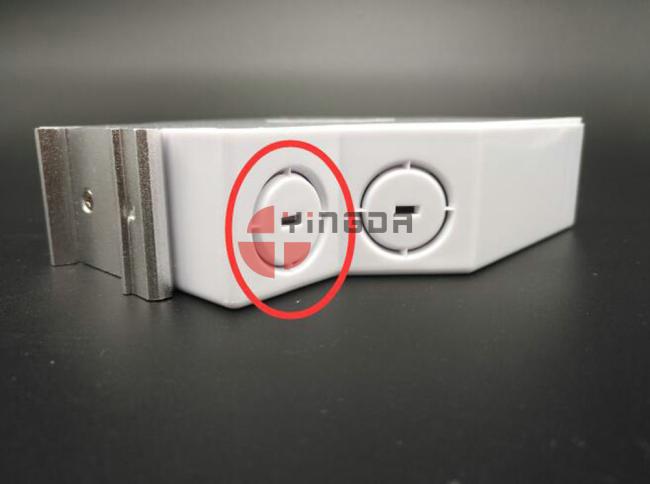

- Like the red circle marked, cable gland can be installed here.

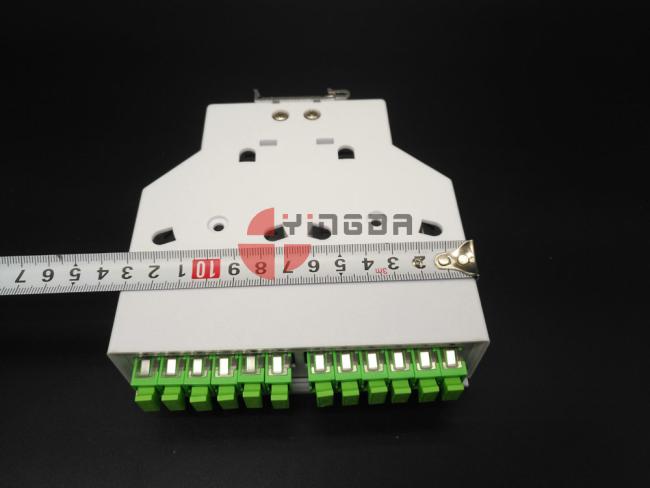

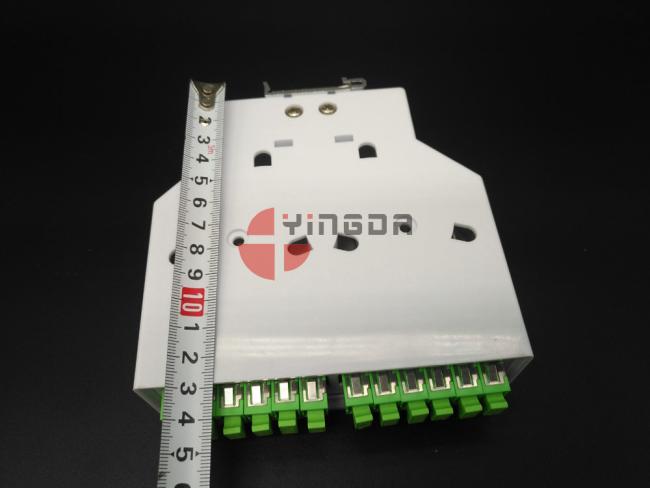

- Actual measurement data.
More details
Application:
- Telecommunications subscriber loop
- Fiber to the home (FTTH)
- LAN/WAN
- CATV

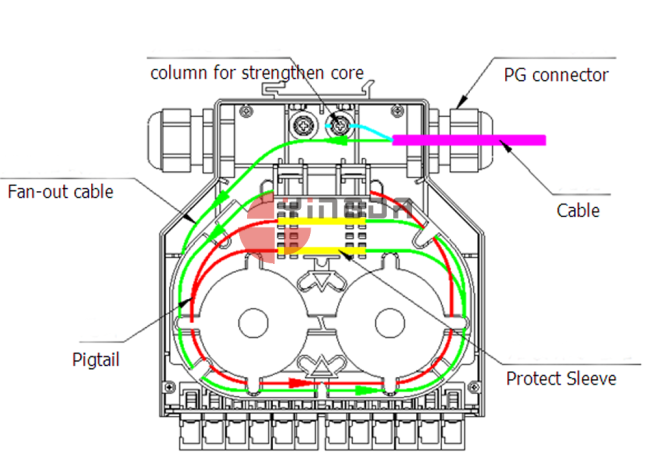

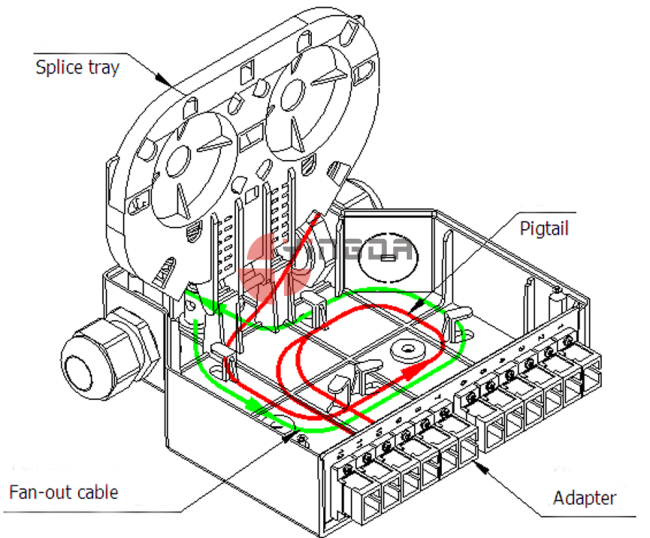

Cable Manage:
Packing informations
| Carton Size | G.W | Remark | |
| Inner box | 16.5*15.5*4.5cm | 0.4KG(around) | With bubble pack |
| External box | 48.5*47*35cm | 24KG(around) | 60sets/carton |
Rack Frame spec(optional):
| Name | Model | Size | Capacity |
| Rack frame | DRB-002 | 482.6*88*180mm | 12set |
