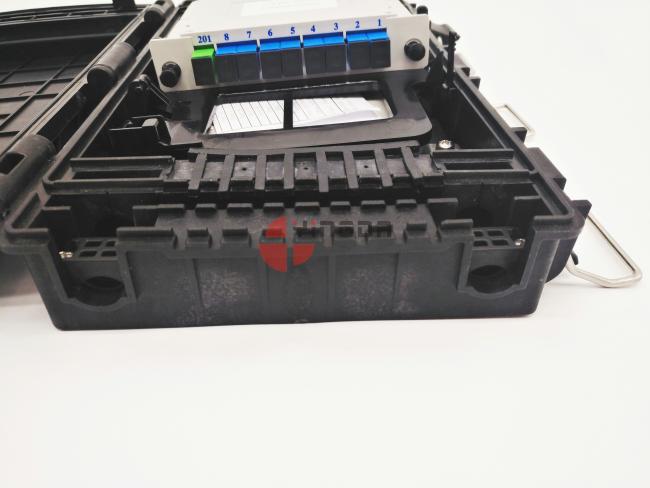

2 in 2 out Fiber Optic Splitter Closure 8 Drops with 1*8 Mini Splitter Module SC Connector​

GJS-2021 Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function, but also have the function of optical cable splitting and wiring, suitable for the installation of main optical cables and drop cables with different diameters.

Specification

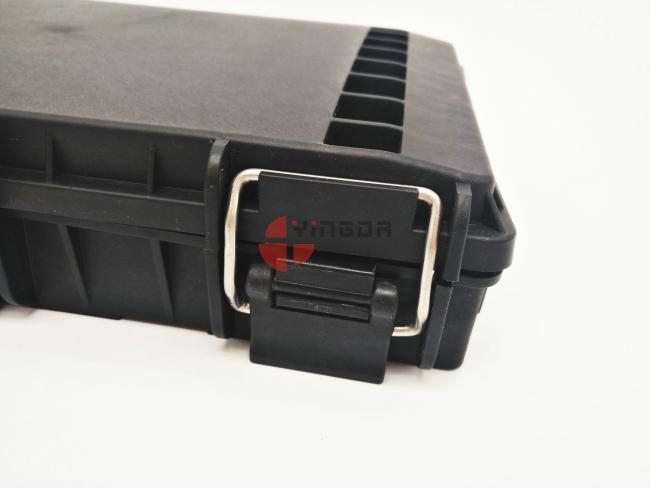

box with 3pcs stainless steel buckles                  side cable ports: 2round port, 8 pcs drop cable

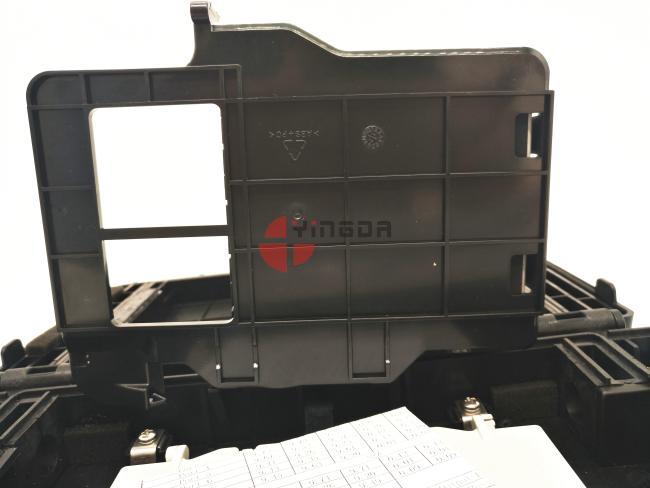

the rotate plate 75degree, layer is LGX module        bottom with 24fiber tray, white / black color

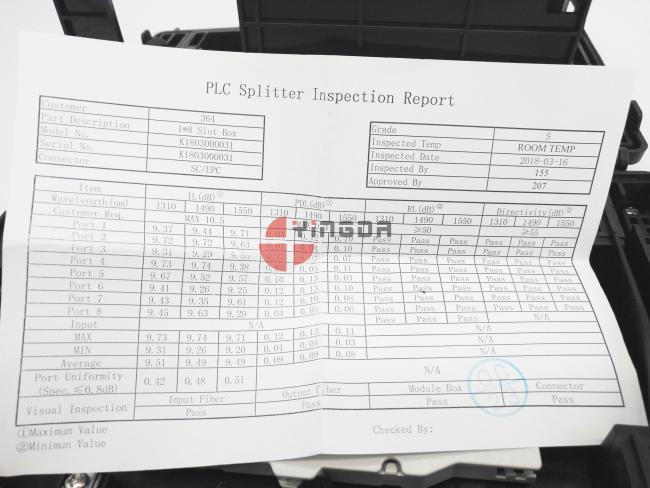

Standard accessory with user manual+aerial mount kits        plc splitter inspection report

Feature

1. The closure adopts horizontal mechanical sealing and advanced internal structure design.
2. It can be installed one 1:8 Cassette PLC splitter.
3. 8 pcs 2*3mm drop cable both ends in and out.
4. The closure is spacious enough for winding and storing fibers.
5. The patented sealing structure keep good sealing performance after re-entry and re-using.
6. Easy open and close of closure without tool.

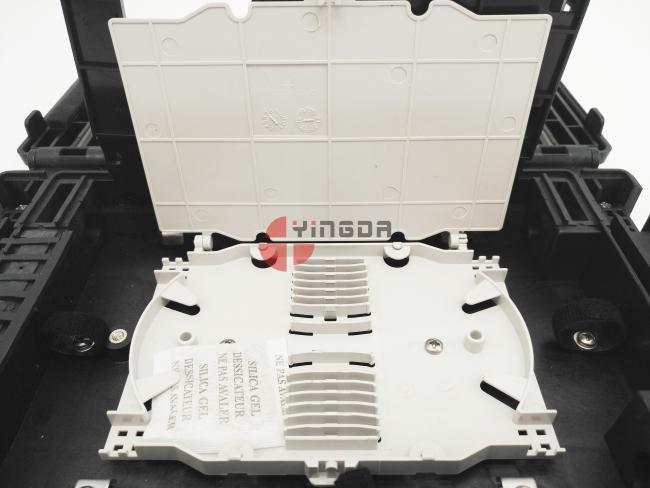

7. 24cores Fusing Splice available

Application

1. Suitable for bunchy fibers
2. Aerial, wall-mounting
3. It’s especially applicable to FTTH optical fiber distribution

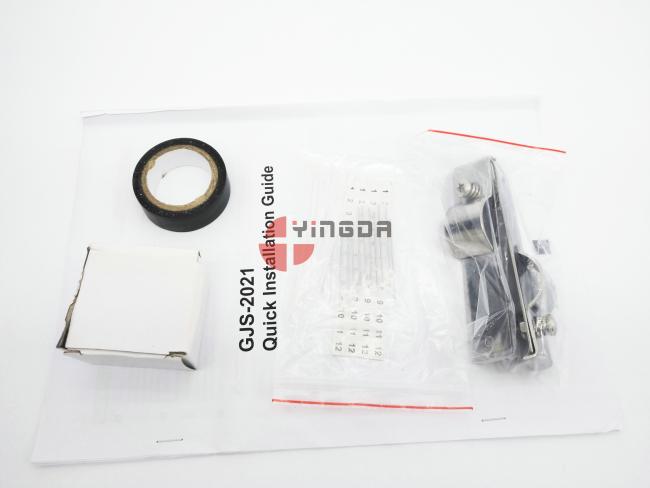

Standard accessories

seal type 1roll, labeling paper, abrasive cloth, insulation tape, nylon tie,desiccant, heat shrinkable protective sleeve, butter tube, hanging hook/1set
