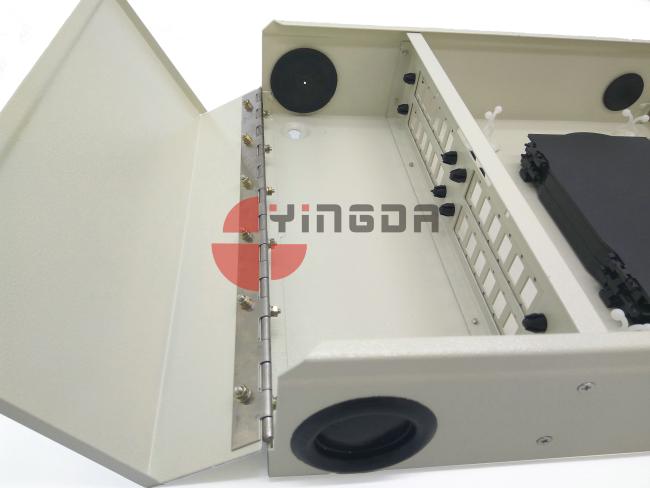

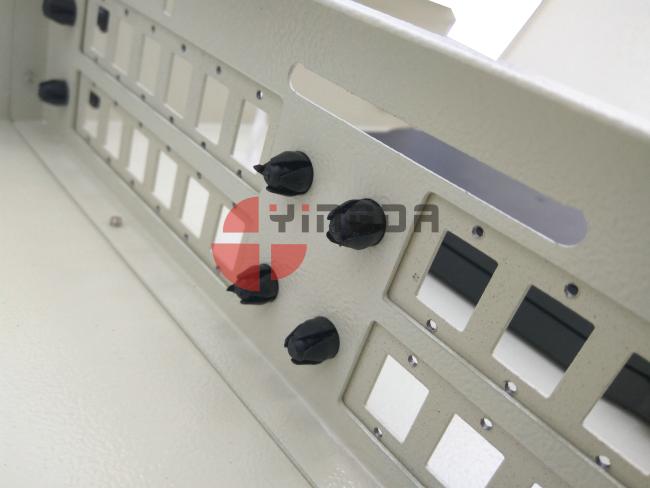

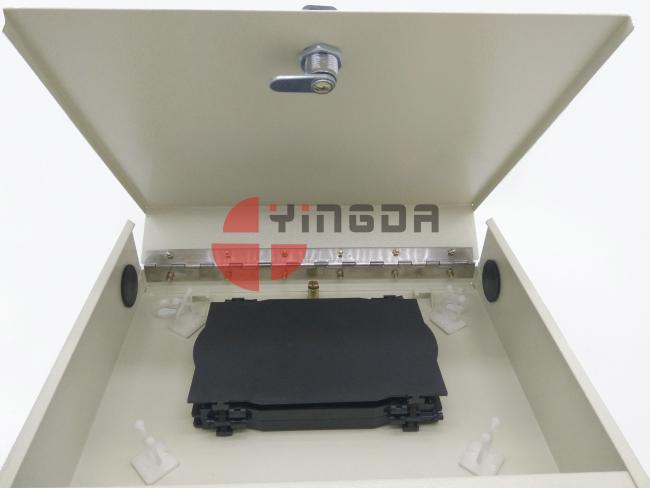

Outdoor Wall Mount 24 Cores Fiber Optic Distribution Box Metal
GP(05)D Optical Fiber Distribution Cabinet
Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room.

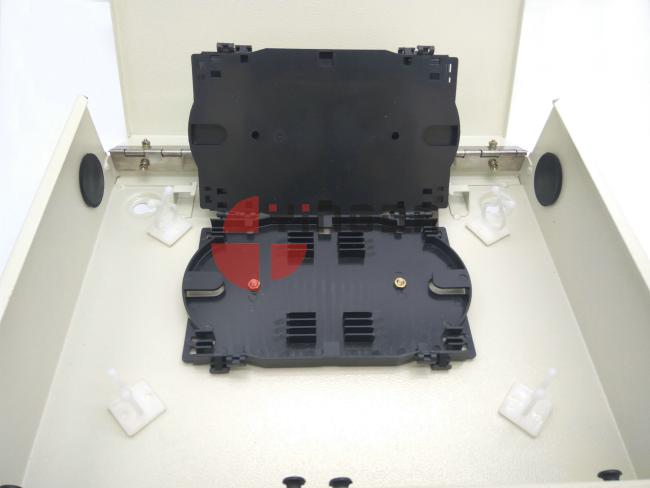

The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.
Provide fusion and storage appliance for optical cables.
Reliable protection appliance of fixing, stripping and earthing for optical cables.
Whole range protected design for fiber lay to ensure the bending radius ≥40mm
Provide various accessories to avoid any unexpected damage to the fiber
Specification
| Model | GP(05)D-SC24 |
| Dimension/mm | 350*300*80 |
| Max. Capacity | 24cores / 1tray |
| Max. Adapter | 24pcs SC adapter |
| Material |
Body: cold rolled steel sheet, electrostatic spraying Splice tray: ABS |
| Installation method | Outdoor wall mount |
| Package information | |
| Quantity / Carton box | 4pcs |
| Carton size/mm | 405*355*605 |
| Gross weight /Carton box | 19kgs |
