Waterproof 4 Ports 2 Door Fiber Optic Termination Box ODF Wall Mounted With SC/APC adapters

Model: GP(05)D

Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room. The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.

Provide fusion and storage appliance for optical cables.

Specification

Features

• 2door with key to make sure safe and convenient oepration
• distribution and fiber storage is seperate room, better protection
• adapter panel is metal sheet, and sperated with clip, can take off to install adapter and pigtail, easy to oeprate
• adapter panel can be changeable into SC FC LC ST adapter on demand
• Reliable protection appliance of fixing, stripping and earthing for optical cables.
• Whole range protected design for fiber lay to ensure the bending radius ≥40mm
• Provide various accessories to avoid any unexpected damage to the fiber
• all material is 1.2mm metal sheet, high quality.
• all metal parts is stainelss steel material, long life span
• cable ports with rubber seal and whole box is waterproof, suitable for outdoor application
• wall mount with expansion screws

More pictures

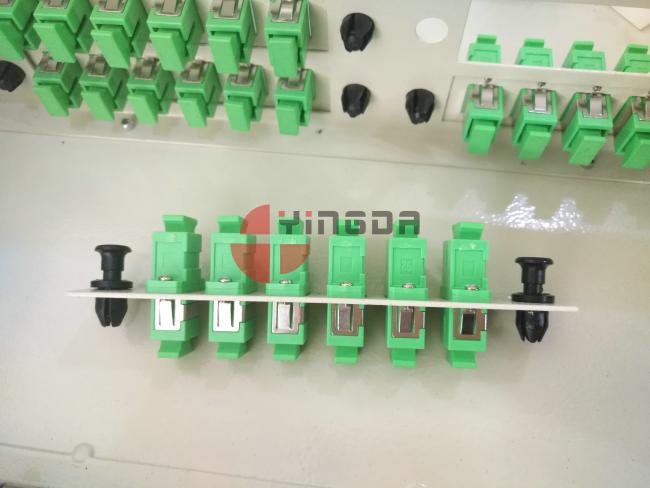

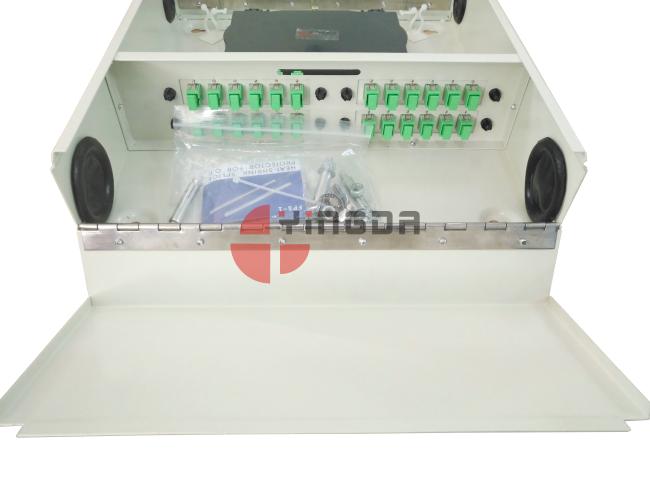

4pcs adapter panel, repeatable and changeable, it can use SC,FC, LC, ST or other types

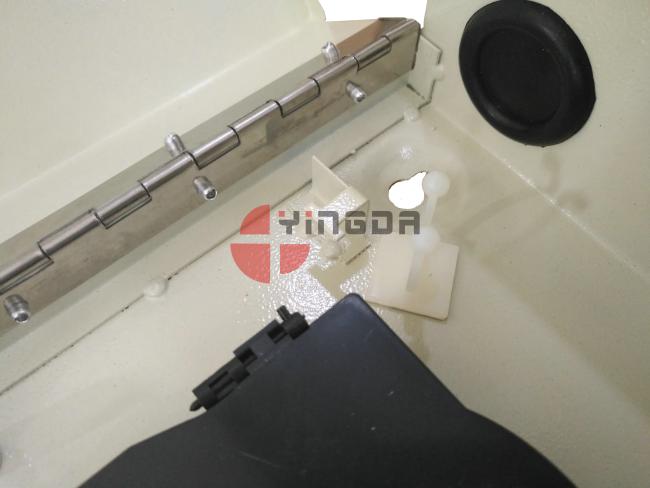

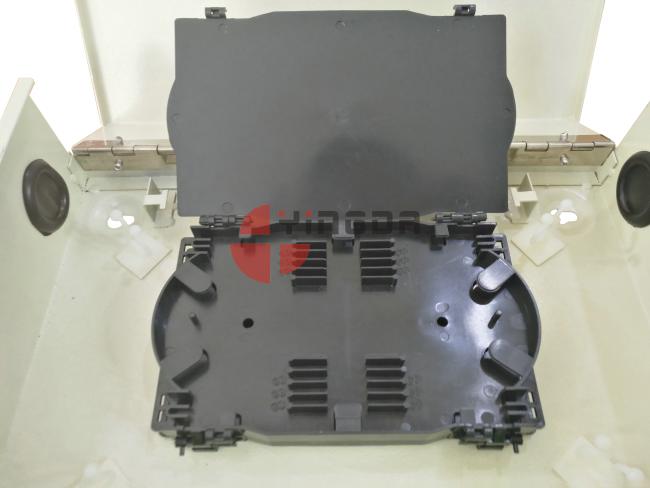

cable port with rubber seal, stainelss steel hinge                     24fiber tray- black with cover

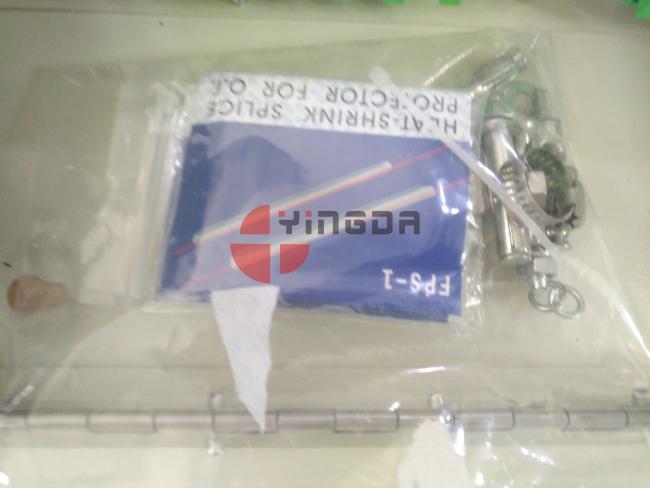

    accessory bag with sleeves                                  master box for delivery, with customer label
