1*16 LGX Splitter Fiber Optic Distribution Box 16 Ports with Uncut Port IP68

Price Negotiable
Price: 1.0USD-18.6USD
MOQ: 100PCS
Delivery Time: 5-8 working days
Brand: YINGDA
Product Description

1*16 LGX Splitter Fiber Optic Distribution Box 16 Ports with Uncut Port IP68



FDB0216M fiber optic distribution box can be done splice tray type, LGX PLC splitter type and adapter type. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Feature

  • Water-proof design with IP-65 Protection Level.
  • Integrated with 1*16 LGX Module PLC splitter plate.
  • All stainless metal plate and anti-rusting bolts, nuts
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splicer or mechanical splice
  • 2 Pcs of 1*8 Splitter can be installed as an option

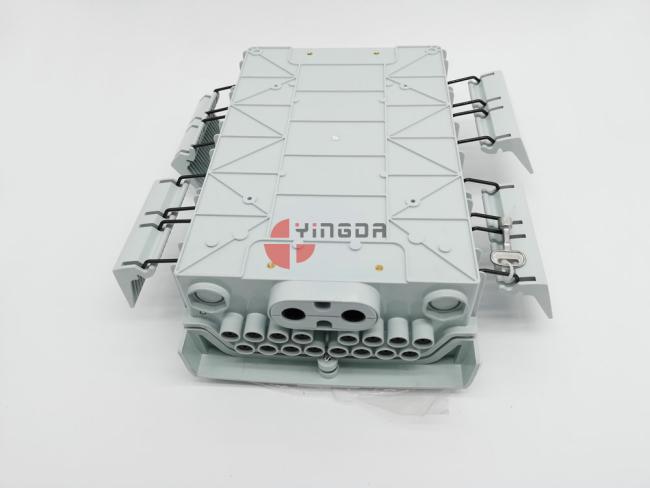

  • Mechanical sealing structure and mid-span cable entry.

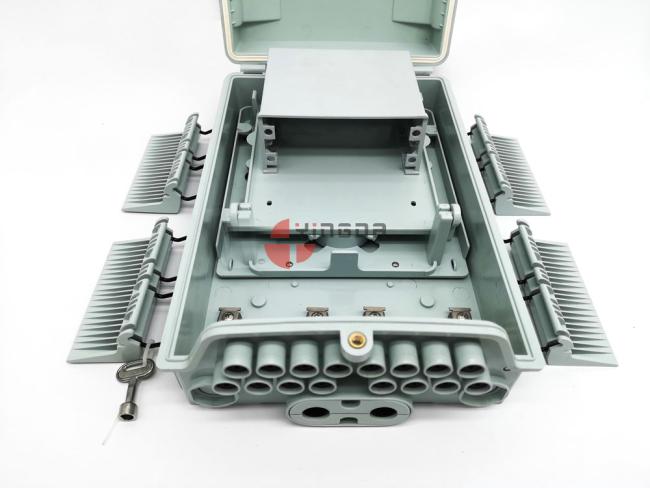

  • 16 ports cable entrance for drop cable



Specifications

Model FDB0216M
Material PC+ABS
Dimension 345*220*95mm
Cable Entry 1 uncut port: 10-16.5mm; 2 reserved cable entrance: 8-16.5mm
Drop cable port 16 ports
Applicable cable diameter 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable
Sealing structure Mechanical sealing
PLC Splitter Max. LGX module 1x16 Splitter, or 2pcs 1*8/1*4/1*2 plc splitters
Color Gray
IP Grade IP68
Application Wall mount, pole mount
Weight 1.7KGS
Midspan entry Yes
Storage (tube/micro cable) Yes

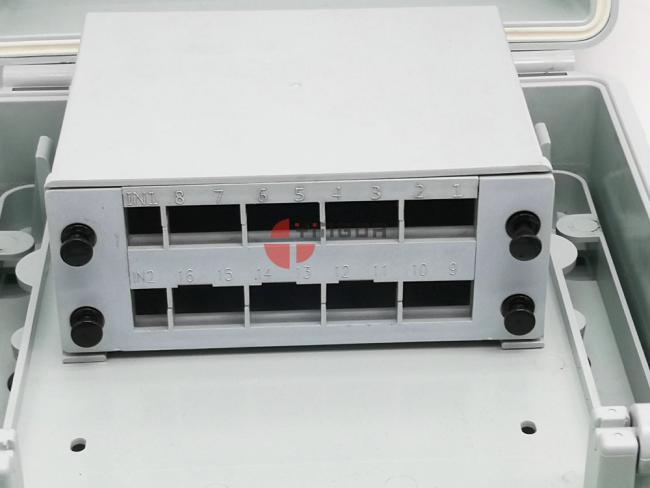

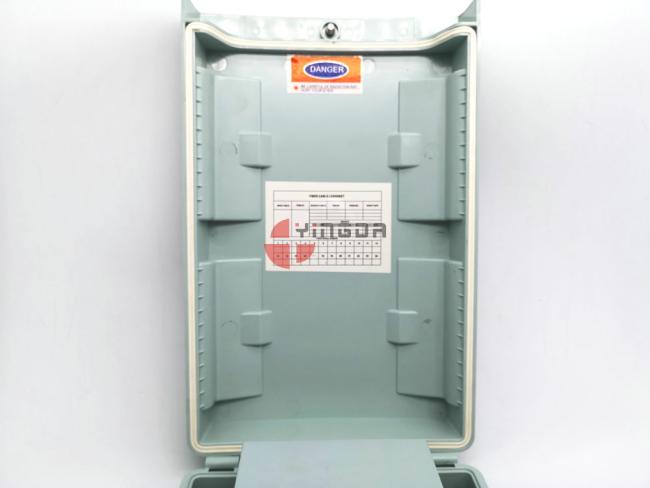

                       LGX Module PLC                                                        Cover

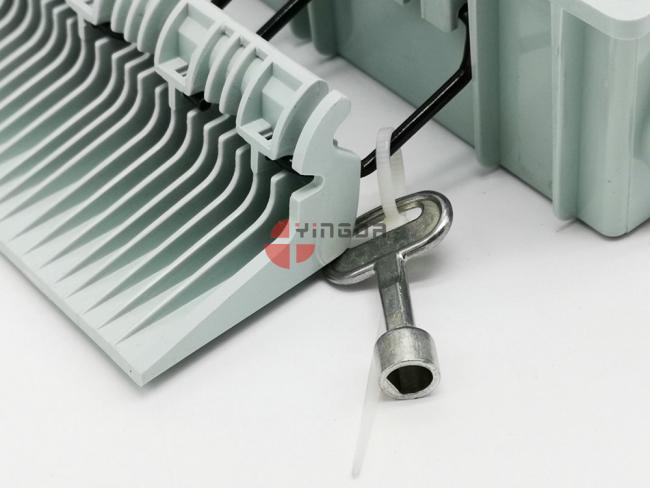

                      Buckle and Key                                                        Accessories



Applications

  • Wall mounting and pole mounting installation
  • FTTH pre-installation and filed installation
  • 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable



Standard Accessories

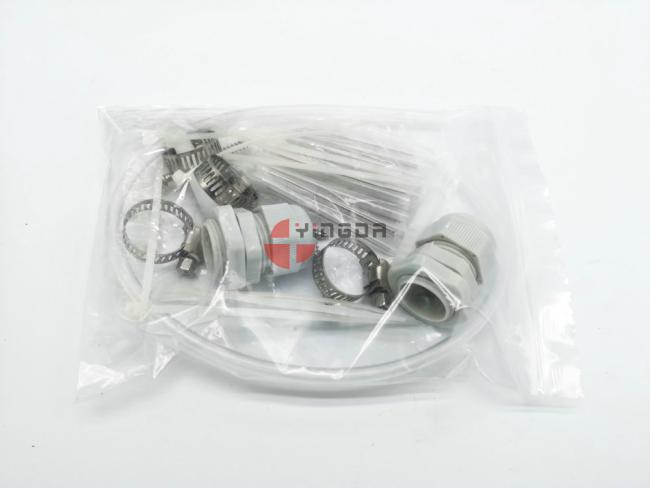

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves hose clamp, cable tube, wrench, cover, holder, rubber seal for cable entrance.



Optional Accessories---Pole ring
