Fiber Optic Splice Closure ( FOSC GJS-D023 ) is large capcity of splice enclosures, which is widely used in fttx networks, it maximum can use 24pcs splice trays at both sides of the supporting plates in middle.
Feature:
1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier

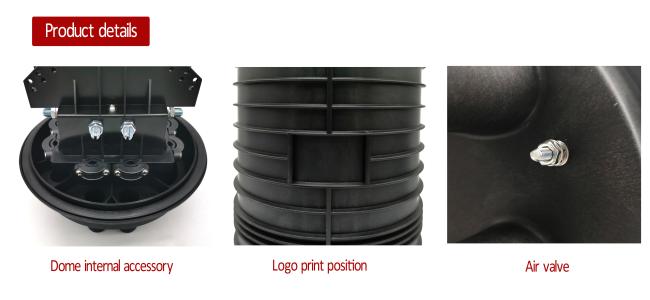

5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
Application
- The Scope of application is :aerial,underground,duct, wall mounting, pipeline,hand hole, etc.
- The ambient temperature ranges from -40 to 65℃.
Specification
| Size (L×W×H) | Cable ports | Cable Diameter | Max. Capacity | Core capacity per tray |
|
515×310mm |
7pcs (1oval + 6round ports )
|
φ38mm×1 |
Bunchy: 288 cores Ribbon: 864 cores
|
Bunch:24-288(cores) Ribbon:up to 864(cores) |
---------------------------------------------------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------------------------------------------------------

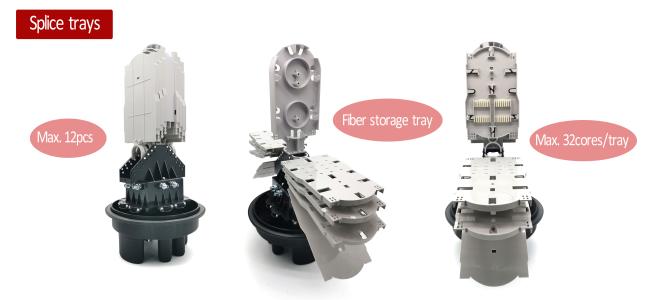

Fusion Splice Trays
| Model No. | Capacity | Size( L×W×H) | |
|
FOST003 |
Bunchy | single: 24 cores |
120×196×10mm |
| Ribbon |
in normal:6 pieces max.:12 pieces |
||
----------------------------------------------------------------------------------------------------------------------------------------------------
| Main Component | |||
| No. | Name of components | Quantity | Usage |
| 1 | FOSC(cover) | 1 set | Protecting fiber cable splices in whole |
| 2 |
Fiber optic splice tray(FOST) |
Fixing heat shrinkable protective sleeve and holding fibers |
|
| 3 | Fiber holding tray | 1 pcs |
Holding fibers with protective coat |
| 4 | Base | 1 set | Fixing internal and external structure |
| 5 | Plastic hoop | 1 set | Fixing between FOSC cover and base |
| 6 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom |

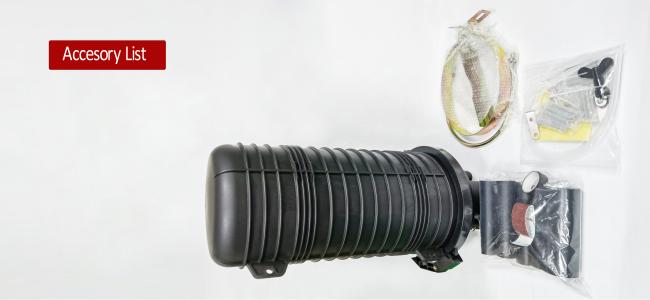

| Main accessories and special tools | ||||
| 7 | Heat shrinkable protective sleeve(single)and Branching clip | Protecting fiber splices | Configuration as per capacity | |
| 8 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
| 9 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 10 | Earthing wire | 1 piece | Putting through between earthing device | |
| 11 | Abrasive cloth | 1 piece | Scratching fiber calbes | |
| 12 | Labeling paper | 1 piece | Labeling fiber | |

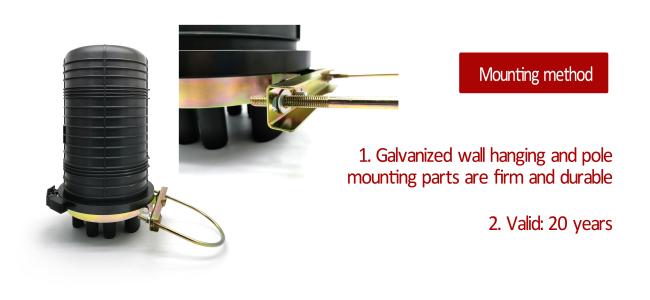

| 13 | Metal hoop | 1 set | For wall mounting and pole hugging | |
| 14 | Heat shrinkable fixing sleeve(mass) | Fixing and sealing mass of fiber cable | Configuration as per requirement | |
| 15 | Aluminum-foil paper | 1 piece | Protect the bottom of FOSC | |
Pack information
4PCS/ CARTON BOX, CARTON SIZE:58×58×54.5CM, 15.6KG/CARTON
