IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material
IP65 Outdoor Wall Mount 16 Cores 1x8 Coupler Optical Fiber Splice Splitter Box
Model:FDB0216W
ODP FDB0216W type Fiber Optic Splitter Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Specification
| Model | FDB0216W |
| Dimension(L*W*D) | 274*175*82 mm |
| Max capacity | 1x8 micro mini plc splitter 2 pieces |
| SC simplex adapter 16 pieces | |
| Fusion splice 16 fibers in a splice tray | |
| Environmental requirement |
Working temperature:-40℃~+60℃ Relative humidity:≤85%(+30℃) Atmospheric pressure:70KP~106Kpa |
| Main technical |
Insertion loss:≤0.2dB UPC return loss:≥50dB APC return loss:≥60dB Life of insertion and extraction:>1000 times |
| Thunder-proof technical |
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC) IR≥2MΩ/500V The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover ;U≥3000V |
Features
1.Total enclosed structure with brackets and metal screw
2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.
3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4.Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.
6. Wall-mounted or poled-mounted, both indoor and outdoor use.
Product Details

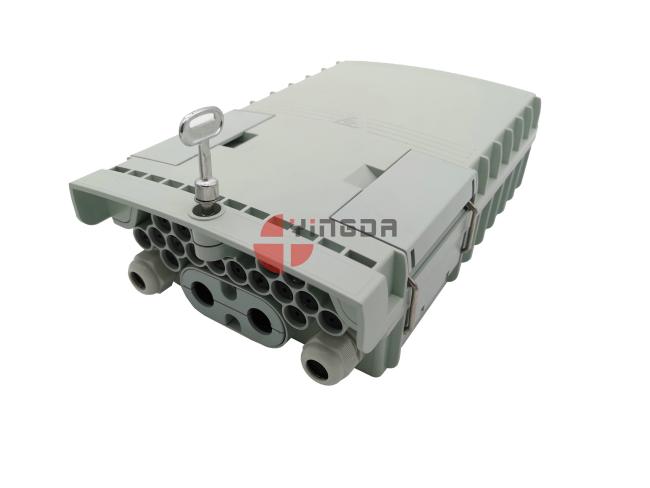

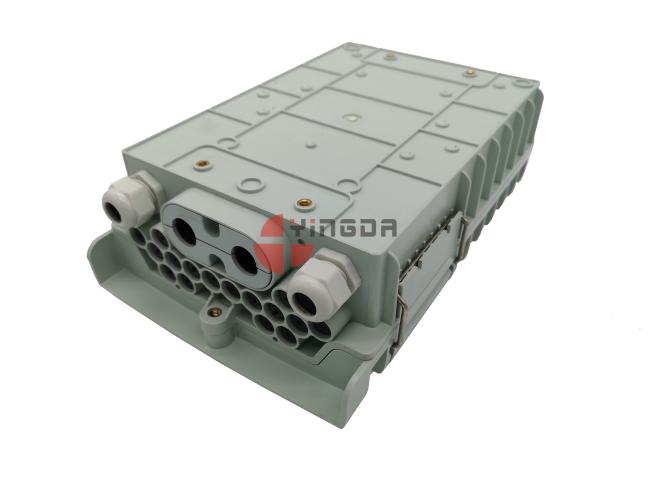

The box is total enclosed with key, and 2 pieces of buckles to fix it.
it is waterproof Ip65, anti-UV, anti-dust, anti-wet, etc, it can be wall mount or pole mount, with screws holes at back of the box.
cable ports: 1 express port, 2 round ports, and 16outputs for ftth (fiber to the home) figure-8 drop cable.
TYPE A TYPE B

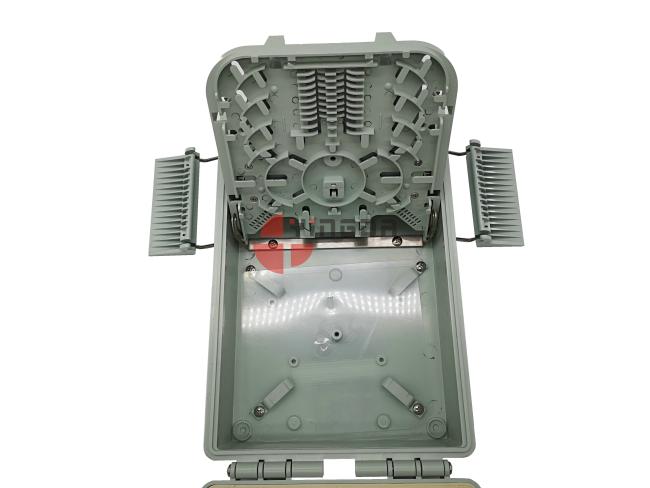

2 Types of Rotate plate:

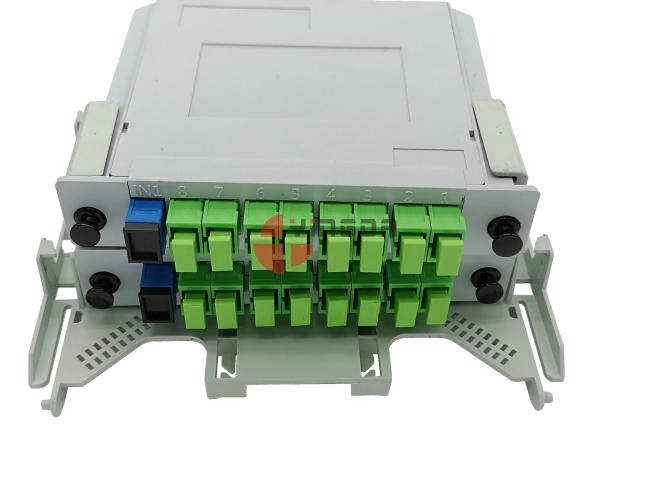

TYPE A -- LGX cassette module splitter max. 2 pieces 1x8 or 1 piece 1x16 plc splitter with SC connectors
TYPE B -- adapter panel on the top side, it can fix the output of the splitter, and back side for splitter input fixtion with adapter at both sides, and steel tube slot fixtion.
Fibre Fusion and Storage Area:

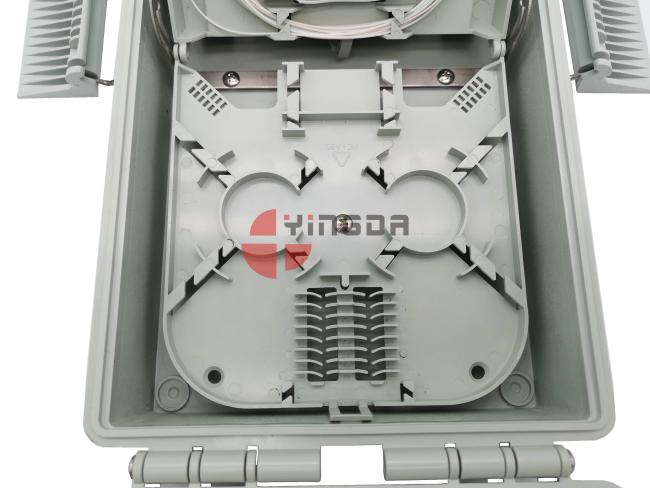

The second tray is for fiber optic fusino and management, max. 16 cores single fiber for fusion splice.
The bottom of the box is for fiber storage with cable routing and ties.

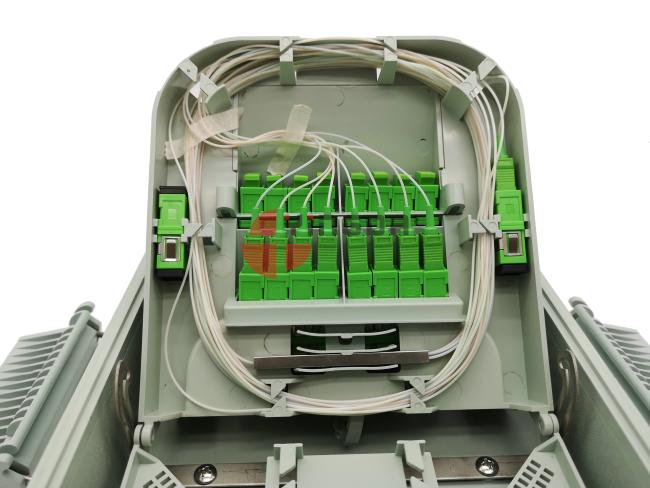

Adapter plate:

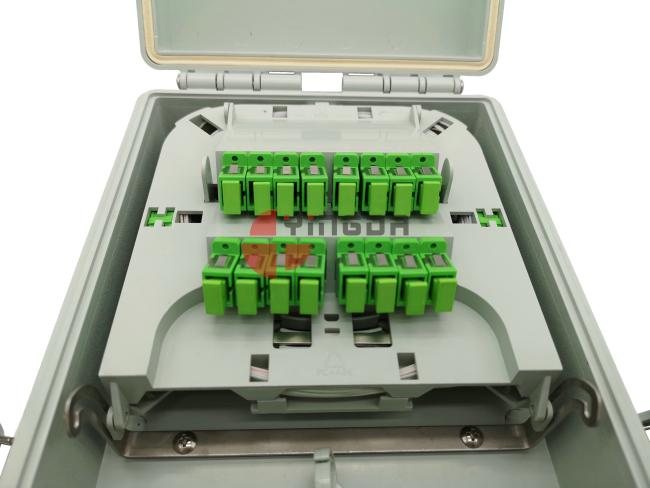

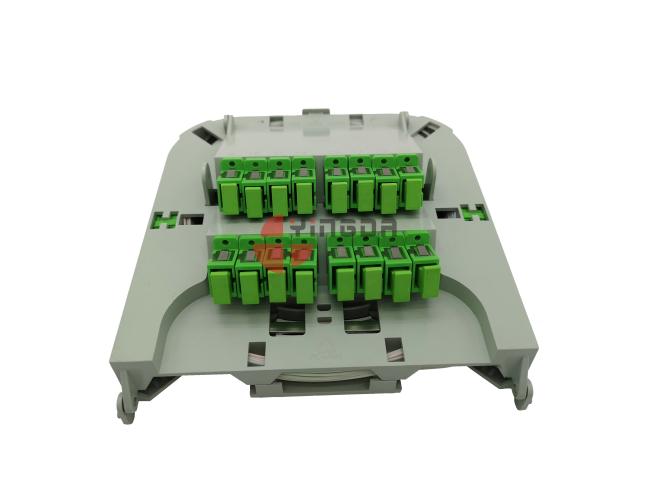

all the plate is flip up design, at front max. 16 pcs SC adapter to connect the drop cable connector and the splitter outputs connectors, back 2 pcs SC adapter for splitter input connector fix.
At back there is also 2 pcs slot for 1:8 plc splitter steel tube.
the splitter input connectors can be put on both side of the tray, to distinguish the input and outputs. you can use SC/UPC adapter or blue, red,orange or other color of the loose tube to distinguish too.

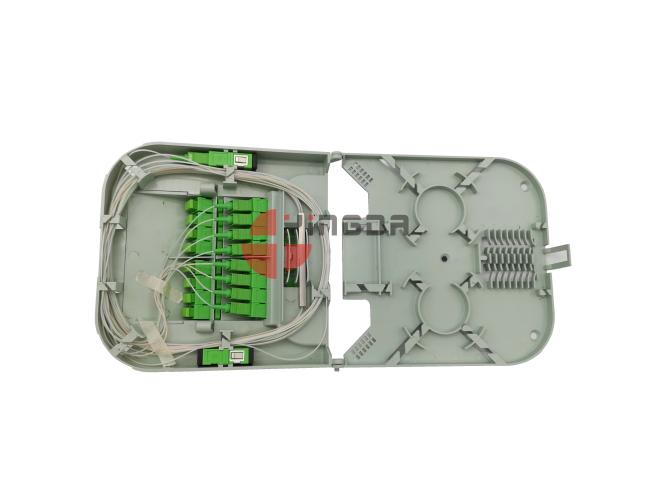

The plate is totally seperate design, it can be taken off by hand, and fix on the bottom with a metal unique brackets, it is easy to install and un-installation, fast and quick. ABS+PC material, unique design.
When need pre-terminated pigtails, adapter or splitters, first installl them, then fix the tray on the box, then finish the assembly. When on-site construction, you can directly insert the connectors on the top adapter plate, then finish distribution.
Package information
| Packing | 500*450*400MM |
| Weight | 20kgs |
| Quantity | 10 pcs/box |
Standard accessory

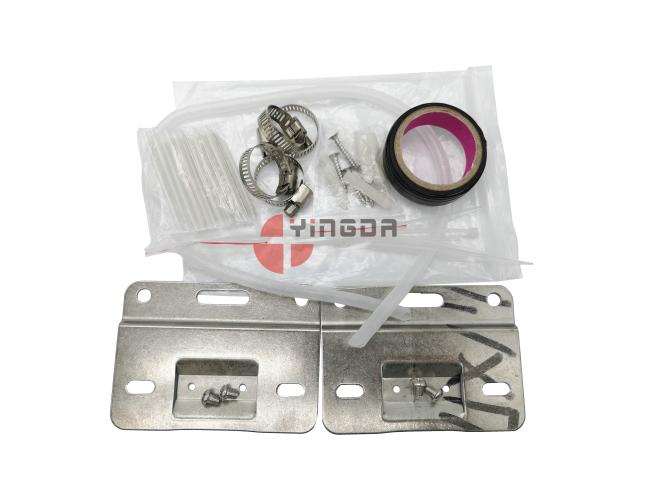

Screw, base, cover, connecting screw, rubber seal, lock blot, door clip, door clip conecting bracket, loop ring, flap fixed bracket, flip plate A/B/C, flip bracket, fiber fixer, grouding bracket, waterproof blocker, cable exit mat,etc.
