Outdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 Splitter
Outdoor 96 Cores Plastic Wall Mounted Optical Cable Distribution Box for 1X64 Splitter fiber access terminal
96cores fiber termination box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features
- 6 cable ports, 1mid span
- Industrial standard user interface,max. can hold 96 pcs SC
- Made of high impact engineering plastic
- Can accommodate 1x4,1x8 & 1x16,1x32,1X64 PLC splitter LGX module or adapter panel, 2xN series is available
- Anti-UV, Ultra violet resistant and rainfall resistant
- Outdoor wall mount or pole mount
- Up to 96 FTTH drop cables
- outdoor use, IP65
Specification
| Model | FDB0296D |
| Dimension(W*D*H)mm | 490*400*150mm |
| Max. Capacity | 96 fibers |
| Cable ports | 6ports |
| Cable diameter(mm) | 6:Ø20;2:Ø16 |
| Max. adapter | 96 SC |
| Max. Splitter | PLC 1:64(1pc); PLC 1:32(2pc) steel tube or LGX module |
| Color | gray |
More products

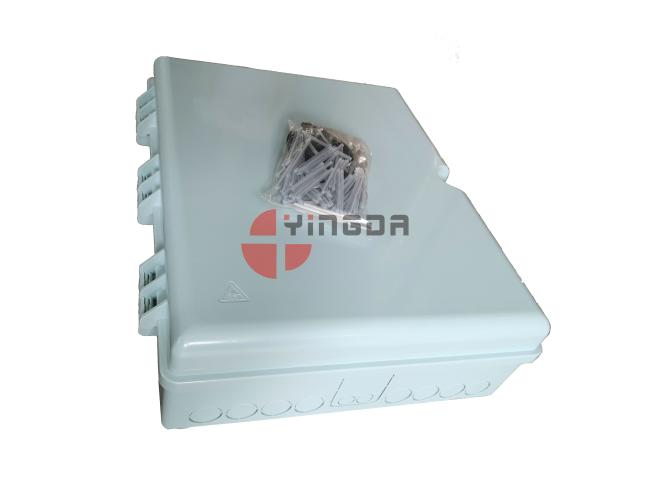

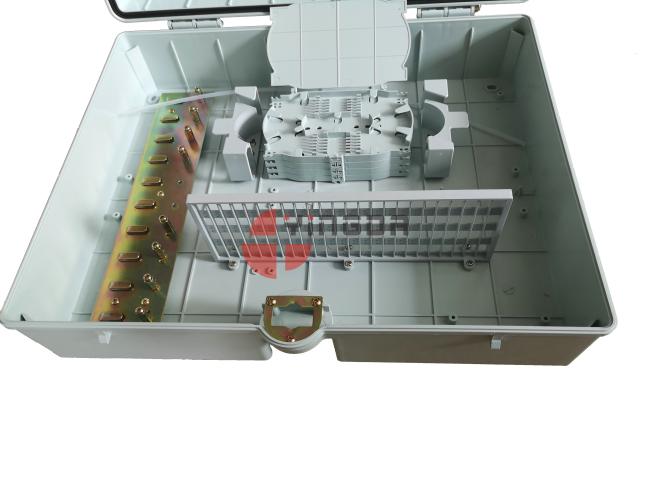

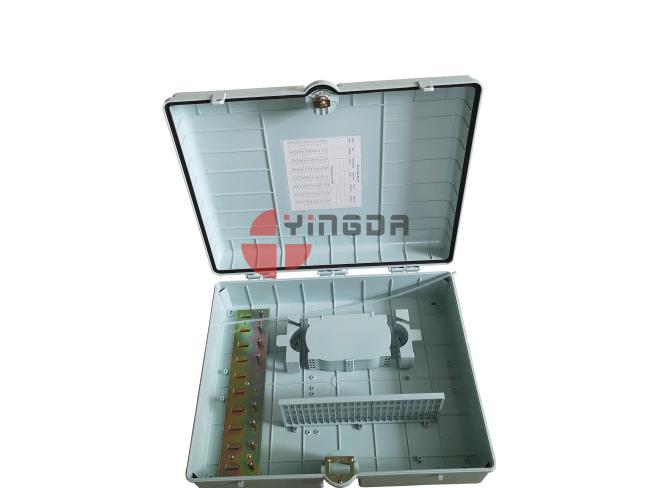

product overview: 1box with 1 accessory bag, inneral is for SC adapters and mini splitter available.

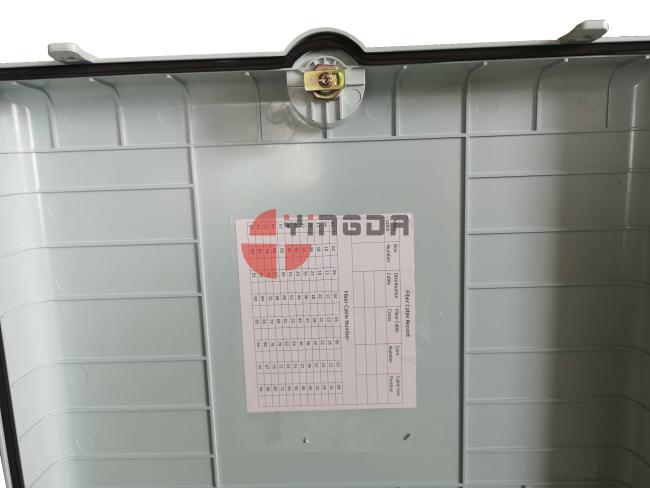

metal key with buckles for open and close, with 1 cable wring label on the cover inside.

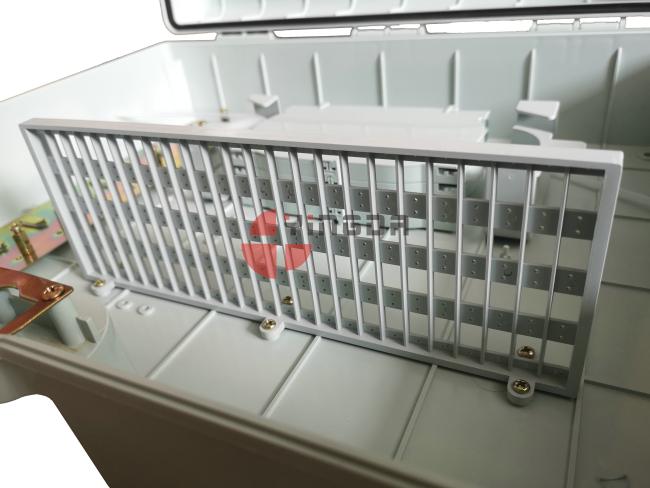

internal can use max. 96 cores SC fiber optic adapters, and with 4 pcs 24fiber trays,max. fusion 96cores bunchy fiber

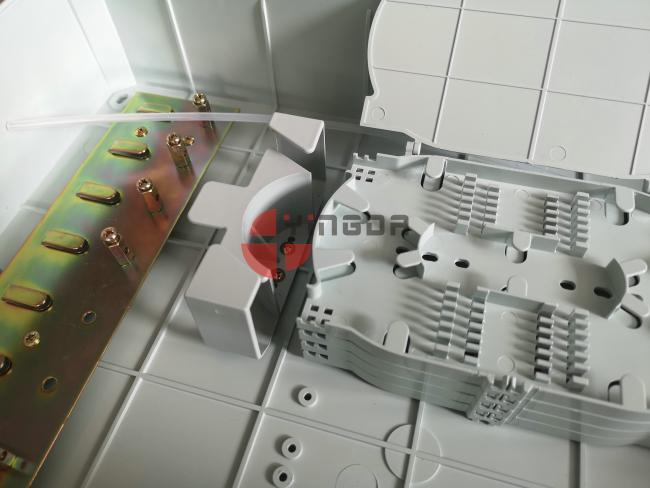

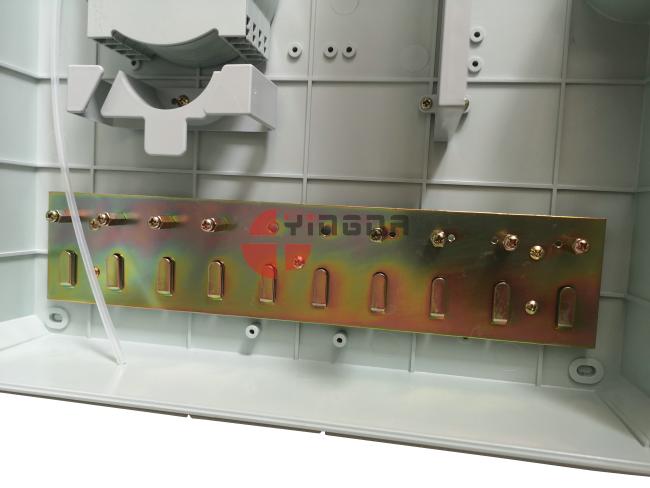

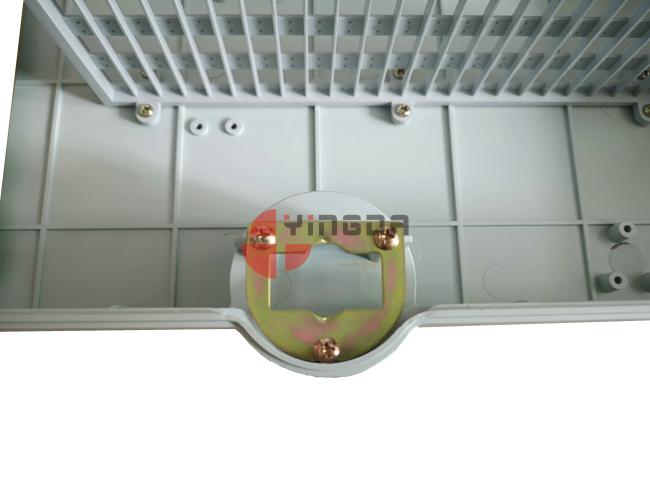

splice tray is fixed with screw on the bottom, there is metal cable ties for cable entry and exit.

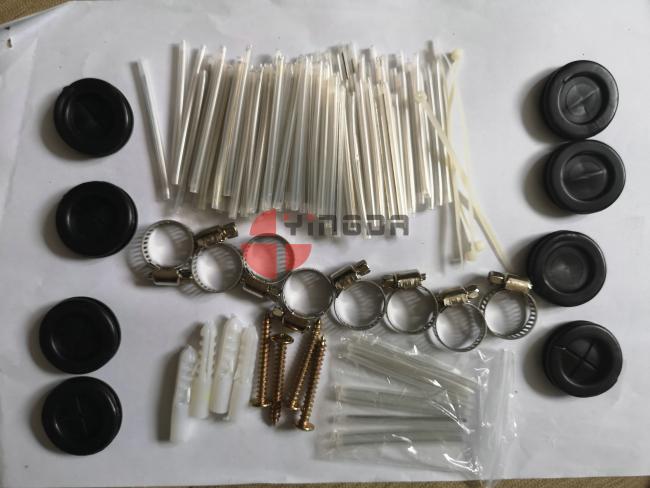

Standard accessories
sleeve, cable exit rubber seal, cable ties, expansion screws, etc
