IP65 16Ports Fiber Optic Splitter Splice Joint Box with Fast Mechanical Connector Exit

Quick details

• 48cores fusion splice, 2pcs 24cores trays
• 16pcs sc adapters outports with wateproof house
• 1x8 or 1x16 splitter can be used internal
• 2in 2out feeder cable ports
• can use normal sc pigtails or patch cord, or with fast connectors directly, no need pre-terminated cable

It is used to splice cable with max. 12.5mm dia.and allow 16 pcs drop cable with fast connector exit. Adopt engineering plastic in scientific formula with excellent mechanical strength, can prevent aging effectively caused by cold, hot, oxygen, UV etc. Can splice and connect the optic fibers in aerial, pole or wall mounting environment. Reliable sealing performance, convenient for repeated use.

Features

• Ingress Protection: IP65
• Seal with silicon rubber ring at the closure body and entry ports.
• Adopt plastic clip type lock for easy reopen and maintenance.
• Provide 4 pcs 12~24F entry port block and sealing tape for flexible application.
• Guarantee a reliable and practical seal performance of the entry ports.
• Adapter number: max hold 16pcs simplex SC installation sized adapters.
• Splitter:avilable for 1pc 2:16 or 2 pcs 1:8 micro PLC splitter's adapters
• All the metal part use Stainless Steel material.
• Advantage of fast connector exit: No need to open the closure for adjusting the signal.
• Only plug the fast connectors to adjust. More convenience.

Specification

Main Technical Index:

• Available optic fiber bending radius :≥37.5mm
• Excessive loss fiber length :≥1.6m
• Max splice capacity:48F (single fiber)
• Working Temperature:-40ºC~+70ºC
• Lateral pressure resistance:≥2000N/10cm
• Impact resistance :≥20N.m

Product Details:

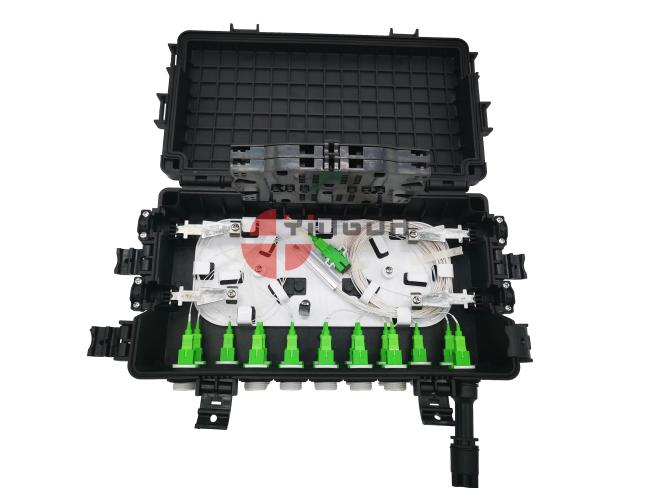

         Loaded with 1x16 PLC Splitter SC/APC            completed with 1:16 optical Splitter mini module

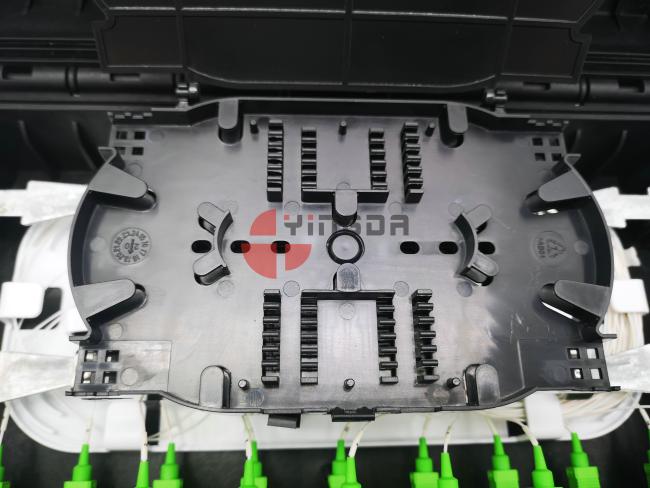

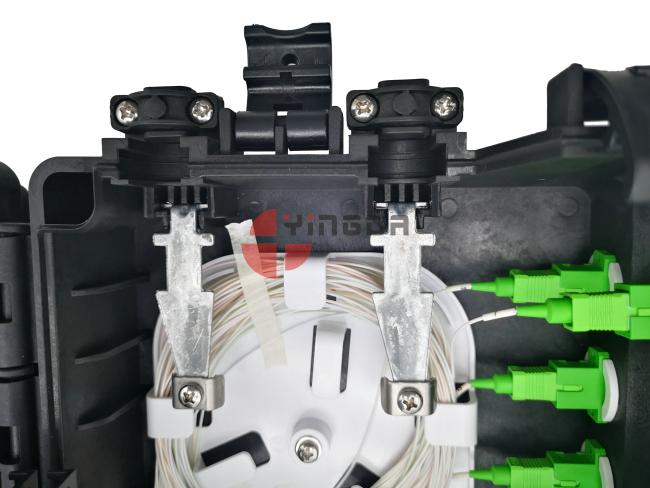

2 splice tray, each 24cores single fiber,ABS material;   adapter holder and steel tube slot

                    all box with rubber seal                          each 2cable port at both side, total 4 entry

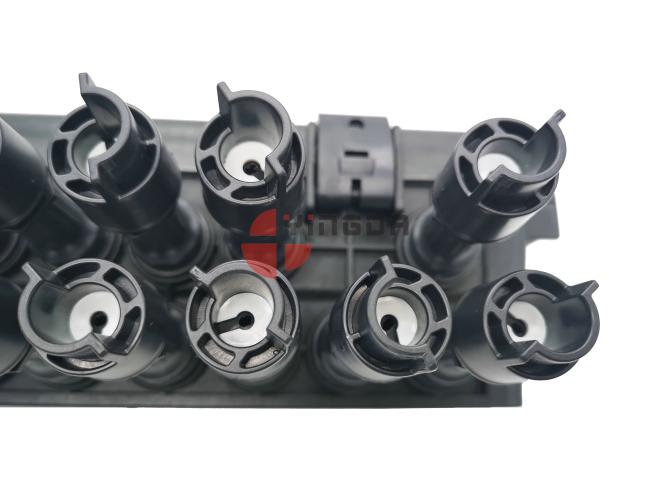

16pcs cable ports with SC adapter, it can use normal sc connectors with drop cable on request.

delivery with 16pcs waterproof plug in accessory bag.

Box sturcture:

Overview:

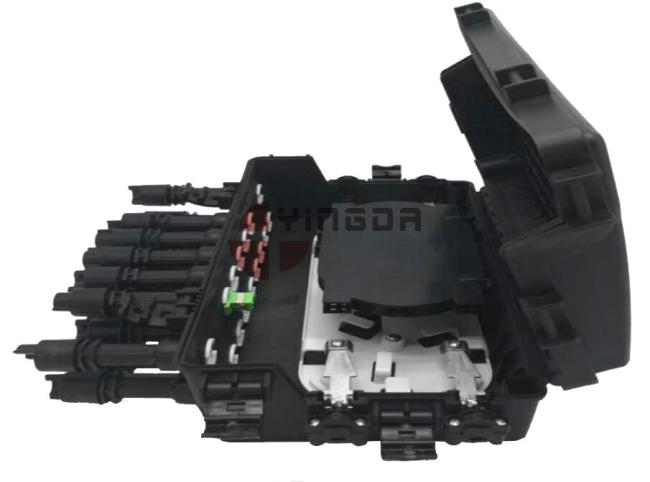

2 in 2 out cable ports at both side;  2pcs splice tray for fusion, max. 48cores / fibers.

all 16 outports with SC standard adapters, the fast connectors waterproof flip top is equipped with the accessory bag.

Fully load:

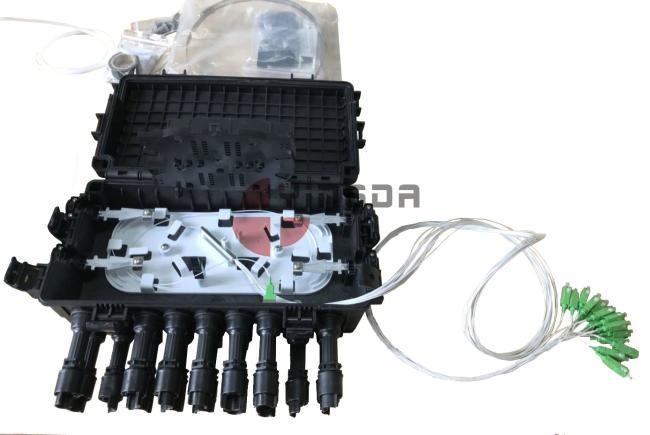

1piece 1x16 plc splitter SC/APC 1meter 0.9mm white tube, under the splice tray, there is a splitter tray to fix the steel tube and fiber storage / wring.
