36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure
36 Cores 2in 2out Inline Fiber Optic Cable Splice Closure with 8 Port SC Fast Connector Pole Mount
GJS-2008 36CORES fiber optic splice closure is quick installed and reliable sealed closure. With engineering plastic in scientific formula, injection-molding, and excellent mechanical strength, it can prevent aging effectively caused by cold, hot, oxygen, UV etc.With flame retardant, waterproof,anti-vibration and anti impact box, the closure could protect the optic cable joints from tensile, impact,bending,flattening, twisting, and axial compression. All the sealing accessories qualified in the viscosity and white ants resistance test. Reliable sealing performance, convenient for repeated use.
Specification
| MODEL | GJS-2008 |
| Dimension | 319*248*125 mm |
| Max capacity | 36 cores |
| Splice tray quantity | 3 pcs, each 12cores |
| Cable port | 2in 2 out(8-12mm), 8 ports for SC standard adapters (2*3drop cable) |
| Material | PP+GF; tray:ABS |
| Waterproof grade | IP65 |
| Color | black |
| Installation method | Wall mount, pole mount |
| Suitable for | Ftth figure-8 cable or cable which can add SC connectors |
Optical Fiber Splice Closure OVERVIEW:
Application
1. Widely used to connect or branch the outdoor optic cable fibers in aerial/pole/wall applications.
Fully Mechanical sealing and re-open design,
2. available for split with fast connectors without open the closure.
3. Provide optional valve and earthling rod. Simple inner structured and easy to installation,
is the best choice for the network construction.

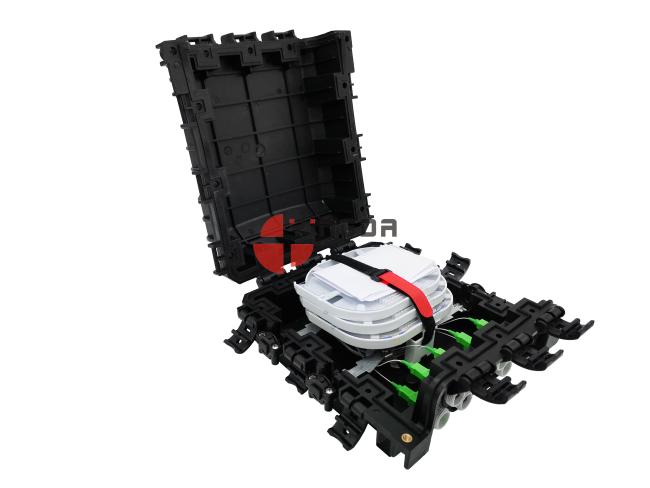

8 Port SC Splitter Cable Distribution Box in DETAILS:
Material mark: PP+ Glass fiber Package: 1pc / cardboard box

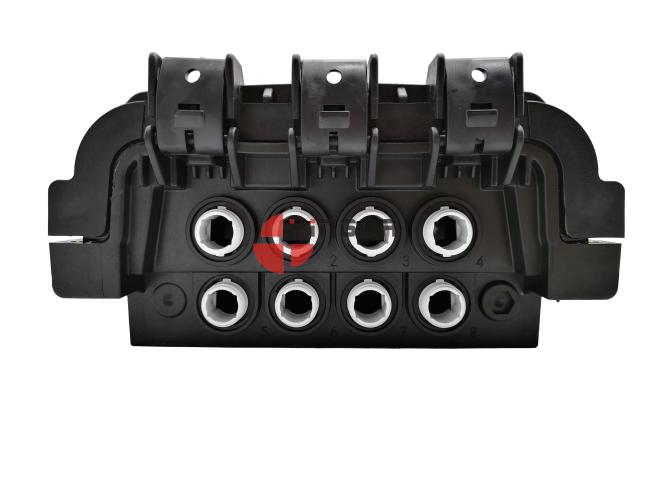

Cable port: in front 8 pcs SC adapter port, diameter:25mm; both sides each 2 round ports:8-12mm cable can meet.
Lock: 3buckles at both sides to open and close.
SC adapter port is white and round, inside and outside is SC standard ports, bottom with enough sapce for cable wiring and storage.

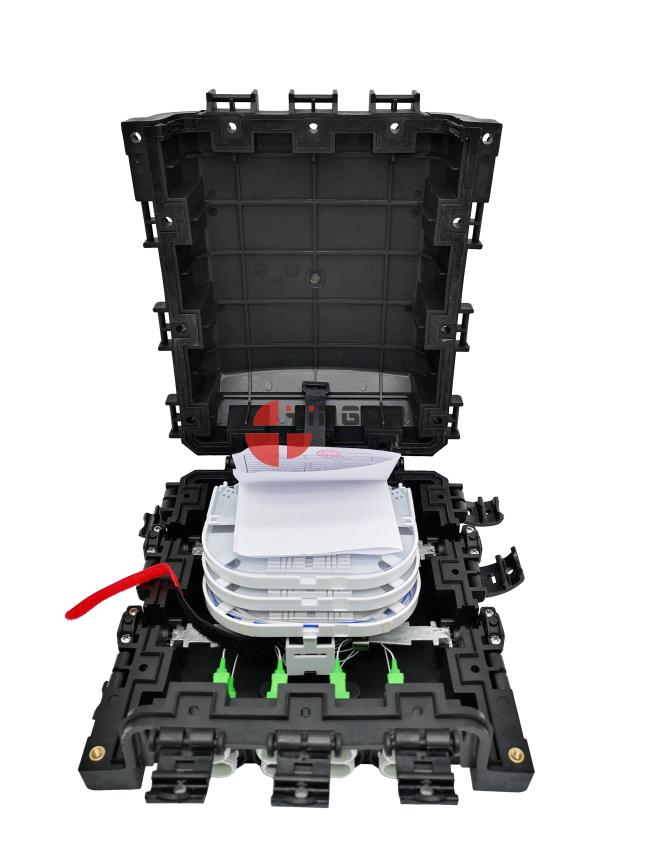

Splice tray: total 3 pcs, each 12cores to fusion single fiber, and steel tube fixtion slot and SC adapter slot.
large wiring area all around.
Technical Parameter
| Working temperature | -40ºC~+65ºC |
| Atmospheric Pressure | 62-106kPa |
| Axial Tension | > 1000N/1min |
| Stretching Resistance | >2000N/10cm² (1min) |
| Flatten Pressure | >2000N/100mm(1min) |
| Insulation Resistance | >2 × 104MΩ |
| Voltage Strength | 15KV(DC)/1min,no arcover or breakdown |
| Temperature Cycle | -40ºC~+65ºC,with inner pressure 60(+5)Kpa,cycle:10times, the decrease of pressure can't exceed 5Kpa at room temperature. |
