PP Mini 1*8 PLC Fiber Cable Joint Box For Uncut Cable SC Quick Assembly Connector
IP65 PP Mini 1*8 PLC Optical Fiber Splitter Box for Uncut Cable SC Quick Assembly Connector
12 Cores FTTH Mini Dome Fiber Optic Cable Splice Closure is quick installed and reliable sealed closure.
With engineering plastic in scientific formula, injection-molding, and excellent mechanical strength, it can prevent
aging effectively caused by cold, hot, oxygen, UV etc.With flame retardant,waterproof, anti-vibration and anti
impact box, the closure could protect the optic cable joints from tensile ,impact,bending,flattening, twisting,
and axial compression. All the sealing accessories qualified in the viscosity and white ants resistance test.
Reliable sealing performance, convenient for repeated use.
Specification
| Model | Tray capacity | Dimension/mm | Entry port & Available cable dia. | Raw material |
| GJS-0208S | 12cores | 183*182 | 1 oval port : Ф10-Ф16 8 pcs SC adapter ports for drop cable |
Dome & base : Modified P.P Tray: ABS |
| Sealing method | Full Mechanical sealing way. | Application | Wall or pole mount | |
| Bending Radius | > 40mm | Durability | 25 years | |
| Available Splitter | 1 piece 1:8 / 2:8 micro PLC splitter | |||
Package information:
inner with plastic bag, and wall mount pole mount kits, nylon tie, heatshrink protection sleeve, label mark, etc.

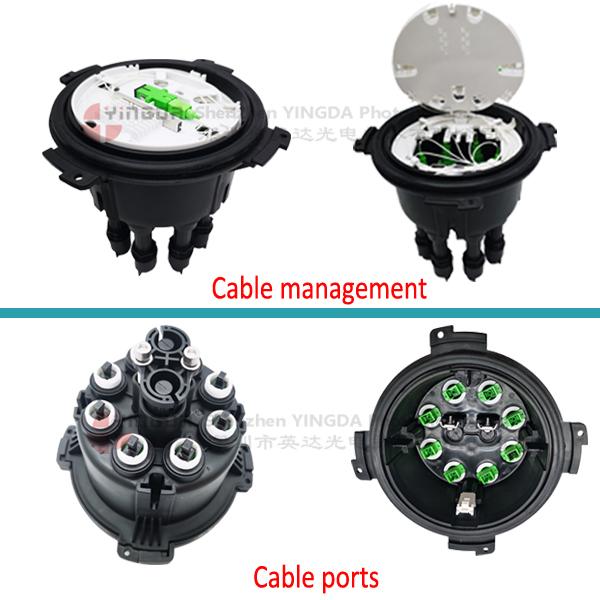

Cable Port and fast connector waterproof plug:
Wiring Diagram:
Application:
Widely used to connect or branch the outdoor optic cable fibers in aerial applications.
Fully Mechanical sealing and re-open design, available for split with fast connectors without
open the closure. Provide optional valve and earthling rod. Simple inner structured and easy
to installation, is the best choice for the network construction.
Technical Parameter:
| Working temperature | -40ºC~+65ºC |
| Atmospheric Pressure | 62-106kPa |
| Axial Tension | > 1000N/1min |
| Stretching Resistance | >2000N/10cm² (1min) |
| Flatten Pressure | >2000N/100mm(1min) |
| Insulation Resistance | >2 × 104MΩ |
| Voltage Strength | 15KV(DC)/1min,no arcover or breakdown |
| Temperature Cycle | -40ºC~+65ºC,with inner pressure 60(+5)Kpa,cycle:10times, the decrease of pressure can't exceed 5Kpa at room temperature. |
How to use the box?
We offer a series of 8 port, 16 ports SC fast connector exit, please click below for further information:
- mini 8 port splice closure for fast connector:
http://www.fibreopticbox.com/sale-12072486-fast-connector-exit-optic-fiber-cable-splice-closure-sc-adapter-holder-1x8-splitter.html
- 16 port splice closure for fast connector:
http://www.fibreopticbox.com/sale-12071701-ip65-16-ports-plc-splitter-fiber-cable-joint-box-fast-mechanical-connector-exit.html
