SC Adapter Coupler Fiber Cable Joint Box Closure 16 Ports 2 In 2 Out PP Black Color
16 Ports SC Adapter Coupler Fiber Optic Drop Cable Joint Closure 2in 2out PP Black
It is used to splice cable with max. 12.5mm dia.and allow 16 pcs drop cable with fast connector exit, no need special tool or connectors, you can use ftth drop cable or soft indoor cable or outdoor cable. It adopt engineering plastic in scientific formula with excellent mechanical strength, can prevent aging effectively caused by cold, hot, oxygen, UV etc. It can splice and connect the optic fibers in aerial, pole mounting or wall mounting environment. It is reliable sealing performance, can meet IP65 grade, and convenient for repeated use or repair.

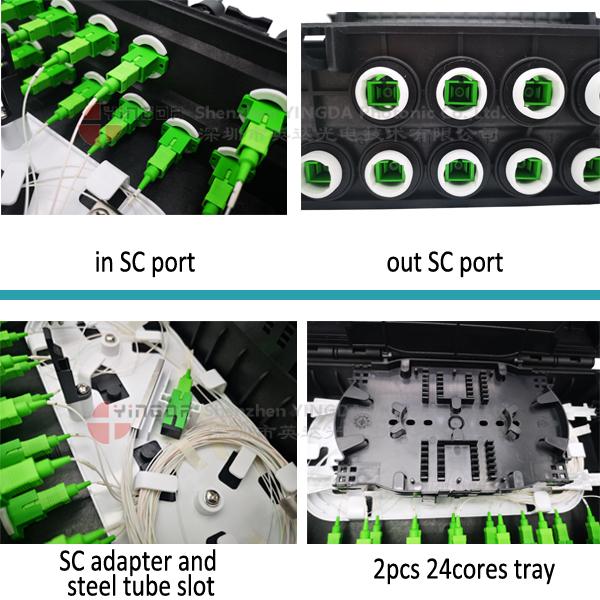

Box sturcture:
Specification
| MODEL | Dia. (mm) Biggest point | Max capacity | No. Of Ports | Available Splitter | Max. Adapter |
| GJS-2016 | 359*277*120 | 48 fibers 24F/tray |
2 pcs round on both side: for 8-12mm; 16pcs fast connector ports for drop cable |
1pc 1*16 or 2pcs 1*8 micro PLC splitter | 16SC |
| Mechanical sealing with Silicon rubber and Clip type lock. | |||||

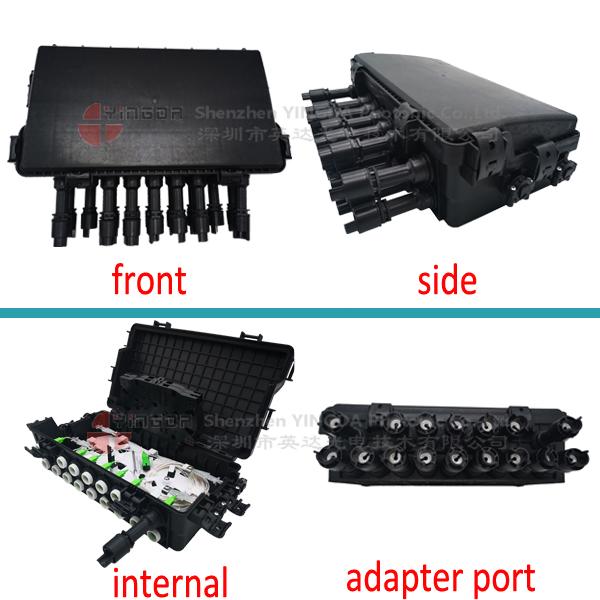

Product Details:
Features
- Ingress Protection: IP65 waterproof outdoor use
- Seal with silicon rubber ring at the closure body and entry ports.
- Adopt plastic clip type lock for easy reopen and maintenance.
- Provide 4 pcs 12~24F entry port block and sealing tape for flexible application.
- Guarantee a reliable and practical seal performance of the entry ports.
- Adapter number: max hold 16pcs simplex SC installation sized adapters.
- Splitter:avilable for 1pc 2:16 or 2 pcs 1:8 micro PLC splitter's adapters
- All the metal part use Stainless Steel material.

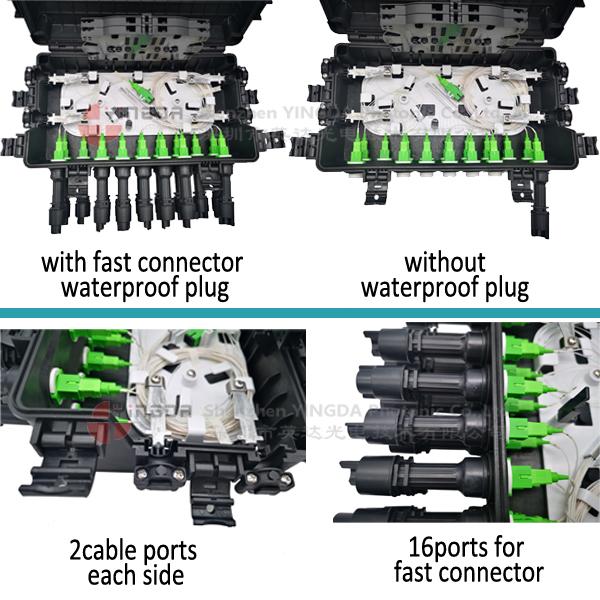

- Advantage of fast connector exit: No need to open the closure for adjusting the signal.
- Only plug the fast connectors to adjust. More convenience.
Main Technical Index:
- Available optic fiber bending radius :≥37.5mm
- Excessive loss fiber length :≥1.6m
- Max splice capacity:48F (single fiber)
- Working Temperature:-40ºC~+70ºC
- Lateral pressure resistance:≥2000N/10cm
- Impact resistance :≥20N.m
How to use the box?
FAST CONNECTOR KITS outports series:
GJS-0208S
http://www.fibreopticbox.com/sale-12133852-ip65-pp-mini-1-8-plc-optical-fiber-splitter-box-for-uncut-cable-sc-quick-assembly-connector.html
GJS-2008
http://www.fibreopticbox.com/sale-12072104-inline-fiber-cable-joint-box-ip65-outdoor-pole-mount-36-cores-8-sc-fast-connector.html
GJS-2016
http://www.fibreopticbox.com/sale-12071701-ip65-16-ports-plc-splitter-fiber-cable-joint-box-fast-mechanical-connector-exit.html
Fore more videos, please contact SALES TEAM at: sales@yingdapc.com
Looking forward to hear from you!
