16Ports Fiber Optic Cable GPON Passive Splitter Termination Box SC 1:16 FTTH Drop Cable Enclosure

Quick Details of Optical Distribution Box

• 3 cable uncut port, feeder cable go through the box without cutting
• 16round ports for ftth flat frop cable 2*3mm
• 16pcs SC adapters holders
• max 1x16 or 2pc s1x8 mini splitter or lgx splitter module
• outdoor wall mount, pole mount IP65

FDB0316L is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

1x16 Fiber Optic Splitter Box Features

• Made of high strength engineer plasticPC+ABS, wet-proof, water-proof, dust-proof, anti-aging, Resistance to chemical and U.V attack.
• Total enclosed structure with key and 2pcs buckles, with strength members on the box cover and sides.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution,etc all in one.
• Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
• Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
• Outdoor Wall mount or pole mount, IP65 waterproof grade.

FTH BOX Specification

Outdoor IP65 Fiber Termination Box Details:

1piece in a cardborad box, with bubble bag and plastic film on the top, good protection for the box from factory to client, no scratches or fingerprints, brand new good outer apprearance.

The box is ABS+PC raw material, no second hand materials, high strong and tensile strength, humanity design for the splitter, adapter and fiber management area, with large space for fiber route, store or splitting.

There is separate area for fusion, splitting area and distribute, multi- function, with cable label mark and laser mark to remind of construction, repair or future use.The whole box is total enclosed and sealed with rubber seal, meet waterproof outdoor IP65 standard, there are many striped stiffeners on the inside of the cover for better use in fttx networks.

The box max. can use 2pcs 1:8 plc splitter steel tube, there is tube fix slot  design. and can splice fusion 24cores single fiber with figure mark, avoid of mess fiber management. The internal plate can be rotate 90degree flip over.Quite easy to operate, and you can take it off when install the splitter, adapter or pigtails or fusion.

The adapter area have a plastic cover to protect dust and plc splitter output inside, no harm or damage to fiber.

small size, humanity design, clip on the plate by 2clips at both sides.

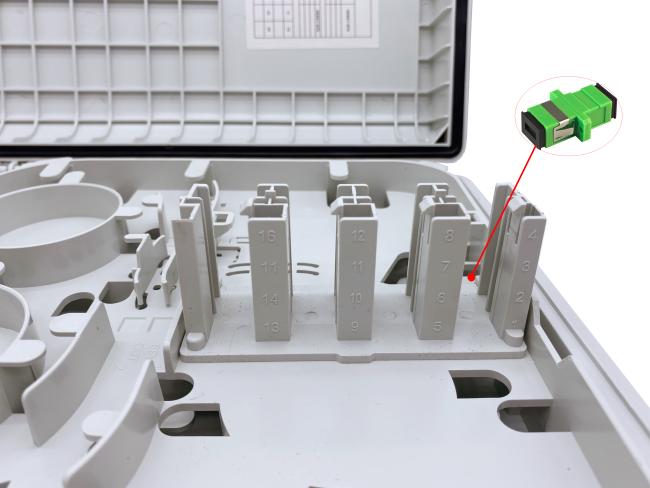

The box can hold maximum 16pcs SC/APC or SC/UPC or LC duplex couplers with flange, there is no  need screws to fix,it is stable and faster.

The figure 1234...16 mark makes optical construction more easy and clear.

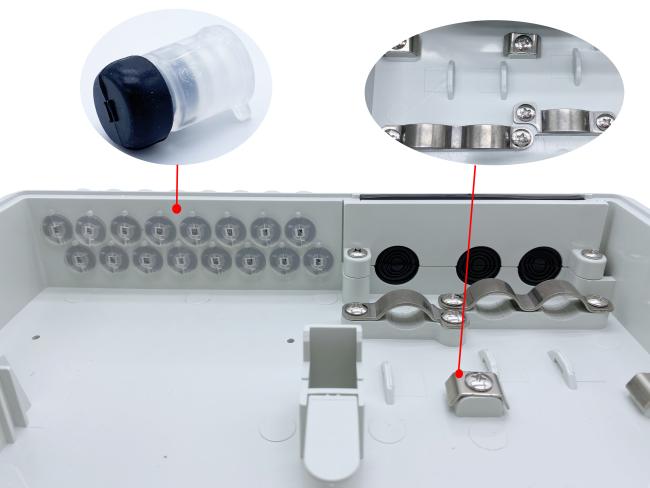

FDB0316L optical distribution box ODB have 3 mis span port for feeder cable go in and through the box without cutting. And 16pcs drop cable port 2*3mm rubber seal, the seal have upgrade anti pull off function, no need to worry the port will be come out when pulling the drop cable on site.  All the metal components used for this box is stainless steel, prevent corrosion and aging,make sure long life span.

16 Ports Optical Cable Splitter Box Standard Accessory

Splice adapter rotate plate 1pc, 3pcs wall mount expansion screws, 16pcs fiber protective sleeve, spiral tube,nylon ties, a key,Pole mounted kits (optional).

Fiber Junction Box Application

• Wall-mounted, Pole-mounted Installation
• Suitable for ftth pre-connectorized drop cable with SC/LC connectors
