48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32​ 1x16 1x8

Uncut 1x16 PLC Splitter 48 Cores Fusion Joint Closure Fiber Optic Dome Mechanical Seal FOSC

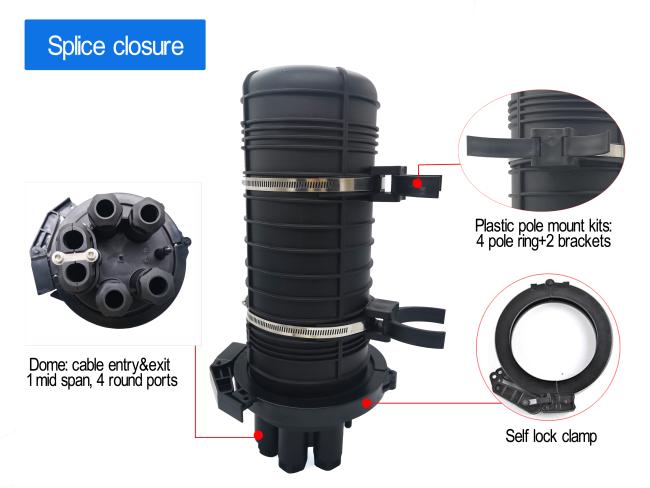

GJS-M5-JFT optical fiber splice closure is a dome type enclosure, which is used for the direct connection during optical fiber transmission, and provides joint connection protection, with 4 round cable inlet holes and 1 elliptical cable inlet hole; it adopts mechanical seal; it can be used for overhead, pole mounting, wall mounting and buried installation; good sealing performance, simple installation and wide application range.

Specification

Features

• All performance indexes of the product meet the requirements of national YD / T 814.1 connector box standard.
• 5pcs cable ports: 4round and 1 oval ports, which can access the optical cable of φ 7 - φ 18, uncut function is available
• The outer box body is made of high strength engineering plastics and high pressure injection molding with anti-aging agent. It has the characteristics of light weight, high mechanical strength, strong corrosion resistance, lightning resistance and long service life.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------​

• The superposed structure fiber fusion tray and independent insulation grounding device in the box make the fiber core number configuration, expansion and cable grounding flexible, convenient and safe.​
• The metal components and fasteners inside and outside the box are made of stainless steel, which can be used in various environments.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------​

• 48cores will load 3pcs trays, 1 for splitter ,and 2 for fusion. Each tray can fusion splice 24cores single fiber. Every tray with a transparent cover, large routing area and reasonable bend radius, trays fix on the metal adapter bracket with screws.The splitter tube can fix in the tray.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

​

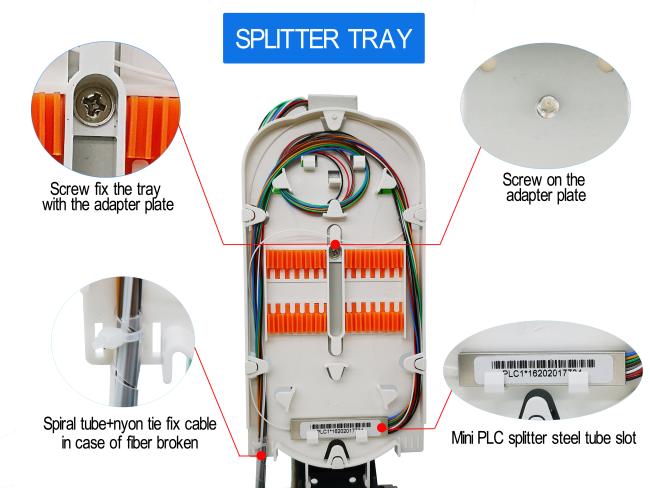

• The adapter plates for 1x16 can be like below pictures, it can hold maximum 18SC adapters, for 1x16 or 2x16 with spiral tube or ny ton tie to fix in place.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Standard accessory:

pole mount kits, plastic wrench, inner hexagon wrench, rubber sealing and kits for cable ports, heat shrink protection sleeve, number marks, nylon tie, etc.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Fiber Optic Joint Enclosure Installation process

The optical cable enters from the optical cable financial control on the base.

The cable holder is used to lock the cable, and the steel core is penetrated into the reinforced core column and pressed tightly.

1. Installation of optical cable with oval hole:

Take out the rubber pad, plastic block and plastic plug in the elliptical hole, the optical cable passes through the rubber pad, and then buckle on the plastic block, finally add the plastic plug, use the wrench to tighten the bolt and lock the base to complete the sealing of the optical cable inlet.

2. Installation of 4round optical cable:

Screw off the plastic nut of the small cable inlet hole, take out the φ 27 sealant plug, install the accessories according to the sequence shown in the figure below, and finally use the wrench to tighten the plastic nut to seal the cable inlet in pairs.

3. Optical splitting: bring the stripped optical cable into the fusion tray for reserved winding, fusion the pigtail end and the cable end the end in the fusion slot,insert the pigtail connector into the inlet of adapter, insert the input of the PLC splitter to the outlet of the adapter, the output of the splitter is inserted into the input end of the adapter, and the optical cable is led out at the outlet of the adapter finally.

4. Direct fusion: introduce the butt cable into the fusion tray for reserved winding, then fusion two ends in the fusion slots.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Application: diret buried, duct, aerial, telecommunication, mobile, CATV, highway, broadband company, etc.
