Outdoor 30m G657A2 Fiber Optic Patch Cord SM Corning With 2mm SC APC
Outdoor 30m G657A2 Fiber Optic Patch Cord SM Corning With 2mm SC APC

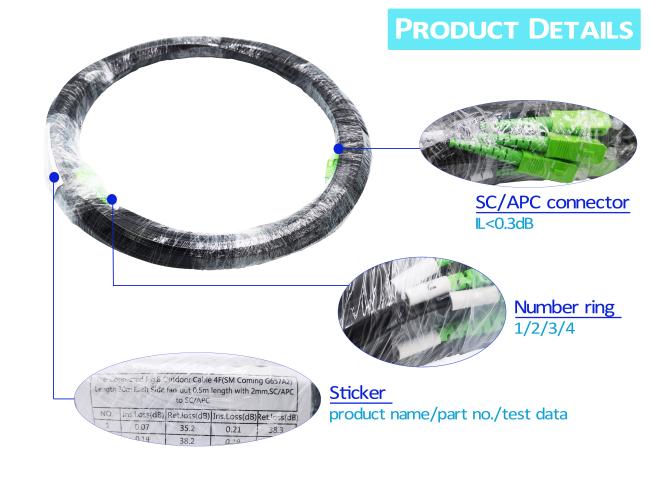

Pre-Connected Fig.8 Outdoor Cable 4 Fibers SM Corning G657A2 Length 30m Each Side fan-out 0.5m length with 2mm SC/APC

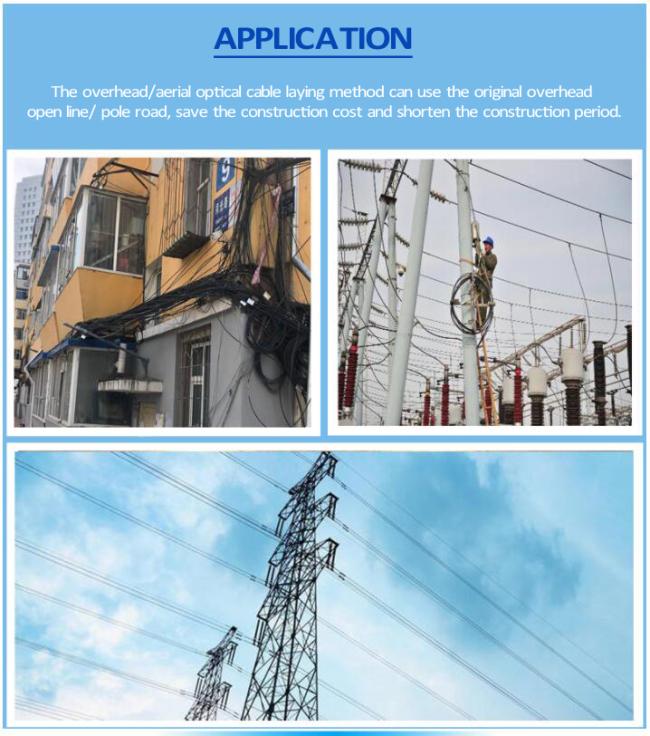

Pre-terminated Patch cable is a kind of distribution patch cable. It’s suitable for laying in buildings, primarily in cable conduits and cable trays for direct connector assembly with no need for splice connectors. This figure-8 cable is widely used in outdoor aerial mounting distribution sytem, which is anti-UV, anti-flame, anti-mouse biting. Especially 7pcs 0.4mm(some use 0.33mm) steel wire makes it good tensile strengthe and crush resistance.
Connector’s Standard:
TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
Optical Specification
| Connector | SC | Jacket OD(mm) | 5.0*8.0mm |
| Fiber mode | 9/125um | Jacket color | black |
| Polish method | APC | Wavelength | 1310/1550nm |
| Cable type | Multi-fibers breakout 2.0mm unit cable | Jacket material | LSZH/PVC/PE |
| Insertion loss | ≤0.3dB (IEC grade C) | Insertion loss | ≤0.12dB (IEC grade B) |
| Return loss | SM APC≥65dB(min) | Interchangeability &vibration | ≤0.2dB |
| Operating temperature | -40~+75°C | Storage temperature | -40~+85°C |
Cable technical parameter
| No. of cable | 2-12 | ||
| Fiber Model | G.657A2 (Corning) | ||
| Loose Tube | Material | PBT | |
| Diameter(±0.06)mm | 2.5 | ||
| Thickness(±0.03)mm | 0.35 | ||
| The Max.Core NO./Tube | 12 | ||

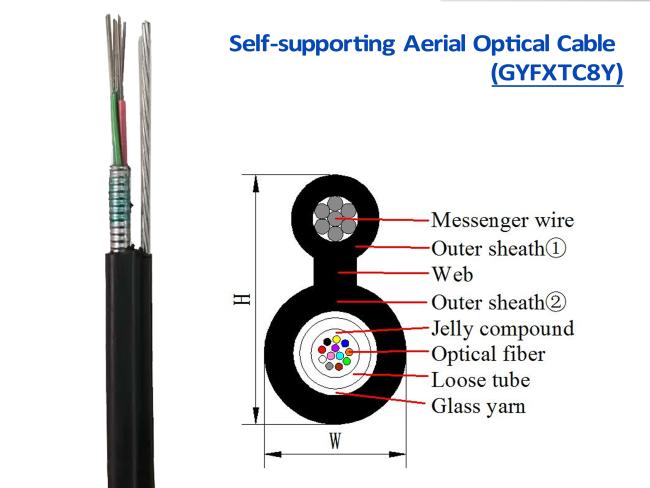

| Outer Sheath① | Material | MDPE | |
| Thickness(±0.1)mm | 0.6 | ||
| Diameter(±0.2)mm | 2.5 | ||
| Web | Material | PE | |
| Size(±0.1)mm | 0.7*1.2 | ||
| Messenger Wire | Material | steel strand | |
| Size(±0.05)mm | 1.2(0.4*7) | ||
| Outer Sheath② | Material | PE | |
| Thickness(±0.1)mm | 1.0 | ||
| Diameter(±0.2)mm | 5.0 | ||
| Cable Diameter(±0.2)mm(W×H) | 5.0x8.0 | ||
| Cable Weight(±5)kg/km | 46 | ||
| Attenuation | 1310 nm | £0.36 | |
| 1550 nm | £0.22 | ||
| Min. bending radius | Without Tension | 10×Cable-φ | |
| Under Maximum Tension | 20×Cable-φ | ||
|
Temperature range (℃) |
Installation | -20~+60 | |
| Transport&Storage | -40~+70 | ||
| Operation | -40~+70 | ||
| NO. | Item | Requirement | |
| 1 | Allowable Tensile Strength | Short Term | 660N |
| Long Term | 200N | ||
| 2 | Allowable Crush Resistance | Short Term | 1000 (/100mm) |
| Long Term | 300 (/100mm) | ||
