Outdoor NAP FTTH Caja De Distribucion de 16, con PLC 1X16 Fiber Optic Splitter Box
Outdoor NAP FTTH Caja De Distribucion de 16, con PLC 1X16 Fiber Optic Splitter Box
Quick Details of 16 Cores Fiber Access Terminal Box FAT
- 4Cable enter, 16pcs round drop cable exits

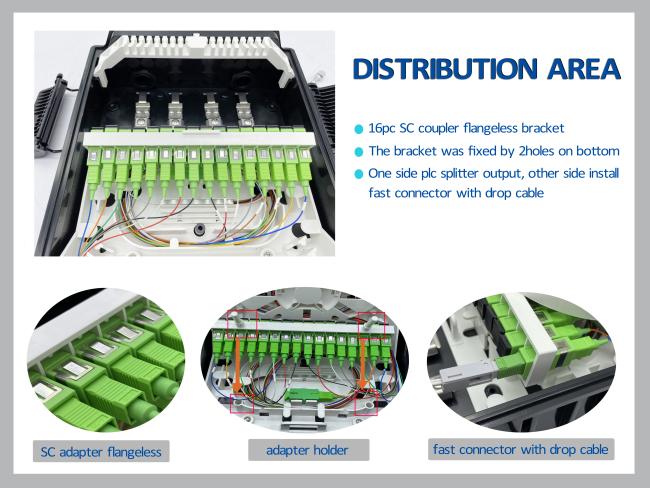

- max. 18pcs SC adapters

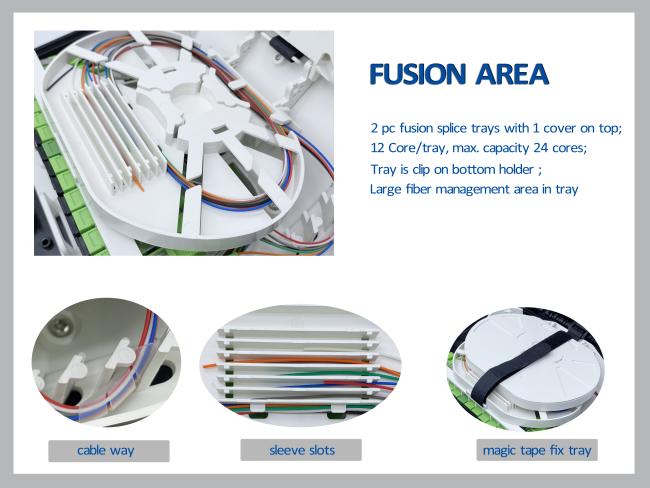

- max. fusion 16cores

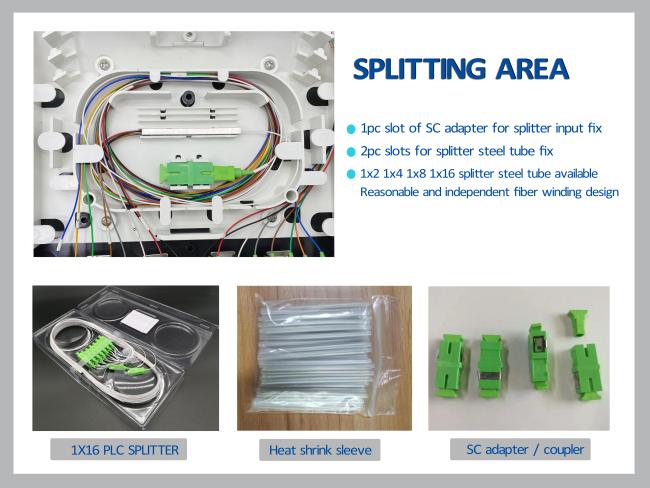

- max. 2pc 1x8 or 1pc 1x16 mini splitter or splitter module
- IP65 waterproof, aerial mount, wall mount, pole mount
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Fiber Distribution Box Specification

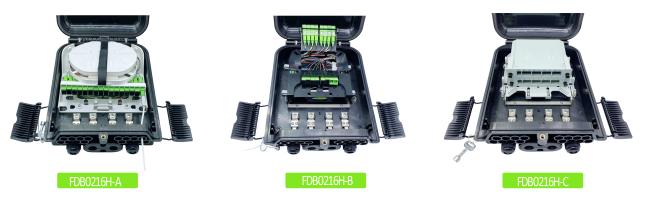

| Model | FDB0216H-A | FDB0216H-B | FDB0216H-C |
| Dimension (A*B*C) | 290*210*82mm | ||
| Cable entry | 1 uncut port, 2 cable glands:ᴓ12.5-15 mm | ||
| Cable exit | 16pcs 2x3mm round ports | ||
| Max.Capacity | 24core | 16cores | 16cores |
| Adapter quantity | 16SC | 18SC | - |
| Splitter quantity | 2pcs 1x8, or 1pc 1x16 mini splitter | 2pcs 1x8 mini splitter | 2pcs 1x8 or 1pc 1x16 LGX splitter |
| Waterproof grade | IP65 | ||
| Material | PC+ABS | ||
| Color | black | ||
Outdoor Optical Distribution BoxStandard accessory:
expansion screws, buffer tube, nylon tie, clamps pole/wall mount, sleeve, key, etc.
Caja De Distribucion de Fibra Optica Features

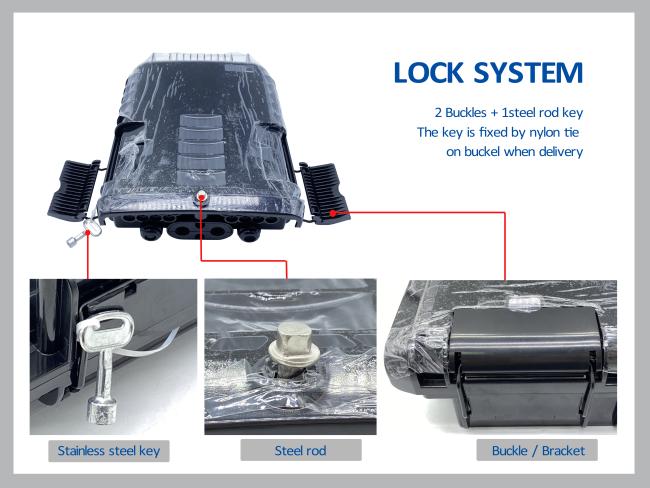

- Total enclosed structure with key and buckles
- High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging
- Outdoor wall mount, pole mount or aerial mount, protection level up to IP65
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
- Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
