UHMW-PE Arch Type Marine Rubber Fenders for Port Fendering System
UHMW-PE Arch Type Marine Rubber Fenders for Port Fendering System

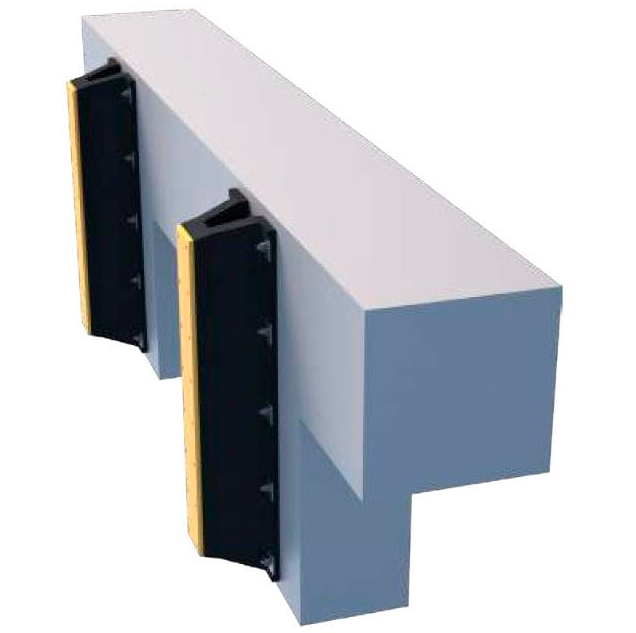

Marine Arch Rubber Fenders are single-piece rubber units. The simplest version has a plain rubber face and can be installed almost anywhere. Arch fenders are used wherever simplicity and toughness are essential, such as general-purpose berths and exposed sites. They are easy to install horizontally or vertically and need little maintenance.
Feature:
1, Moderate reaction force and high capability of energy absorption.
2, Convenient installation and firm structure.
3, Suitable for all kinds of ports, docks.
|
Specifications & Dimensions for Arch Type Fender |
ZHIYOU MARINE |
|
www.marineoutfittings.com |
Unit:mm
|
Type |
H |
L |
L1 |
B |
B1 |
B2 |
B3 |
c |
d |
e |
f |
h |
p |
n |
|
A300×1000 |
300 |
1000 |
1150 |
197 |
600 |
490 |
216 |
140 |
37 |
105 |
140 |
45 |
870 |
2 |
|
A300×1500 |
300 |
1500 |
1650 |
197 |
600 |
490 |
216 |
140 |
37 |
105 |
140 |
45 |
685 |
3 |
|
A300×2000 |
300 |
2000 |
2150 |
197 |
600 |
490 |
216 |
137.5 |
37 |
105 |
140 |
45 |
625 |
4 |
|
A400×1000 |
400 |
1000 |
1200 |
262 |
800 |
670 |
350 |
150 |
43 |
120 |
165 |
60 |
900 |
2 |
|
A400×1500 |
400 |
1500 |
1700 |
262 |
800 |
670 |
350 |
150 |
43 |
120 |
165 |
60 |
700 |
3 |
|
A400×2000 |
400 |
2000 |
2200 |
262 |
800 |
670 |
350 |
147.5 |
43 |
120 |
165 |
60 |
635 |
4 |
|
A500×1000 |
500 |
1000 |
1250 |
328 |
1000 |
840 |
360 |
160 |
47 |
140 |
180 |
75 |
930 |
2 |
|
A500×1500 |
500 |
1500 |
1750 |
328 |
1000 |
840 |
360 |
160 |
47 |
140 |
180 |
75 |
715 |
3 |
|
A500×2000 |
500 |
2000 |
2250 |
328 |
1000 |
840 |
360 |
157.5 |
47 |
140 |
180 |
75 |
645 |
4 |
|
A600×1000 |
600 |
1000 |
1300 |
393 |
1200 |
1010 |
432 |
170 |
50 |
160 |
195 |
90 |
960 |
2 |
|
A600×1500 |
600 |
1500 |
1800 |
393 |
1200 |
1010 |
432 |
170 |
50 |
160 |
195 |
90 |
730 |
3 |
|
A600×2000 |
600 |
2000 |
2300 |
393 |
1200 |
1010 |
432 |
167.5 |
50 |
160 |
195 |
90 |
655 |
4 |
|
A800×1000 |
800 |
1000 |
1400 |
524 |
1600 |
1340 |
576 |
180 |
68 |
260 |
270 |
120 |
1040 |
2 |
|
A800×1500 |
800 |
1500 |
1900 |
524 |
1600 |
1340 |
576 |
180 |
68 |
260 |
270 |
120 |
770 |
3 |
|
A800×2000 |
800 |
2000 |
2400 |
524 |
1600 |
1340 |
576 |
180 |
68 |
260 |
270 |
120 |
680 |
4 |
|
Package & Delivery& Payment terms |
ZHIYOU MARINE |
|
www.marineoutfittings.com |
Irrevocable L/C at sight
Incoterm: EXW/FCA/FOB, C&F/CIF
Package: Pallet with film packing or according to customer's requirement
Lead time : Within one month for one 20'GP
Shipment : 20'GP, 40'GP,40'HQ, 40'OT or in bulk
|
