Arch Type Marine Rubber Fenders For Marine Port / Harbor / Pier Fendering
Arch Type Marine Rubber Fenders For Marine Port / Harbor / Pier Fendering
Description:

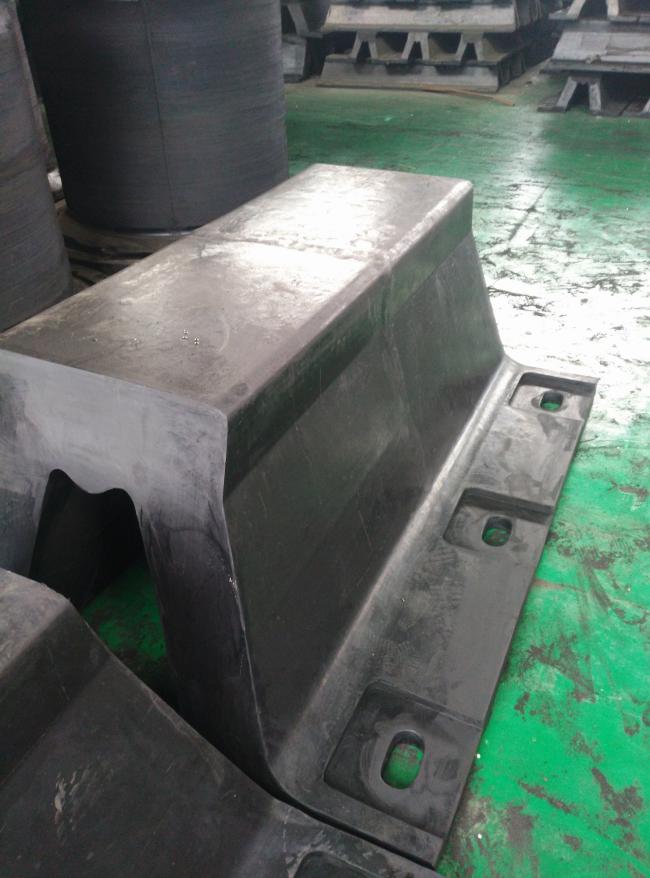

The Arch type fender is the most commonly used molded fender type and is available in 3 different cross-sections, SV, SX, and SH. The main difference is the width of the front face and the resulting surface load. Each type can be equipped with an additional embedded steel plate in the fender head. This allows the installation of a low friction PE-rubbing plate, a steel fender panel or the mounting of the fender unit behind a pile construction.
Feature:
- Very robust, durable and require low maintenance.
- Provide high shear resistance in the longitudinal direction.
- Most suitable for Multi-Purpose-Terminals.
- Can be installed both vertically and horizontally.
- Available in standard heights from 250 to 1.000 mm and standard length ranging from 1.000 to 3.500 mm (Special lengths, diameters, fixing arrangements or end-chamfers available upon request), each in 3 main different hardness grades. (Intermediate rubber grades are available upon request)
|
Specifications & Dimensions for V Type Rubber Fender |
ZHIYOU MARINE |
|
www.marineoutfittings.com |
Unit:mm
|
Type |
H |
L |
L1 |
B |
B1 |
B2 |
B3 |
c |
d |
e |
f |
h |
p |
n |
|
A300×1000 |
300 |
1000 |
1150 |
197 |
600 |
490 |
216 |
140 |
37 |
105 |
140 |
45 |
870 |
2 |
|
A300×1500 |
300 |
1500 |
1650 |
197 |
600 |
490 |
216 |
140 |
37 |
105 |
140 |
45 |
685 |
3 |
|
A300×2000 |
300 |
2000 |
2150 |
197 |
600 |
490 |
216 |
137.5 |
37 |
105 |
140 |
45 |
625 |
4 |
|
A400×1000 |
400 |
1000 |
1200 |
262 |
800 |
670 |
350 |
150 |
43 |
120 |
165 |
60 |
900 |
2 |
|
A400×1500 |
400 |
1500 |
1700 |
262 |
800 |
670 |
350 |
150 |
43 |
120 |
165 |
60 |
700 |
3 |
|
A400×2000 |
400 |
2000 |
2200 |
262 |
800 |
670 |
350 |
147.5 |
43 |
120 |
165 |
60 |
635 |
4 |
|
A500×1000 |
500 |
1000 |
1250 |
328 |
1000 |
840 |
360 |
160 |
47 |
140 |
180 |
75 |
930 |
2 |
|
A500×1500 |
500 |
1500 |
1750 |
328 |
1000 |
840 |
360 |
160 |
47 |
140 |
180 |
75 |
715 |
3 |
|
A500×2000 |
500 |
2000 |
2250 |
328 |
1000 |
840 |
360 |
157.5 |
47 |
140 |
180 |
75 |
645 |
4 |
|
A600×1000 |
600 |
1000 |
1300 |
393 |
1200 |
1010 |
432 |
170 |
50 |
160 |
195 |
90 |
960 |
2 |
|
A600×1500 |
600 |
1500 |
1800 |
393 |
1200 |
1010 |
432 |
170 |
50 |
160 |
195 |
90 |
730 |
3 |
|
A600×2000 |
600 |
2000 |
2300 |
393 |
1200 |
1010 |
432 |
167.5 |
50 |
160 |
195 |
90 |
655 |
4 |
|
A800×1000 |
800 |
1000 |
1400 |
524 |
1600 |
1340 |
576 |
180 |
68 |
260 |
270 |
120 |
1040 |
2 |
|
A800×1500 |
800 |
1500 |
1900 |
524 |
1600 |
1340 |
576 |
180 |
68 |
260 |
270 |
120 |
770 |
3 |
|
A800×2000 |
800 |
2000 |
2400 |
524 |
1600 |
1340 |
576 |
180 |
68 |
260 |
270 |
120 |
680 |
4 |
|
