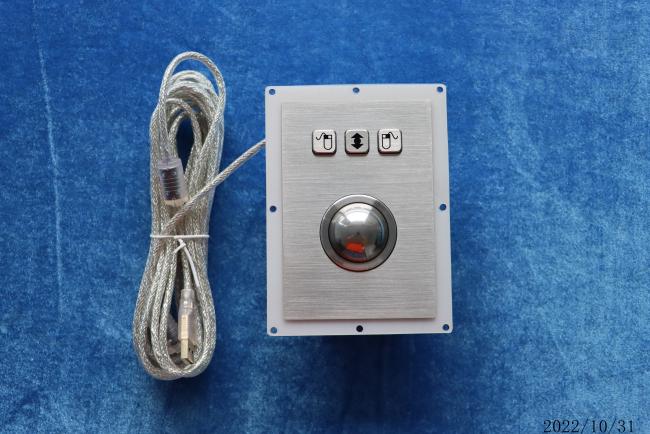

IP67 38mm Stainless Steel Optical Trackball Mouse With 3 Metal Buttons
IP67 38mm Stainless Steel Optical Trackball Mouse With 3 Metal Buttons
DESCRIPTION: IP67 dynamic rated vandal proof stainless steel optical trackball with IP67 dynamic sealed & ruggedized stainless mouse buttons and IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, optical trackball module protected and shielded by stainless steel housing, 3 sealed stainless steel mouse buttons designed for right & left clicking and scrolling up and down with ball rolling,with rear panel mounting solution.one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 87.0mm x 126.0mm
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | |
| Mechanical | Key | 3 keys, IP67 dynamic quality stainless steel button |
| Key top style | Protuberant Rectangular Keys | |
| Front Plate | Quality brushed stainless steel | |
| Key Travel | 2.0 mm | |
| Ball diameter | 38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available) | |
| Key switch lifespan | More than 5 Mio actuations | |
| Track ball lifespan | ＞5 years | |
| Power Supply | +5V DC +/-5% | |
| Mounting Rack | Stainless steel | |
| Dimension |
Dimensions with 38mm track ball, Front plate (W x H): 87.0mm x 126.0mm |
|
| Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | |
| Electrical | Power supply | 3.2N+/-0.1N |
| Protection level | IP67 | |
| EMC Standard | EN 55032:2015 , EN 55035:2017 | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Contact Material | Carbon on gold | |
|
Environmental
|
Operating temperature | -20ºC~+ 60º C |
| Storage temperature | - 30ºC~+ 70ºC | |
| Operating RH | 30～90% | |
| Atmospheric pressure | 60～106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified, ESD |
| MTBF | >20000H | |
| MTTR | < 30min | |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | |
| Packing Details | Each unit to a suitable brown box, suitable brown boxes to a standard export carton. | |
Main Features:
1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
2. All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
3. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast
4. Retaining one-pixel positioning accuracy when the ball is moved slowly.
5. Can be mounted horizontally, and vertically or any directions.
6. No metal bearings inside, operation is very smooth, and easy without any noise.
