IP65 Industrial Membrane Keyboard Washable Medical Touchpad Keyboard
IP65 Industrial Membrane Keyboard Washable Medical Touchpad
Industrial Membrane Keyboard With Touchpad Washable Medical Keyboard
DESCRIPTION: 83 keys compact format IP65 dynamic rated membrane industrial keyboard with integrated numeric keypad, with IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm±0.05mm with extremely good tactile feeling for reliable data input, rear panel mount solution with mounting holes, with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments.
INDUSTRIAL KEYBOARD DIMENSIONS: 392.0mm x 110.0mm (top panel)
| MECHANICAL DATA | |
| Number of Keys | 83 keys (including 2 mouse buttons) |
| Key switch Technology | metal dome PCB with gold-on-gold metal dome key switch technology |
| Actuation Force | 3.5N±0.2N (press point) |
| Key Travel | 0.45mm ± 0.05mm |
| Key switch Lifetime | 1 mil. operations |
| Mounting Type | rear panel mounting. |
| G.W. | 1.50KGs |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| Method | capacitive |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | < 10 mA |
| MEMBRANE KEYBOARD ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| MEDICAL KEYBOARD RELIABILITY | |
| RoHS, CE, FCC | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |

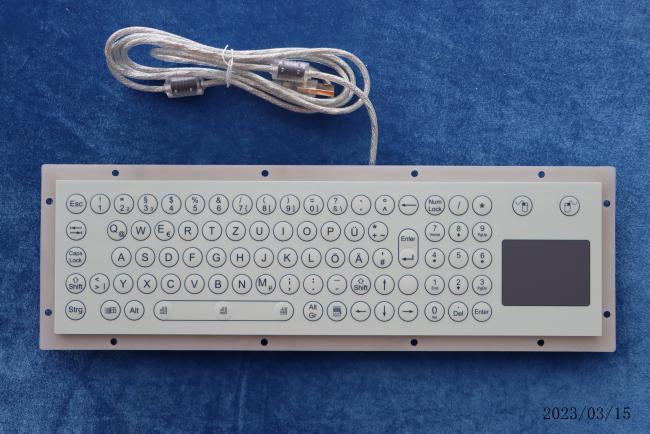

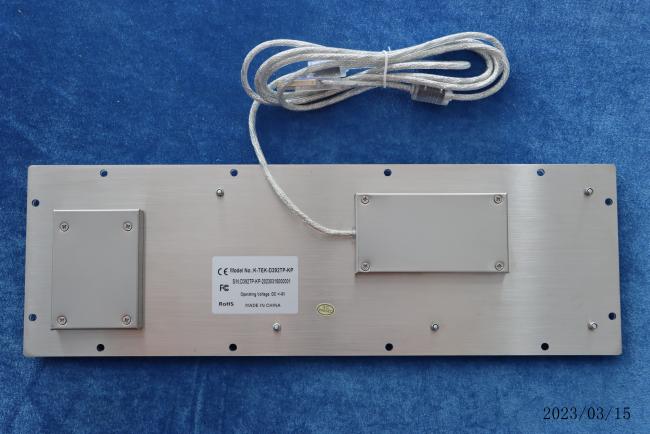

ACTUAL PHOTOS
