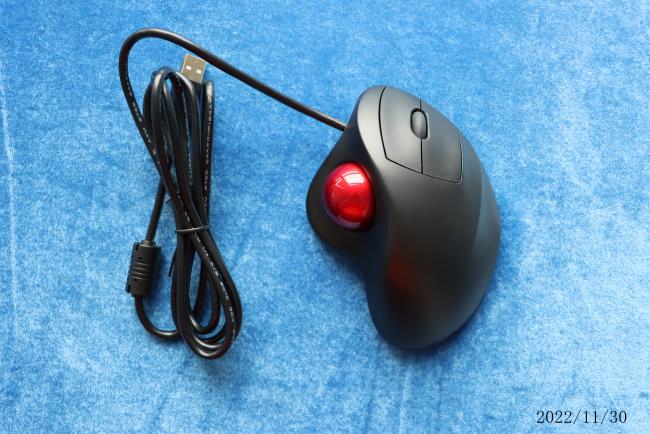

IPX6 Military Grade Ergonomic Trackball Mouse With 3 Buttons 34mm Optical Trackball Module
Ergonomic Trackball Mouse With 3 Buttons 34mm Optical Trackball Module Of IPX6 Military Grade
DESCRIPTION: IPX6 rated ergonomic military mouse with 3 mouse buttons for right/left clicking, as well as middle wheel for scrolling function, integrated with a 34mm optical trackball module with 500~1000 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, the DPI can be automatically adjusted and switched by sensing the moving speed of the trackball (resolution of 500, 800, 1000 optional) to meet requirements. Panel mounting solution. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
DIMENSIONS: 136.8mm x 100.1mm(L x W)
| MECHANICAL DATA | |
| Keys | 3 keys |
| Key switch | Omron micro key switch technology |
| Key travel | 1.20mm±0.10mm |
| Actuation Force | 2.5N±0.2N |
| Trackball | 34mm ergonomic handheld thumb ball |
| Trackball lifespan | > 2 millions scrolling |
| G.W. | ≈0.30KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 80mA |
| Lifespan | > 5 years |
| Interface | USB/PS2 optional |
| Cable length | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc: | |
| CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | |
| CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | |
| CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | |
| CS106 Conducted Susceptibility, Transients, Power Leads | |
| CS112 Electrostatic Discharge Susceptibility | |
| CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | |
| CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | |
| CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | |
| RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | |
| RE102 10kHz - 18GHz Radiated Emissions, Electric Field | |
| RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | |
| RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | |
| MIL-STD-810F (wide temperature, shock, salt mist, vibration, salt mist, fungus, humidity). | |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Protection Level | IPX6 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
