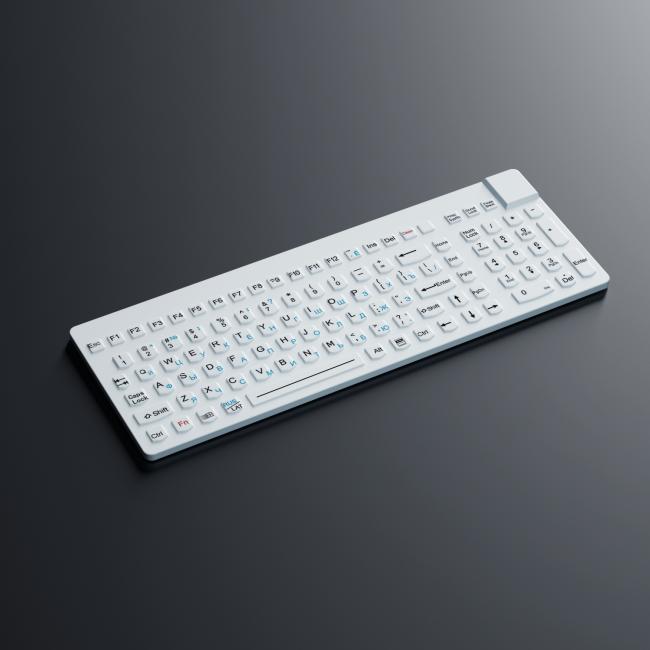

Adjustable Ps2 Usb Interface Waterproof Silicone Keyboard For Medical
DESCRIPTION: 106 keys IP68 dynamic sealed & ruggedized industrial silicone rubber Hygienic keyboard, integrated sealed numeric keypad, function keys and industrial PCB with carbon-on-gold key switch technology with 1.50mm key stroke with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN+Clean key for easy cleaning via locking/disable the whole keyboard without needing to take away the keyboard from PC, movable stand alone desk top version, adjustable industrial backlight optional.
DIMENSIONS : 379.0mm x 140.0mm x 15.5mm (L x W x H)
| MECHANICAL DATA | |
| Key | 106 keys |
| Key top style | Protuberant rectangular keys with tactile feeling. |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than 5 million of operations. |
| G.W. | 1.00KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable length | Standard 2.0m, customized length available. |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) optional | |
| Protection Level | IP68 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
