Rugged Industrial Stainless Steel Keyboard 108 Keys For Outdoor
Rugged Industrial Stainless Steel Keyboard for Outdoor
DESCRIPTION FOR INDUSTRIAL STAINELESS STEEL KEYBOARD: 108 keys IP65 dynamic waterproof rugged industrial stainless steel keyboard, 12 function keys are on top line for easy operation, and individual numeric keypad is on the right part of keyboard, carbon-on-gold key switch technology with long stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium electroplated on the top stainless steel plate and keys, with sinking holes for top panel mounting solution. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without error output. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
INDUSTRIAL STAINELESS STEEL KEYBOARD DIMENSION: 430.0mm x 159.0mm (Top Panel)
| INDUSTRIAL STAINELESS STEEL KEYBOARD MECHANICAL DATA | |
| Keys | 108 keys |
| Switch Contact Material | Carbon-on-gold key switch technology |
| Key Top Style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| G.W. | 2.10KGs |
| INDUSTRIAL STAINELESS STEEL KEYBOARD ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB/PS2 available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating Temperature | -20℃ to +65℃ |
| Storage Temperature | -30℃ to +75℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline Mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| INDUSTRIAL STAINELESS STEEL KEYBOARD RELIABILITY | |
| RoHS Compliant, CE and FCC | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal Resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |

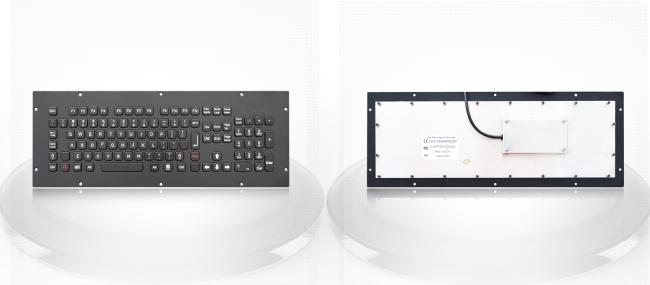

INDUSTRIAL STAINELESS STEEL KEYBOARD ACTUAL PHOTOS
