IPX6 Military Grade Ergonomic Trackball Mouse With 3 Buttons 34mm Optical Trackball Module
Ergonomic Trackball Mouse With 3 Buttons 34mm Optical Trackball Module Of IPX6 Military Grade

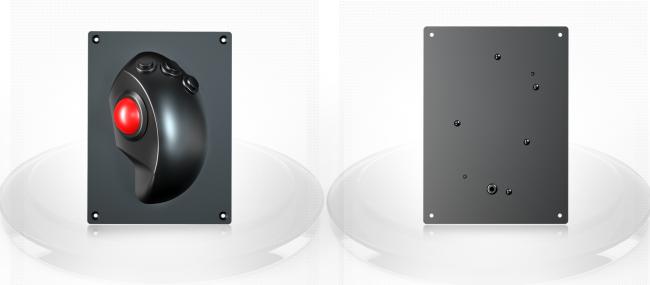

DESCRIPTION: IPX6 rated ergonomic thumb ball with 3 mouse buttons for right/left clicking, as well as middle key, integrated with a 34mm optical trackball module with 800~2400 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, the DPI can be automatically adjusted before ex-factory and switched by sensing the moving speed of the trackball to meet requirements. With fully sealed and CNC aluminum rugged back plate, oxidized painting surface treatment to be wear-resistant, antibacterial, and anti-salt spray etc. With four sinking holes for top panel mounting solution. USB output or other customized connector upon request. Designed to meet MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), with strong anti-interference and low radiation ability. Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSION: 129.0mm x 172.0mm x 44.3mm (L x W x H)
| MECHANICAL DATA | |
| Keys | 3 keys |
| Key switch | Micro switch technology |
| Key Travel | 1.20mm±0.10mm |
| Actuation Force | 2.5N±0.2N |
| Trackball | 34mm ergonomic handheld optical thumb ball |
| G.W. | ≈0.80KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 80mA |
| EMC Standard | EN 55032:2015, EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Protection Level | IPX6 |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
