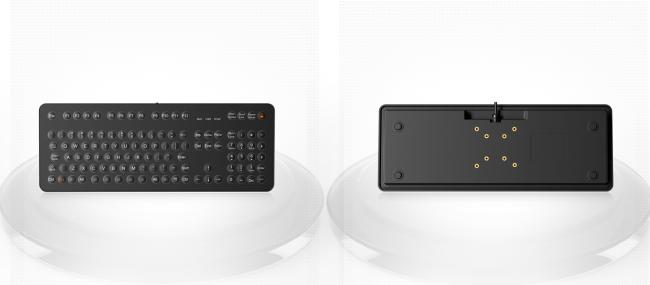

IP68 Industrial Membrane Keyboard With OMRON Key Technology Chemical And Liquid Resistant
IP68 Industrial Membrane Keyboard With OMRON Key Technology Chemical And Liquid Resistant
Description For Industrial Membrane Keyboard: 107 keys compact format IP68 rated membrane industrial keyboard, with numeric keypad and function keys on the upper line, totally sealed and ruggedized industrial PCB with super quality OMRON switch technology with short stroke 0.45±0.05mm with extremely good tactile feeling for reliable data input, with FN + Lock combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, VESA mountable desk top version with robust ABS polycarbonate case.
DIMENSIONS: 401.0mm x 150.8mm x (21.1mm - 35.5mm) (L x W x H)
| MECHANICAL DATA | |
| Number of Keys | 107 keys |
| Key switch Technology | OMRON switch technology with short stroke 0.45mm for stable and accurate data input |
| Actuation Force | 2.0N±0.2N (press point) |
| Key Travel | 0.45±0.05mm |
| Key switch Lifetime | 1 mil. operations |
| Mounting Type | Mountable desktop solution |
| Colors | Black |
| G.W. | 1.40KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC | |
| Protection Level | IP68 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
