Embedded Silicone Industrial Keyboard With Blue Trackpoint And Carbon-On-Gold Switches

Price Negotiable
Price: To be quoted
MOQ: 1pc
Delivery Time: ASAP Within 2-3 weeks upon payment confirmed
Brand: IKB-MKB
Product Description

Embedded Silicone Industrial Keyboard with Blue Trackpoint and Carbon-on-Gold Switches



DESCRIPTION FOR SILICONE IRUGGED KEYBOARD: 87 keys IP65 dynamic sealed and durable embedded silicone rubber rugged keyboard with built-in military grade PCB, with a small blue Trackpoint, it can accurately sense the pressure direction and pressure changes of the finger, thereby accurately control the movement direction and speed of the X and Y directions, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, rear panel mounted, with a reinforced and rugged metal back plate for better shielding function and positioning of the rugged cable outlet. Adjustable white backlight included. Built to meet MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSIONS: 270.0mm x 113.0mm (Front panel)





MECHANICAL DATA
Keys 87 keys
Switch Contact Material Carbon-on-gold key switch technology
Key Top Style Protuberant rectangular keys with tactile feeling
Key Travel 1.50mm±0.10mm
Actuation Force 1.5N±0.2N (pressure point )
G.W. 0.80KGs
ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 30mA when backlight is off, 300mA with backlight on
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Interface USB
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating Temperature -40℃ to +75℃
Storage Temperature -45℃ to +85℃
Operating RH 3%~95%
Atmospheric Pressure 60-106Kpa
Saline Mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
Protection Level IP65 dynamic (front panel)
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
APPLICATION Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

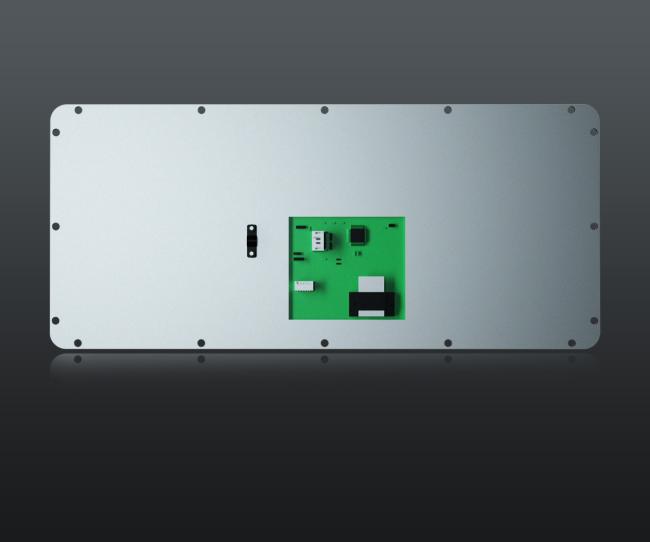

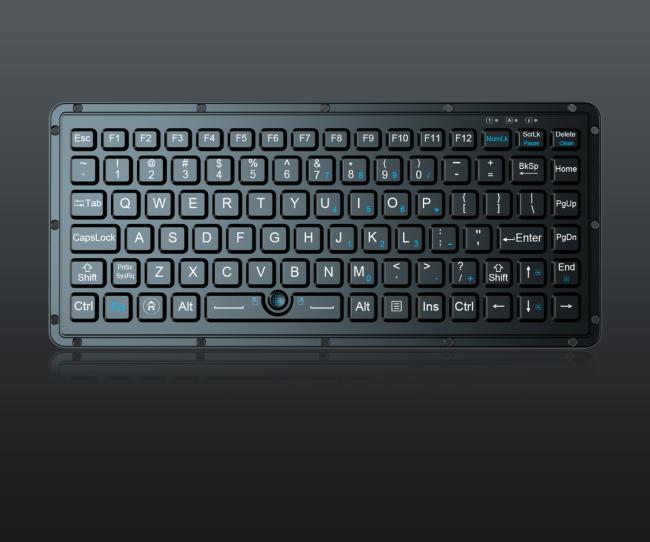

SILICONE IRUGGED KEYBOARD ACTUAL PHOTOS
