ITEM

SPECIFICATION

Mechanical

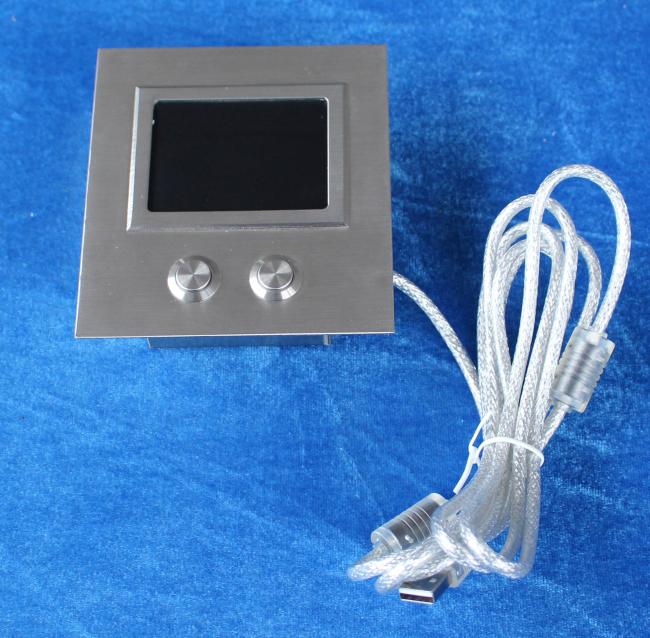

Front Plate

Quality brushed stainless steel

Touchpad thickness

1.3 mm PCB thickness inclusive of mylar layer

Validatedtouch width

46.50mm (max)

Validated touch length

62.50mm (max)

Mounting Rack

top stainless steel plate with mounting screw bolts

Back Metal Cover

Rear side integrated electronics protected by a metal cover

Touchpad lifespan

> 10 Mio times

Dimensions

Touchpad: 65.0mm x 49.0mm;

Front Mounting Panel: 107.0mmx120.0mm (front panel),

Interface

PS2 and USB both available

Electrical

Power supply

5V DC+ 10%,

Work current

4.0 mA (normal)

X/Y position sensing resolution:

1000 points/inch (40 points/mm)

X/Y position reporting:

Relative

Tracking speed:

Maximum 1,016 m/sec

Protection level:

IP65 dynamic (front panel)

Static Release:

15 KV (front panel)

EMC Standard:

EN55022(B)

Environmental

Operating temperature:

-20°C to +60°C

Storage temperature:

- 40°C to + 70°C

Operating RH:

10%-95%

Atmospheric pressure:

60-106Kpa

Reliability

MTBF

>50000H

MTTR

< 30min

Touchpad Lifespan

>10 million actuations

OS

OS is under All windows, Linux, Unix, Mac OS9 / OSX

Packing Details

Each unit to a suitable inner box, suitable inner boxes to a standard export carton.
