Mini 15 key panel mount keyboard with trackball for medical , diagnostic equipment

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: ASAP Within 2 weeks upon payment confirmed

Brand: IKB-MKB

Product Description

mini 15 key silicone rubber panel mount keyboard with 38 mm optical trackball

Special Features:

15 Keys IP65 sealed & Ruggedized Industrial Silicone Rubber Numeric keypad with integrated

sealed IP68 dynamic 25.0mm dynamic washable optical trackball module with 800 DPI for fast

and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with

long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without

any noise, with top panel mounting solution. Backlight optional, military level optional.

APPLICATIONS:

MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms,

dialysis centers etc;

MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc

MILITARY: Army, Navy, Air force

INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage,

clean or dirty manufacturing environments, warehouses

Other industrial

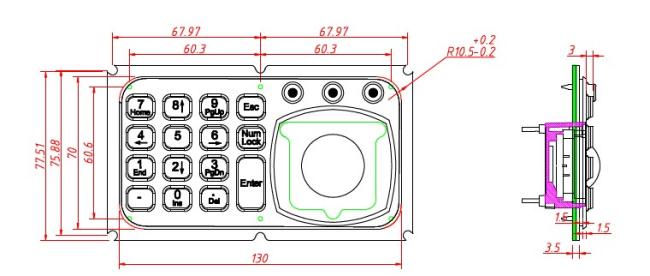

MECHANICAL DATA:

ELECTRICAL DATA:

Supply Voltage	+5V DC +/-5%
Current Rating	50mA (non-backlight) , 120mA (with backlight on)
Power	0.25W (non-backlight), 0.60W (with backlight on)
EMC Standard	It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004
EMI	EN 55022: 2010
EMS	EN 55024:2010
Lifespan	> 3 years
Switch Contact Material	Carbon-on-Gold key switch technology with gold PCB
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
