Black Industrial Trackball Pointing Device / kiosk trackball abrasion - resistant
P65 dynamic rated vandal proof industrial metal industrial trackball poting device with USB interface
MODEL NO.: K-TEK-A107-38-OTB
DESCRIPTION:
IP65 dynamic rated Vandal proof Stainless Steel industrial Trackball withIP68 dynamic rated washable 38.0mm stainless steel optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, laser trackball module protected and shielded by stainless steel housing, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, stainless steel top plate with threaded bolts for top panel mounting solution.
DIMENSIONS: 107.0mm x 120.0mm (top panel)
MAIN FEATURE:
1. Any customized layout and keycode warmly accept.
2.Mechnical trackball, Optical trackball, Laser trackball optional.
3.Made of abrasion-resistant stainless steel
4.Designed to operate in harsh environments, ideal for web payphones, kiosks and other demanding applications
5.Dust-proof and liquid-proof, IP65 compliance
6.Compatible with OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX
7.Plug and Play PS/2 or USB interface
8.Top panel mounting Version
9. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast
10.Teflon Ball Shields are available for dirt and water protection in harsh environments.
Specifications:
| MECHANICAL DATA | Switching material: Carbon-on-Gold Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) Key Travel: 2.0mm Lettering: laser engraving, or raised letters. Front panel: brushed stainless steel Actuator/keys materials: brushed stainless steel Dimensions: 110.0mm x 80.0mm (top panel) G.W. 0.8KGs |
ELECTRICAL DATA |
Power supply voltage: 5V DC. Power Consumption: Under 30mA for operation Electrical lifetime: > 5 years EMC:EN55022(B) Communication interface: PS2, USB or RS232 are all available. |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature:-20°C to +60°C Storage temperature: -30°C to +70°C Operating RH: 30-90% Atmospheric pressure: 60-106Kpa. |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD Protection Level: IP65(front panel) Vandal resistant IK09 Key Lifespan >10 million actuations . MTBF >50000H. MTTR <30min. |

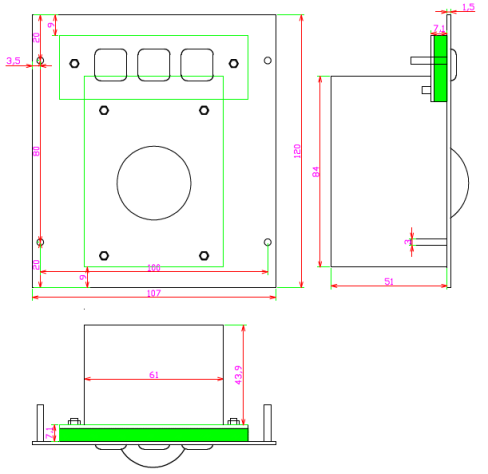

Mechanical Drawing:

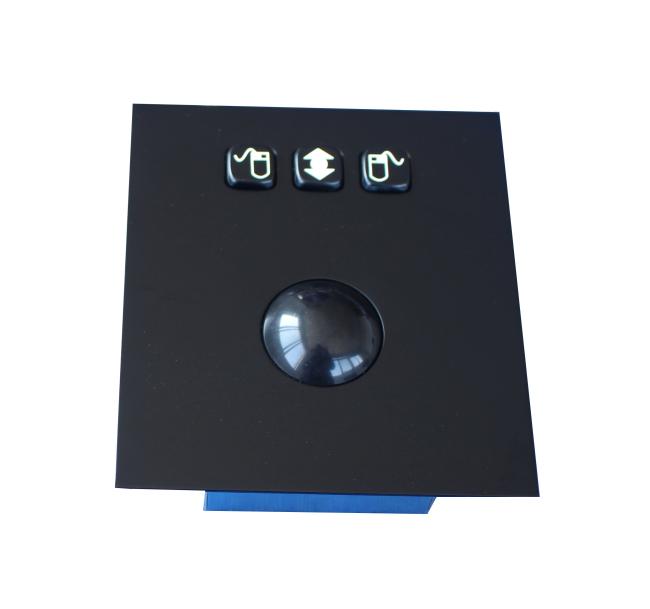

Actual pictures:
