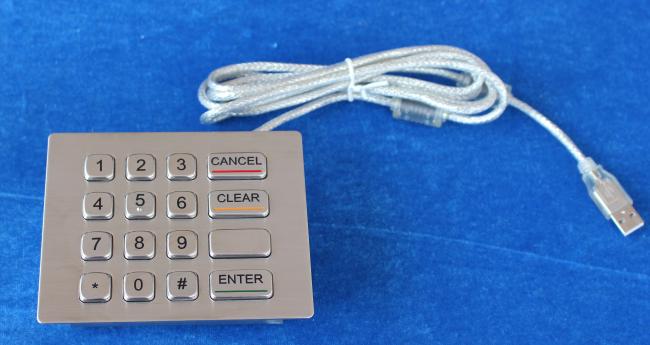

2mm long stroke metal stainless steel vending machine keypad for gas stations
16 keys metal stainless steel keypad with protuberant keys for vending machine
https://www.youtube.com/watch?v=e7C21ECU7Bw
Main Details:
1. Any customized free layout and keycode design
2. Plug and play USB or PS/2 interface keypad
3. Support OS: All windows, Linux, Unix, Mac OSX etc system.
4. Dimensions:120.0mm x 98.0mm (L x W )
5. Dynamic waterproof keypad for outdoor application available
6. IP65 waterproof industrial metal keypad
7. 16 keys compact format IP65 dynamic vandal proof Stainless Steel industrial numeric keypad
Applications:
This industrial keypad is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
|
MECHANICAL DATA |
|
|
Actuator/keys |
16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel |
|
Switching material |
carbon-on-Gold key switch technology PCB |
|
Actuation Force |
0.6 N+/-0.1N (pressure point) |
|
Key travel |
2.00mm |
|
Lettering |
laser engraving, or raised letters |
|
Front plate |
Super quality SUS304 brushed stainless steel |
|

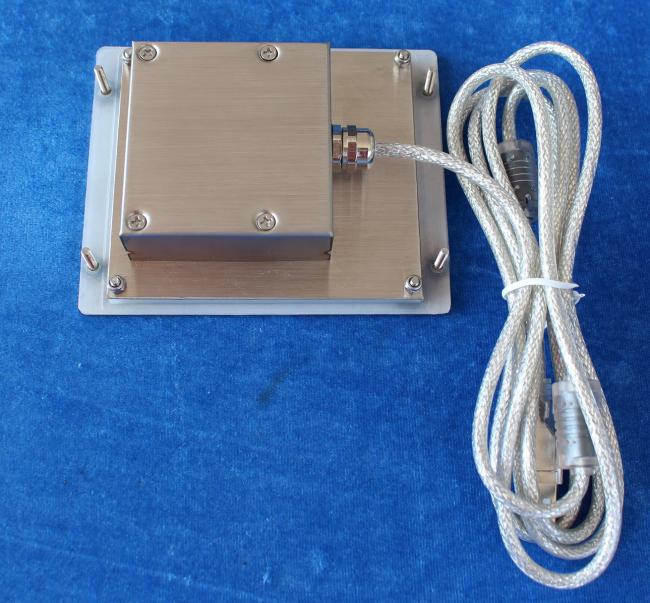

Back plate |
Super quality SUS304 brushed stainless steel |
|
Actuator/keys materials |
stainless steel. |
|
Dimensions |
120.0mm x 98.0mm (L x W ) |
|
G.W. |
0.8KG. |
|
Key top style |
Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
|
Key Size |
14.0mm x 14.0mm for normal keys;14.0mm x 28.0mm for function keys |
|
Switch life |
more than 5 million of operation |
